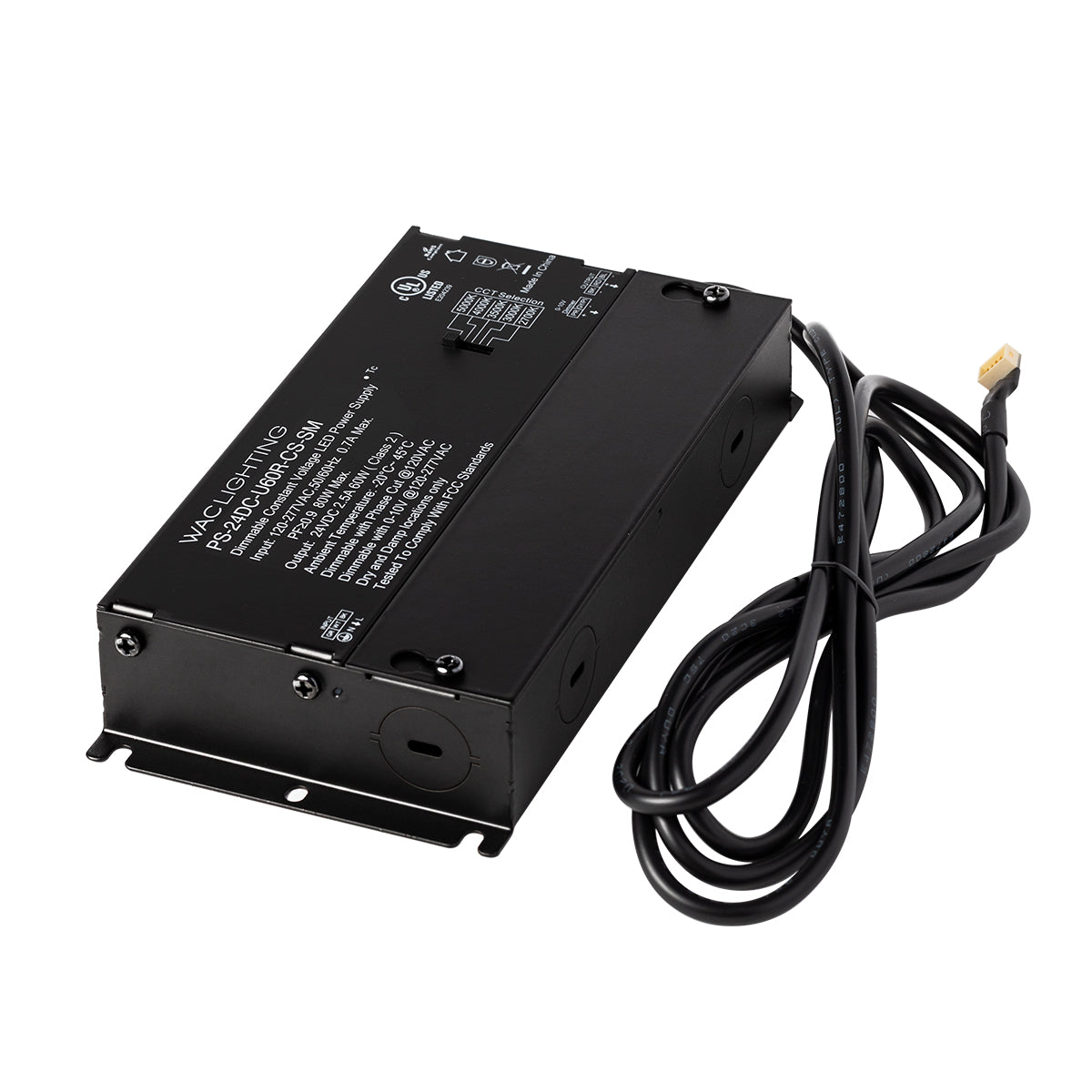

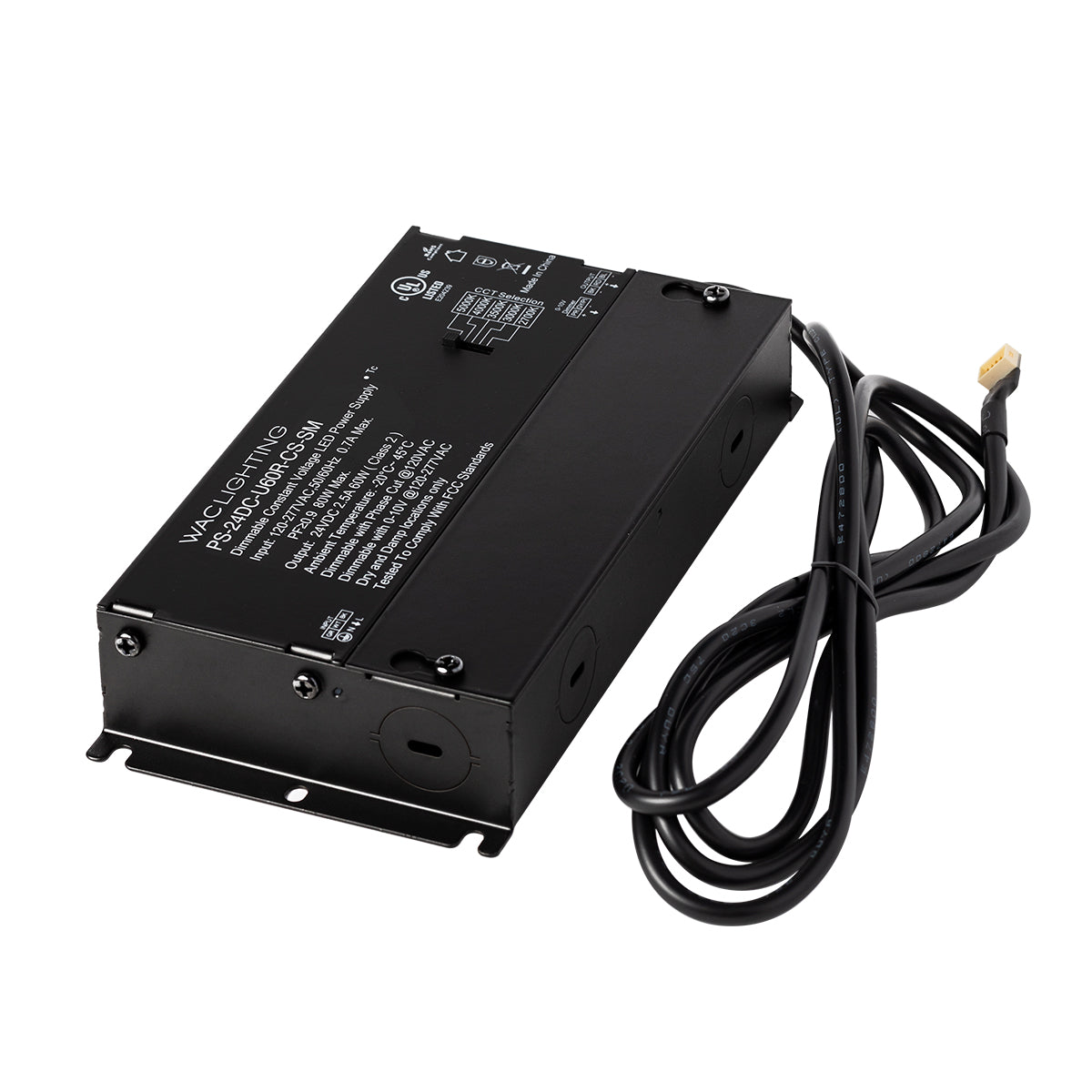

Wac Lighting PS-24DC-U60R-CS-SM InvisiLED / Pixels CCT Remote Power Supply 60W 120-277VAC/24VDC

Product Description

The WAC LIGHTING PS-24DC-U60R-CS-SM is a 60W InvisiLED / Pixels CCT Remote Power Supply designed for 120-277VAC input and 24VDC output. It offers ELV and 0-10V dimming from 100-1% and features overload and short circuit protection, ensuring reliable operation. This Class 2 output power supply is FCC Part 15 Class B Compliant and can be mounted on ceilings or walls in all orientations.

• Input: 120-277 VAC, 50/60Hz for universal compatibility
• ELV and 0-10V dimming control with a 1-100% range
• Integrated overload and short circuit protection for enhanced safety

Product Highlights

Universal input power supply with CCT selection and flexible mounting options for various lighting applications.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: PS-24DC-U60R-CS-SM

Technical Specifications

• Order Number: PS-24DC-U60R-CS-SM
• Input Voltage: 120-277 VAC
• Frequency: 50/60Hz
• Output Voltage: 24VDC
• Power: 60W
• Dimming Type: ELV, 0-10V
• Dimming Range: 1-100%
• Rated Life: 50000 Hours
• Power Factor: ≥ 0.9
• Protection: Overload, Short Circuit
• CCT Selection: Yes
• Output Class: Class 2
• Certifications: FCC Part 15 Class B
• Mounting: Ceiling, Wall (all orientations)
