Wac Lighting LEDTCWIC240WT Invisiled Joiner Cable 20 Ft

Product Description

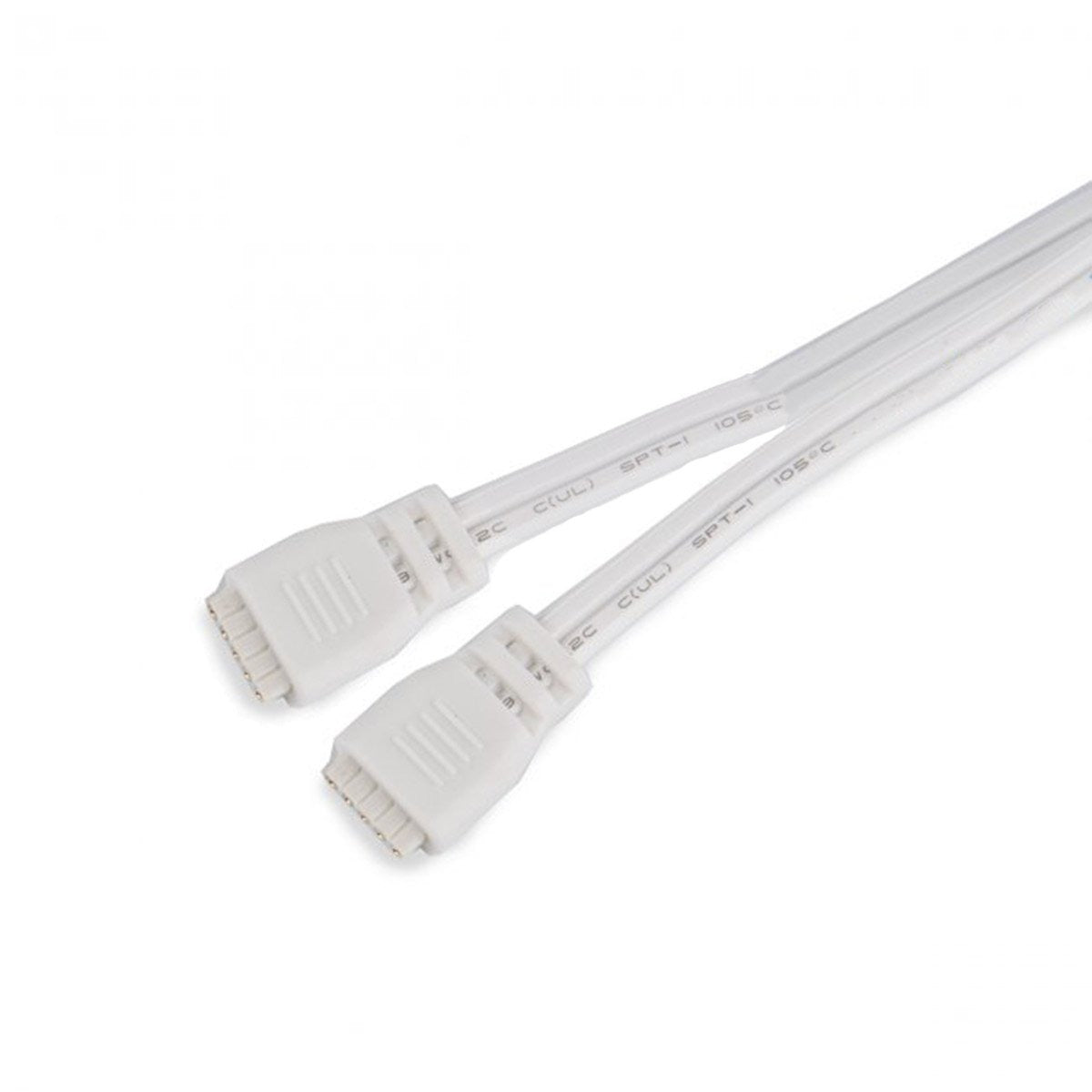

The WAC LIGHTING LEDTCWIC240WT is a 20-foot wall-rated joiner cable designed to connect two sections of InvisiLED 24V tape light in a single continuous run. The cable features a 5-pin female connector on one end and a 5-pin male connector on the other, allowing technicians to extend or reposition tape light segments without soldering or custom wiring. At 0.51 inches wide and 0.12 inches thick, the low-profile construction tucks cleanly behind drywall or into tight channels. NEC-rated for in-wall installation and UL and CUL listed for damp locations, this cable meets the code requirements that electricians and low-voltage lighting installers encounter on commercial and residential jobs alike.

This joiner cable is built for use with WAC Lighting InvisiLED 24V tape light systems, including InvisiLED Lite, Pro, Pro II, Pro III, and RGB color-changing task and cove tape light. It is suited to residential cove lighting, under-cabinet task lighting, and commercial accent installations where tape light sections must be routed through walls or around corners. The 20-foot length provides flexibility when laying out longer runs, and the cable is also available in a 12-foot version for tighter layouts. Note that total run length from the transformer to the end of the run must not exceed 30 feet to stay within acceptable voltage drop limits.

Key Features

• 5-pin female to 5-pin male connector configuration joins two InvisiLED 24V tape light sections
• NEC-rated for installation behind a wall, supporting clean in-wall cable routing
• UL and CUL listed for damp location use
• 20-foot cable length allows flexible tape light layout customization
• Low-profile cross-section of 0.51 inches wide by 0.12 inches thick fits narrow channels and raceways
• Maximum transformer-to-end-of-run distance of 30 feet helps manage voltage drop on 24V systems

Compatibility

Designed for use with WAC Lighting InvisiLED 24V tape light, including InvisiLED Lite, Pro, Pro II, Pro III, and RGB color-changing task and cove tape light configurations.

Installation Notes

Installation should be performed by a licensed electrician or qualified low-voltage lighting technician familiar with NEC requirements for in-wall wiring. De-energize the transformer and confirm the circuit is off before connecting or disconnecting any tape light segments or joiner cables. Do not exceed the 30-foot total run length from transformer to end of run, as longer runs will cause unacceptable voltage drop on 24V systems. Verify that all connectors are fully seated before restoring power to the system.
