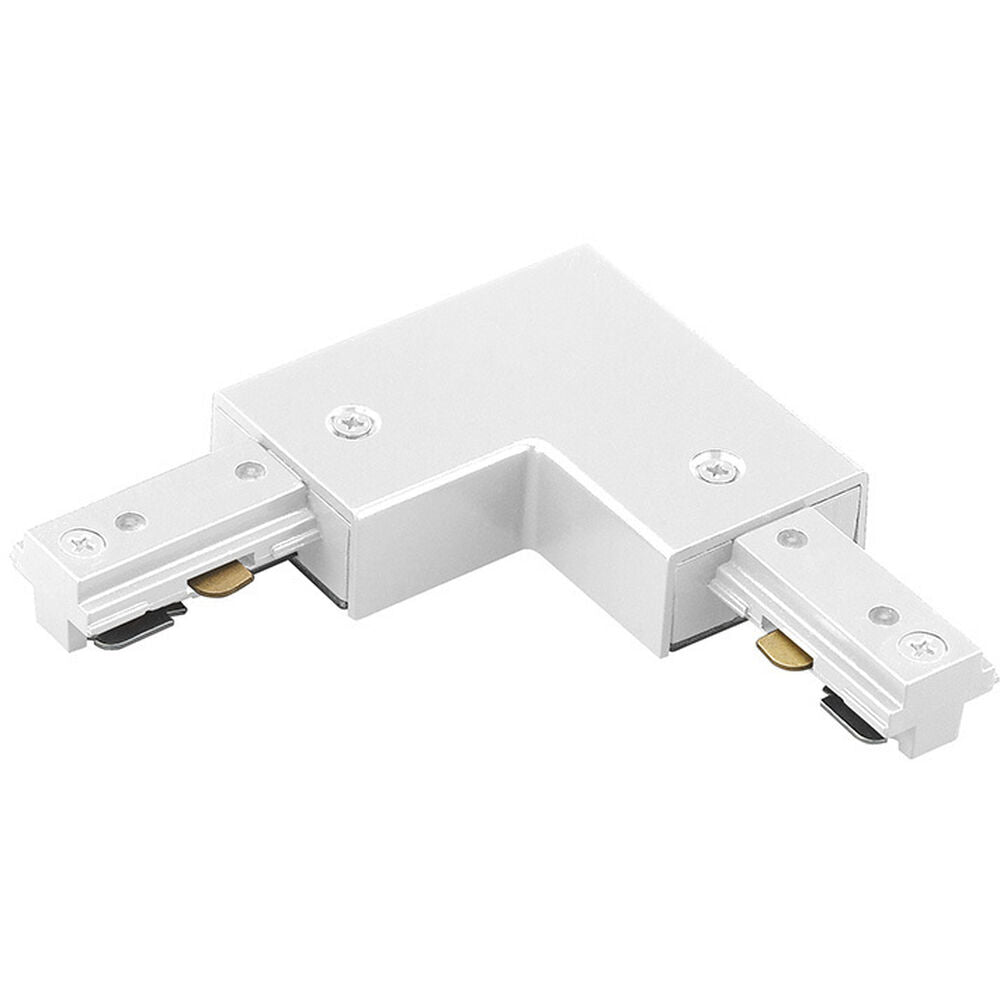

Wac Lighting JL-RIGHT-WT J-Track Right L Connector 120V (90 Degree Right)

Product Description

Wac Lighting JL-RIGHT-WT is a J-Track right L connector designed to join J-Track sections and provide a power-feedable 90 degree right-hand polarity turn for 120V single-circuit track systems. The connector supports standard J-Series fixtures, installs at track junctions to continue power, and includes an instruction manual. Dimensions are approximately 4.25 in by 4.25 in with a 0.75 in height and the product is UL listed.

• Joins two J-Track sections to form a power-feedable 90 degree right-hand polarity turn
• Input: 120 VAC, 50/60 Hz; compatible with single-circuit J Track systems; power/circuit: 1920W max, rated 20A
• Compact footprint (4.25 in x 4.25 in x 0.75 in); UL listed; includes instruction manual

Product Highlights

Right L-connector for 120V J Track systems; power-feedable 90 degree right polarity; 4.25 x 4.25 x 0.75 in footprint; UL listed.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: JL-RIGHT-WT
• Country of Origin: China

Technical Specifications

• Brand: Wac Lighting
• Manufacturer Part Number: JL-RIGHT-WT
• Model: JL-RIGHT-WT
• Product Type: J-Track Right L Connector
• Function: Join two track sections to create a power-feedable 90 degree right-hand polarity turn
• Compatible System: J Track 120V single circuit track sections; compatible with J-Series fixtures
• Input Voltage: 120 VAC, 50/60 Hz
• Power/Circuit: 1920W max per circuit, rated 20A max (see notes)
• Mounting Type: Ceiling mount / J-Track
• Dimensions: 4.25 in L x 4.25 in W x 0.75 in H
• Weight: 0.13 lbs (2.08 ounces)
• Material: Other
• Finish: White
• Certifications: UL listed
• UL Ratings: UL/cUL listed for dry locations
• Included Components: Instruction manual
• UPC: 790576059310
• GTIN: 00790576059310
• Country of Origin: China
