Wac Lighting HR-LED90-30-BN Edge 1-Light LED Under Cabinet Lighting 5W 3 inch

Product Description

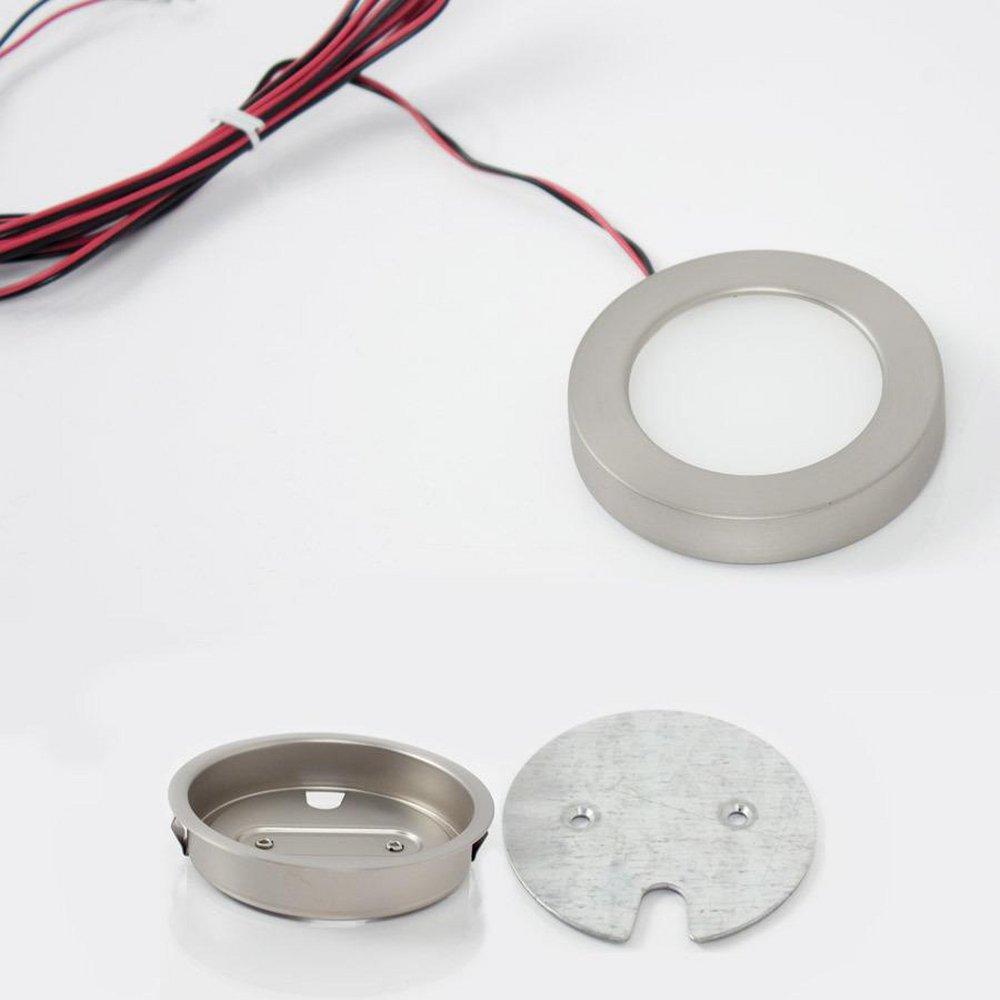

The WAC LIGHTING HR-LED90-30-BN is an Edge 5W 1-Light LED Under Cabinet Lighting fixture designed for versatile installation. This 5-watt LED light can be recessed or surface mounted, offering flexibility for various applications. It features a durable die-cast aluminum fixture and stamped steel housing. The unit includes a 72-inch pre-installed lead wire and operates on 24V, compatible with remote and plug-in transformers (sold separately). It supports smooth and continuous dimming down to 5% with electronic low voltage (ELV) dimmers.

• Allows up to 10 button lights to be wired together using 24V remote and plug-in transformers (Sold Separately).
• Can be recessed or surface mounted with all hardware included.
• ETL and cETL Listed, Energy Star Rated, CEC Title 24 Compliant.

Product Highlights

This Edge LED button light offers flexible mounting, energy efficiency, and dimmable functionality for under cabinet illumination.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: HR-LED90-30-BN
• Country of Origin: China

Technical Specifications

• MPN: HR-LED90-30-BN
• Part Number: WHRLED9030BN
• Item Number: 7254564
• Color Temperature: 2700K or 3000K
• Rated Hours: 100,000
• Power: 5 watts
• Standards: ETL and cETL Listed, Energy Star Rated, CEC Title 24 Compliant
• Recessed Cutout: 3.25 inches
• Material: Die-cast aluminum fixture, stamped steel housing
• Lead Wire Length: 72 inches
• Dimming: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) dimmer. Compatible with LUTRON DVELV-300 and SELV-300 (ELV) dimmers.
• Category: Led Recessed Architectural & Specification Lighting
• Manufacturer: WAC Lighting
• Sub-Category: Lighting Fixture
• UNSPSC: 39111544
• UPC: 790576345468
• Unique Product Key: 6364230
• Comm Code Enhanced: 72521
• Brand Category: Puck Light
• Color Rendering Index: 90
• Dimmable: Yes
• Lamping Type: LED
• Lamping Included: Bulbs Included
• Lumens: 200
• Primary Number of Bulbs: 1
• Total Number of Bulbs: 1
• Operating Voltage: 24V
• Wattage Max: 5.00
• Country of Origin: China
• Location Rating: Suitable for Damp Locations
• Glass Features: White Diffuser Glass
• Finish: Brushed Nickel
• Color: White Glass
• Dimmer Type: Low Voltage Electronic
• Bulb Type: 1 x LED/5W/24V LED Integrated LED module
• Lumens per Watt: 40.00
• Power Source: Hardwired
