Product Description

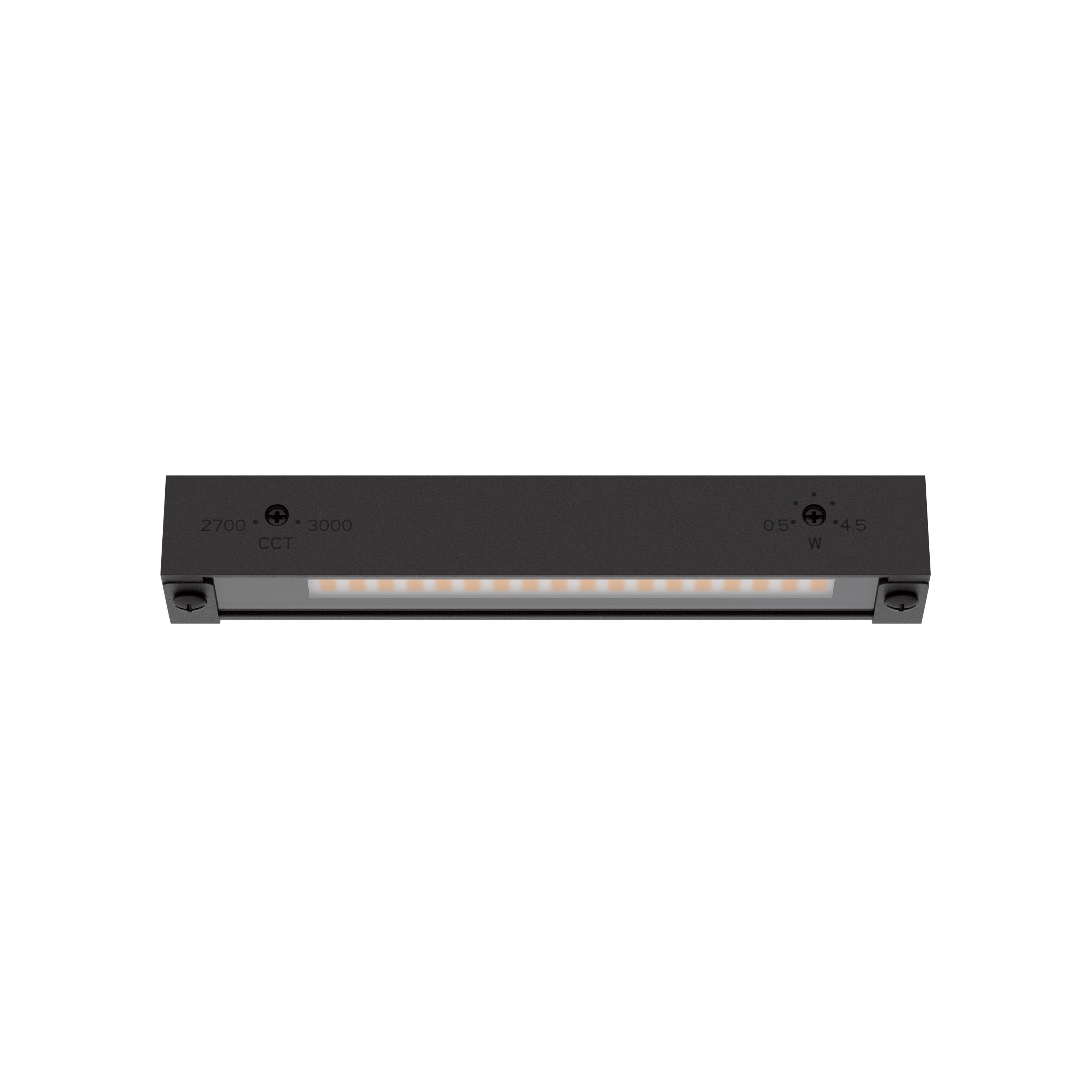

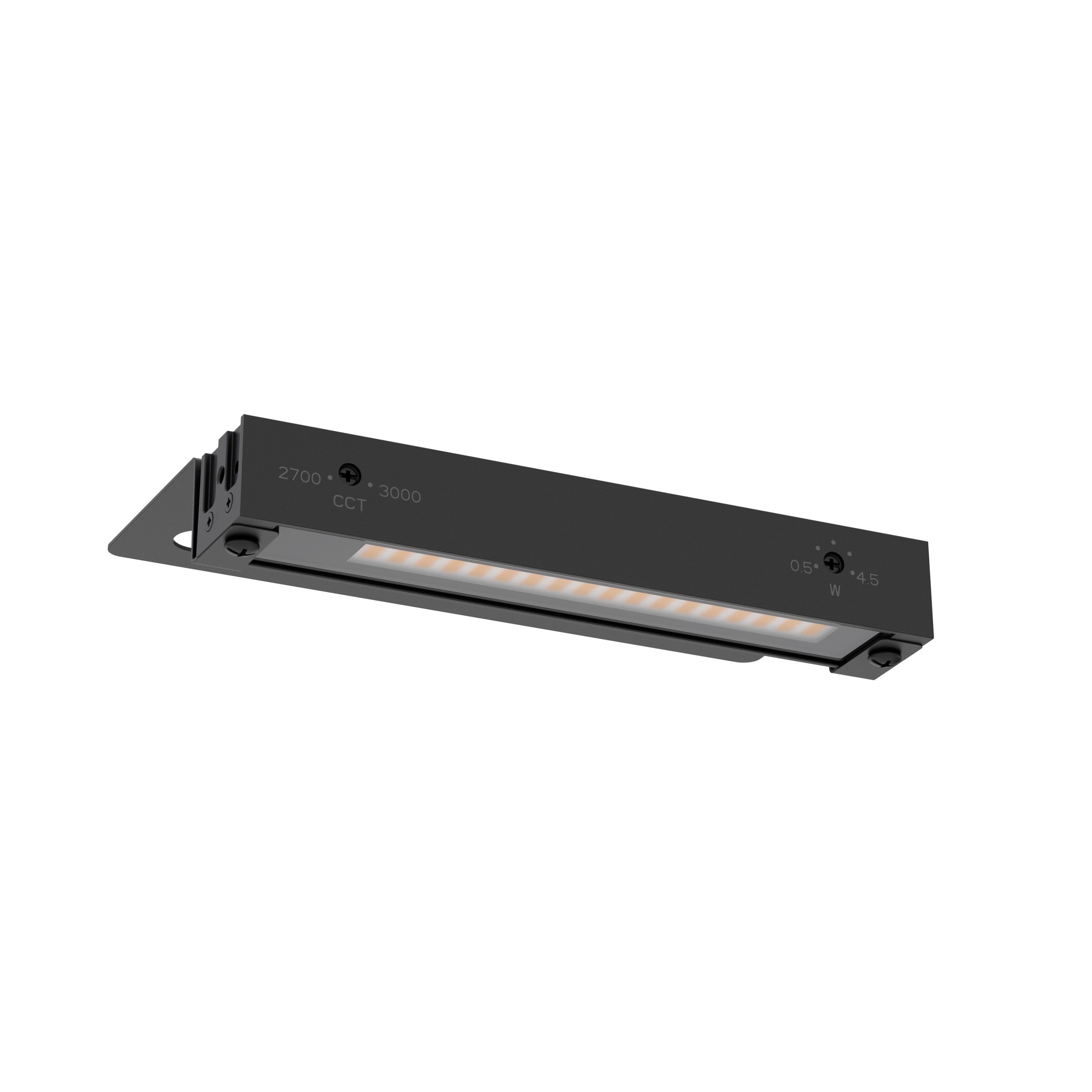

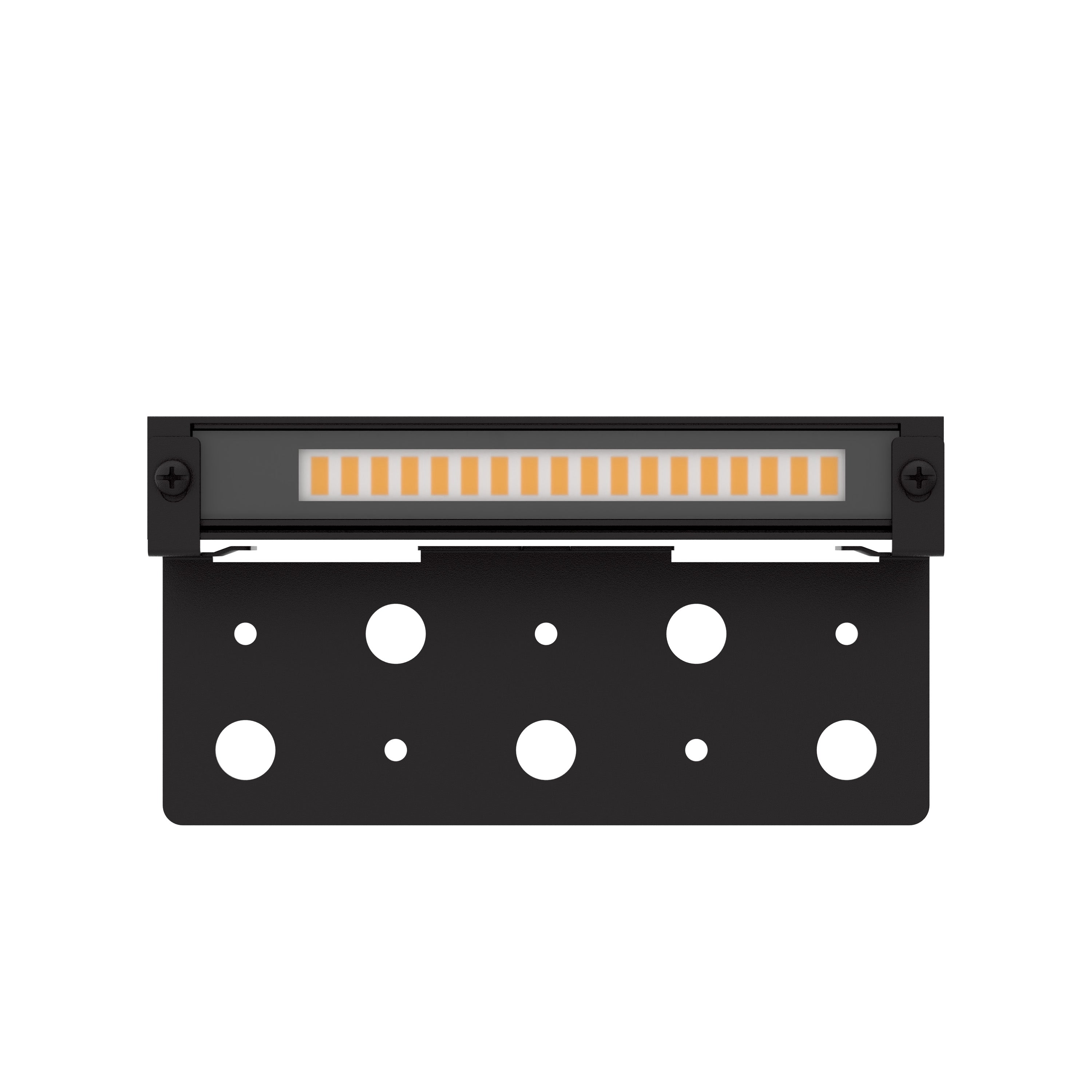

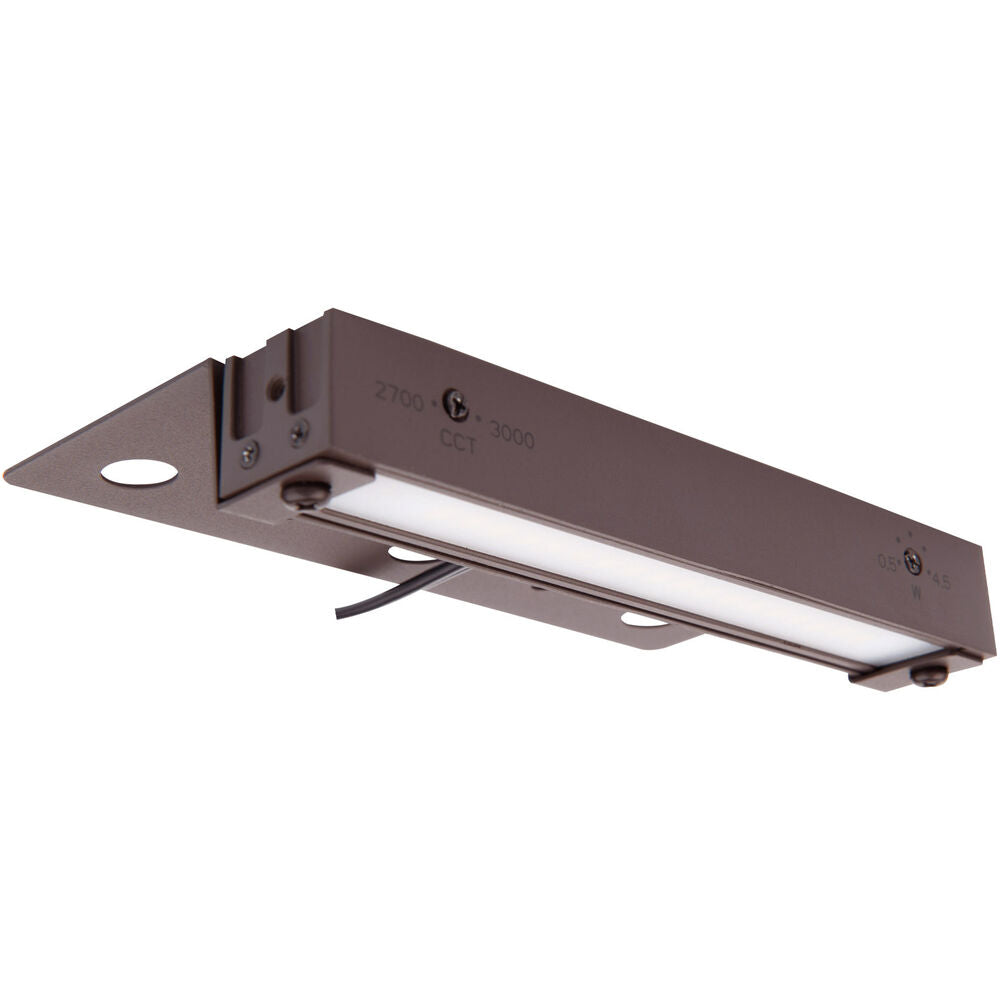

The WAC LIGHTING 7062-27/30BZ is a hardscape quick connect luminaire with dual CCT. This low-profile lighting solution is ideal for grazing walls, decks, patios, handrails, and fences. It features a quick-release connection for easy detachment after installation and an integral brightness control to select color temperature. It can be mounted on a wall in all orientations.
- Features integral brightness control with dual CCT select (2700K or 3000K) color temperature option
- Offers a quick release connection to easily detach from capstone bracket after installation
- Factory sealed and watertight with an IP66 rating for protection against high-pressure water jets and outdoor elements
Product Highlights
This hardscape light provides a convenient and durable lighting solution for various outdoor applications with its adjustable color temperature and easy installation.
Product Information
Standard Information
-
Brand: WAC LIGHTING
-
Manufacturer Part Number: 7062-27/30BZ
-
Country of Origin: China
Technical Specifications
-

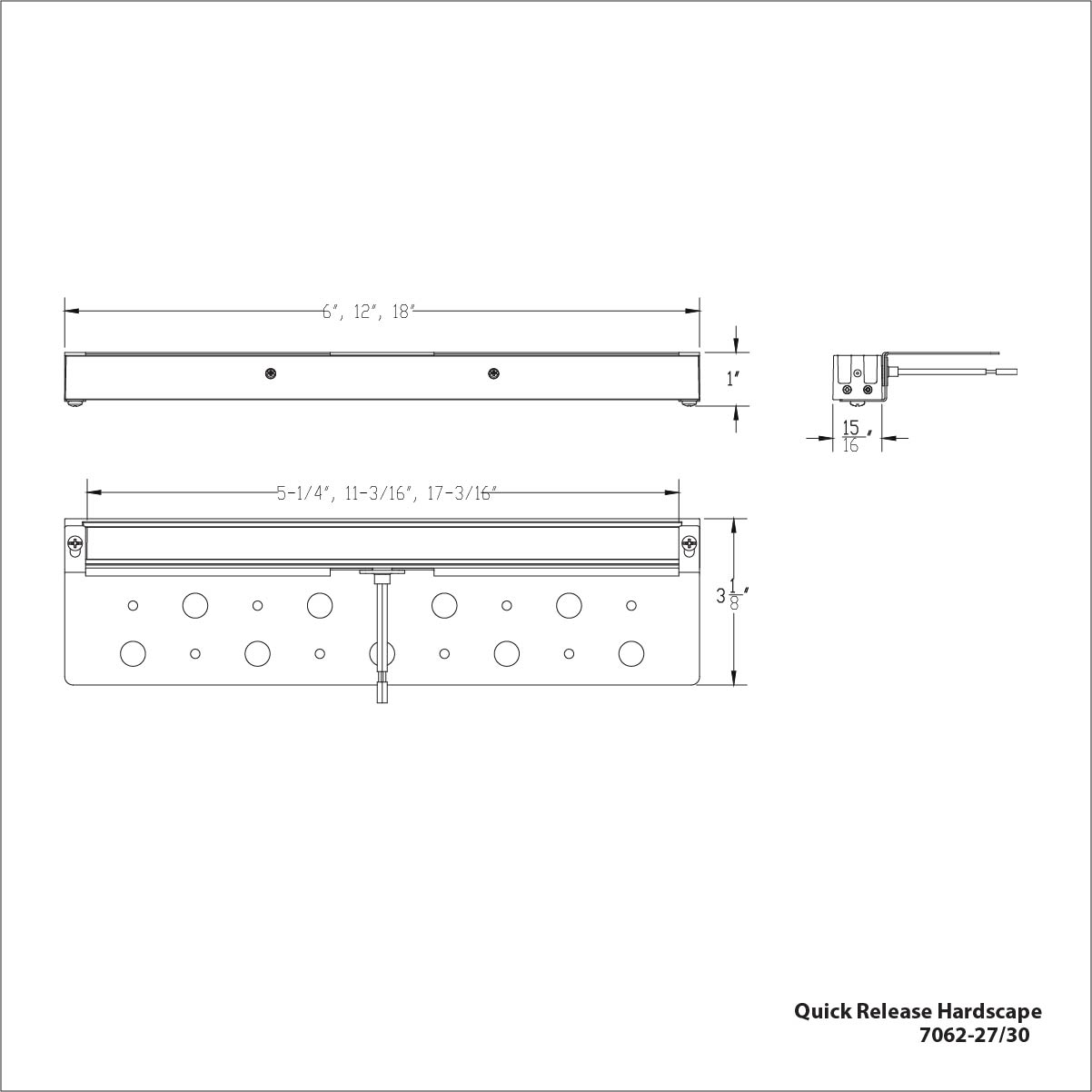

model & size: 7062 - 6"
-
color temp & cri: 27/30 - 2700K/3000K - 85
-
watt: 4.5W
-
lumens: 110
-
finish: BBR - Bronze on Brass
-
CRI: 85
-
Power: 4.5W, 7.0W, 8.5W
-
Input: 9-15 VAC, 50/60Hz
-
Rated Life: 50000 Hours
-
Construction: Corrosion resistant aluminum alloy
-
Mounting: Can be mounted on wall in all orientations
-
Lamp Type: Integrated LED
-
Lamp Wattage: 4.5 Watt
-
Lamp/Ballast Voltage: 12 Volt
-
Material: K-Alloy Aluminum
-
Beam Spread: 110 Degree
-
Color Temperature: 2700/3000 Kelvin
-
Color Rendering Index: 85
-
Lamp Intensity: 110 Lumen
-
Lamp Life Span: 50000 Hour
-
Enclosure Type: IP66
-
Temperature Rating: -40 to 122 Deg F
-
Brand: WAC Lighting
-
Brand Category: Hardscape Lighting
-
Brand Product Description: Hardscape LED 12V Strip Light
-
Dimmable: Yes
-
Lamping Category: LED
-
Lamping Features: Bulb Shape: LED
-
Average Hours: 50000
-
Lamping Included: Bulbs Included
-
Lamping Type: LED - Transformer
-
Lead Wire Length: 36
-
Primary Number of Bulbs: 1
-
Total Number of Bulbs: 1
-
Total Watts: 4.5
-
Voltage: 12
-
Wattage Max: 4.50
-
Backplate/Canopy Extension: 0.58
-
Backplate/Canopy Height: 6
-
Backplate/Canopy Width: 3.13
-
Extension: 5.23
-
Height: 1
-
Length: 6
-
Width: 3.13
-
ADA: Yes
-
Country of Origin: China
-
Install Position: Can be mounted on wall in all orientations
-
Title 24: Yes
-
UL Ratings: UL, cUL, IP66 Wet
-
Interior/Exterior: Exterior
-
Hardwired or Portable: Hardwired
-
Accessory 1 Type: Power Supply
-
Glass Features: Frosted Glass Lens
-
Finish: Graphite
-
Dimmer: Low Voltage Magnetic
-
Materials: Polycarbonate, Brass, Aluminum
-
Lamp Source: LED
-
Bulb: 1 x LED/4.5W/12V LED Integrated LED module
-
Lamp Color: CCT Select
-
Color Rendering: 85 CRI
-
Lumens/Watt: 24.44
-
Lamp Life: 50000 hours
-
Style: 2-CCT 2700K and 3000K
-
Light fixture form: Path
-
Room Type: Garden, Lawn, Entrance, Pathway, Driveway
-
Specific Uses For Product: Landscaping
-
Indoor Outdoor Usage: Indoor, Outdoor
-
Power Source: DC
-
Other Special Features of the Product: Bright and long lasting, maintenance-free energy efficient lighting, Conveniently installs to most existing 12V landscape lighting systems, Integral brightness control, dims from max output to 20% using the onboard dimming switch, Works with an MLV dimmer (Sold Separately)
-
Control Method: Touch
-
Light Source: LED
-
Number of Light Sources: 1
-
Light Color: Warm White
-
Lighting Method: Adjustable
-
Wattage: 4.5 watts
-
Switch Type: Push Button
-
Water Resistance Level: Waterproof
-
Brightness: 130 Lumen
-
Efficiency: 28.89 lumens per watt
-
Mounting Type: Single Circuit
-
Fixture Type: Non Removable
-
Light Output Maximum: 130 Lumens
-
Recommended Uses For Product: Indoor and Outdoor Landscape Lighting, Wall Grazing, Stone Grazing
-
Installation Type: Under Capstone
-
Specification Met: CSA, Energy Star, Title 24, UL, cUL
-
Required Assembly: Yes
