Product Description
The WAC LIGHTING 5811-CSBK Colorscaping accent light allows for installation growth, with each transformer supporting one or two legacy landscape lighting circuits in addition to Colorscaping fixtures. Each fixture can be individually or grouped controlled. The fixtures generate tens of thousands of different colors. Automations can be stored and recalled.
- Delivered Lumens: 570lm
- CCT: Color Changing
- CRI: 85
Product Highlights
The Colorscaping system creates dynamic, eye-catching vignettes with fully tunable landscape lighting. Each luminaire can be individually controlled or grouped from the myWAC iOS or Android App.
Product Information
Standard Information
-
Brand: WAC LIGHTING
-
Manufacturer Part Number: 5811-CSBK
-
Country of Origin: USA Assembled
Technical Specifications
-
Order Number: 5811-CSBBR
-
model & voltage: 5811 - 15VAC
-
color temp & cri: Color Changing - 85
-
lumens: 570
-
finish: BBR - Bronze on Brass
BK - Black on Aluminum
BZ - Bronze on Aluminum
-
Brand: WAC Lighting
-
Brand Category: Spot and Flood Lighting
-
Brand Product Description: WAC LED Colorscaping RGBWW Accent Spot Light
-
Color Rendering Index: 85
-
Dimmable: Yes
-
Lamping Category: LED
-
Lamping Features: Bulb Shape: LED
-
Delivered Lumens: 570lm
-
Average Hours: 50000
-
Lamping Included: Bulbs Included
-
Lamping Type: LED - Transformer
-
Lead Wire Length: 36
-
Primary Number of Bulbs: 1
-
Total Number of Bulbs: 1
-
Total Watts: 15
-
Voltage: 12
-
Wattage Max: 15.00
-

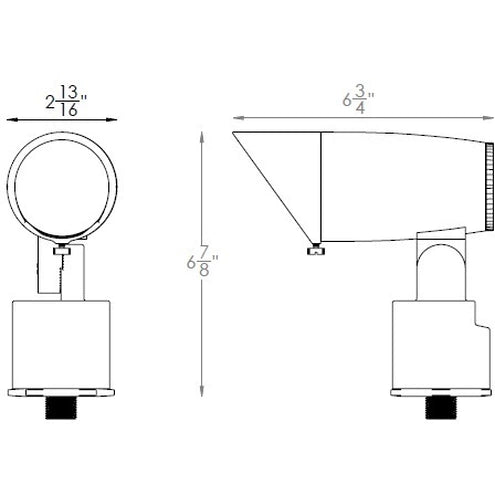

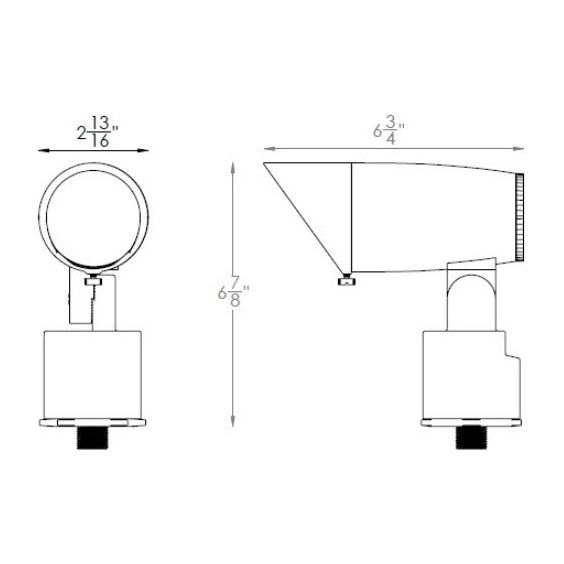

Height: 6.88
-
Length: 2.82
-
Width: 6.75
-
ADA: Yes
-
Title 24: Yes
-
UL Ratings: UL, cUL, IP66 Wet
-
Material: K-Alloy Aluminum
-
Brightness: White: 570 Red: 185 Green: 385 Blue: 90
-
Beam Angle: 20 to 60
-
Power: 15W
-
Input: 15VAC, 50/60Hz
-
Rated Life: 50000 Hours
-
Construction: Corrosion resistant aluminum and die-cast brass
-
Each fixture can be individually controlled: Each fixture can be individually controlled
-
Fixtures can be grouped and controlled together: Fixtures can be grouped and controlled together
-
Fixtures contain discrete, warm, and a cool white LEDs for full tunability: Fixtures contain discrete, warm, and a cool white LEDs for full tunability
-
Fixtures can generate tens of thousands of different colors: Fixtures can generate tens of thousands of different colors
-
Automations can be stored in recalled for holiday or other celebratory lighting scenes: Automations can be stored in recalled for holiday or other celebratory lighting scenes
-
Fixtures from multiple transformers can be controlled as a single group in the app: Fixtures from multiple transformers can be controlled as a single group in the app
-
Integrators can control the fixtures using industry standard DMX 512: Integrators can control the fixtures using industry standard DMX 512
-
The Colorscaping transformer allows for installation growth, each transformer, supports one or two legacy landscape, lighting, circuits in addition to the Colorscaping fixtures.: The Colorscaping transformer allows for installation growth, each transformer, supports one or two legacy landscape, lighting, circuits in addition to the Colorscaping fixtures.
-
Transformer required: Transformer required
-
Can be mounted on ceiling or wall in all orientations: Can be mounted on ceiling or wall in all orientations
-
Type: Directional - Accent Lighting
