Product Description

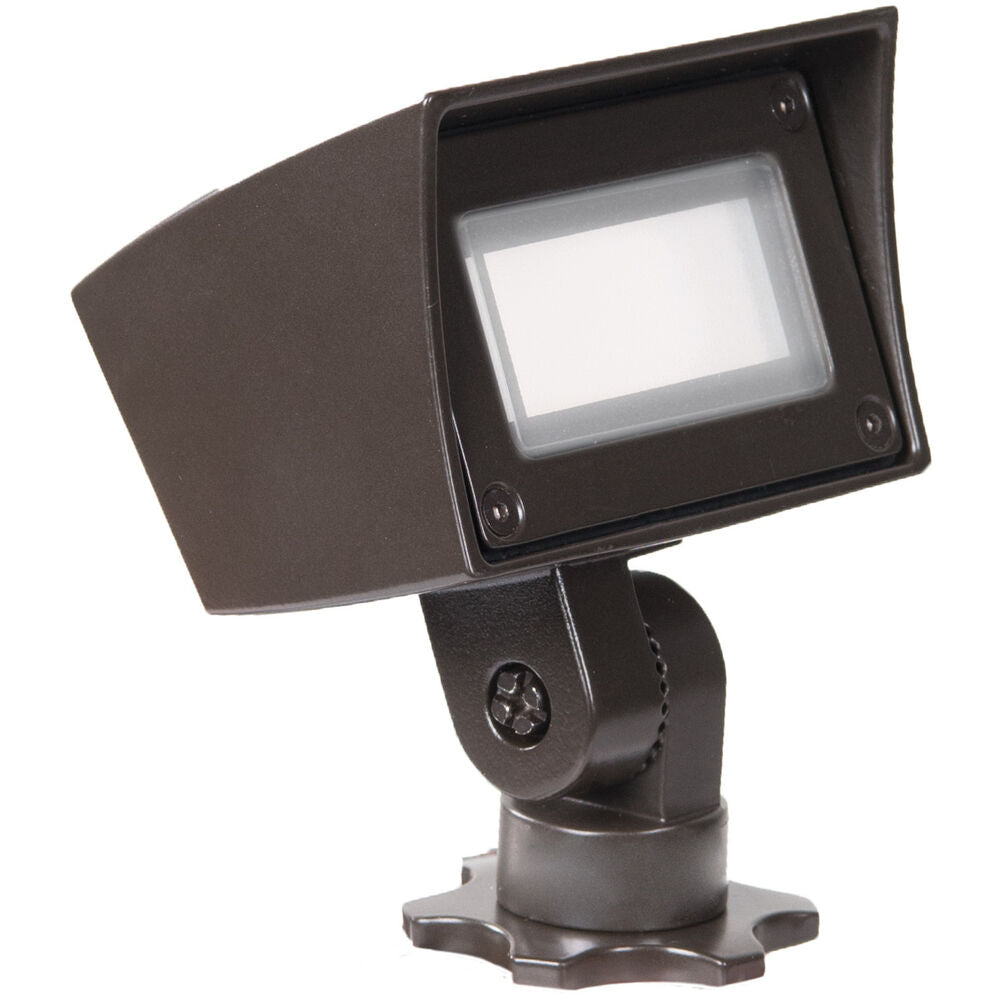

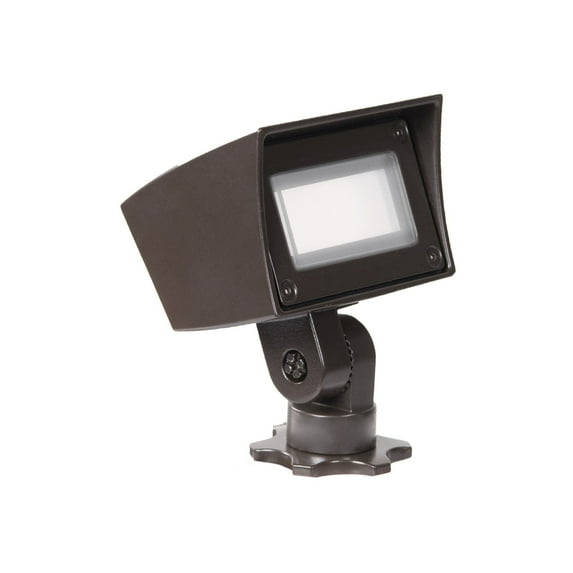

The WAC LIGHTING 5121-27/30BZ LED 12V Mini Flood Light features adjustable output and dual CCT. Constructed from solid die-cast brass or corrosion-resistant aluminum housing, this flood light is designed for wet locations. It has an adjustable beam angle and an IP66 enclosure rating. It requires a 9/15 Volt AC power supply.
- Adjustable Output
- Dual CCT
- LED
- 12V
Product Highlights
This mini flood light is ideal for landscape lighting, providing adjustable and efficient illumination.
Product Information
Standard Information
-
Brand: WAC LIGHTING
-
Manufacturer Part Number: 5121-27/30BZ
-
Country of Origin: China
Technical Specifications
-
Category: Led Landscape Lighting
-
Full Technical Description: 3-3/8 Inch Width X 2-7/8 Inch Depth X 4-1/2 Inch Height Size; Bronze on Aluminum Finish; UL (Canada and Us), UL 1838 Approval; IP66 Enclosure; LED Lamp Type; 8 Watt Lamp Wattage; Solid Die-Cast Brass or Corrosion Resistant Aluminum Housing Material; 9/15 Volt AC at 50/60 Hertz Lamp/Ballast Voltage; Color Rendering Index 85; Intensity 420 Lumen; Color Temperature Rating 2700/3000 Kelvin; Beam Angle Asymmetrical; Mounting Type Wall or Ceiling; Color Warm/Pure White; Application Wet Location
-
Manufacturer: WAC Lighting
-
Manufacturer Brand: WAC Lighting
-
Product Description: WAC Lighting 5121-27/30BZ LED 12V Mini Flood Light Adjustable Output And Dual Cct In Bronze Aluminum
-
Sub-Category: Floodlight Fixture
-
UNSPSC: 39111605
-
UPC 12 Digit: 790576470375
-
Unique Product Key: 6372875
-
comm code enhanced: 72554
-
Brand: WAC Lighting
-
Brand Category: Spot and Flood Lighting
-
Brand Product Description: WAC LED 12V Miniature Wall Wash
-
SKU: 5121-27-30BZ
-
Color Rendering Index: 85
-
Color Temperature: 2700K
-
Dimmable: Yes
-
Lamping Category: LED
-
Lamping Features: Bulb Shape: LED
-
Delivered Lumens: 420
-
Beam Spread: 80
-
Average Hours: 70000
-

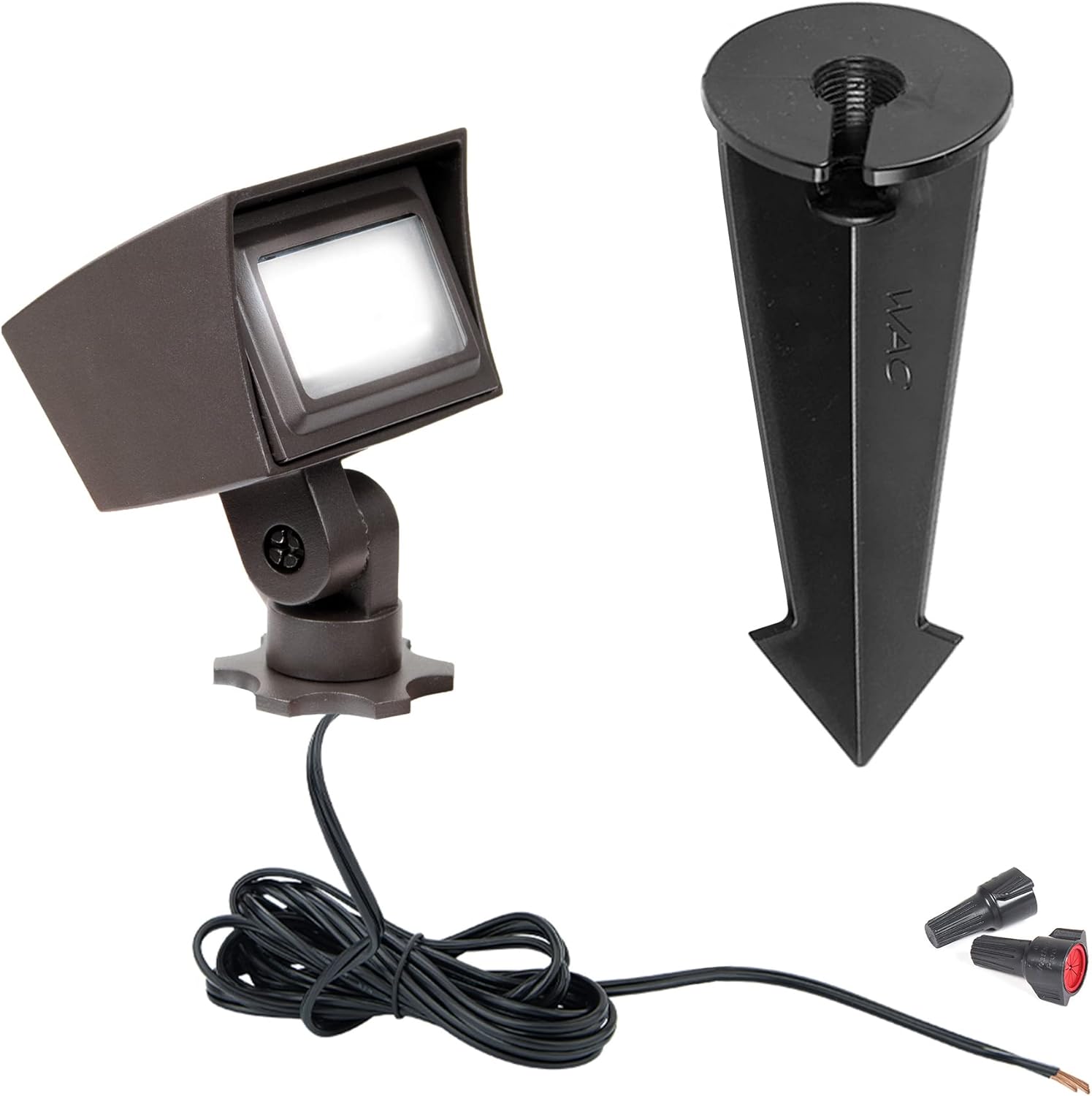

Lamping Included: Bulbs Included
-
Lamping Type: LED - Transformer
-
Lead Wire Length: 36
-
Lumens: 480
-
Primary Number of Bulbs: 1
-
Socket: LED Module
-
Total Number of Bulbs: 1
-
Total Watts: 8 watts
-
Voltage: 12 Volts
-
Wattage Max: 8.00
-
Extension: 2.88
-
Height: 4.5
-
Length: 3.38
-
Width: 2.88
-
ADA: Yes
-
Country of Origin: China
-
Install Position: Can be mounted on ceiling or wall in all orientations
-
Title 24: Yes
-
UL Ratings: UL, cUL, IP66 Wet
-
Interior/Exterior: Exterior
-
Hardwired or Portable: Hardwired
-
Glass Features: Clear Glass Lens
-
Material: Aluminum, Bronze
-
Shade Features: Clear Glass Lens
-
Finish: Bronze on Aluminum
-
Color: Bronze
-

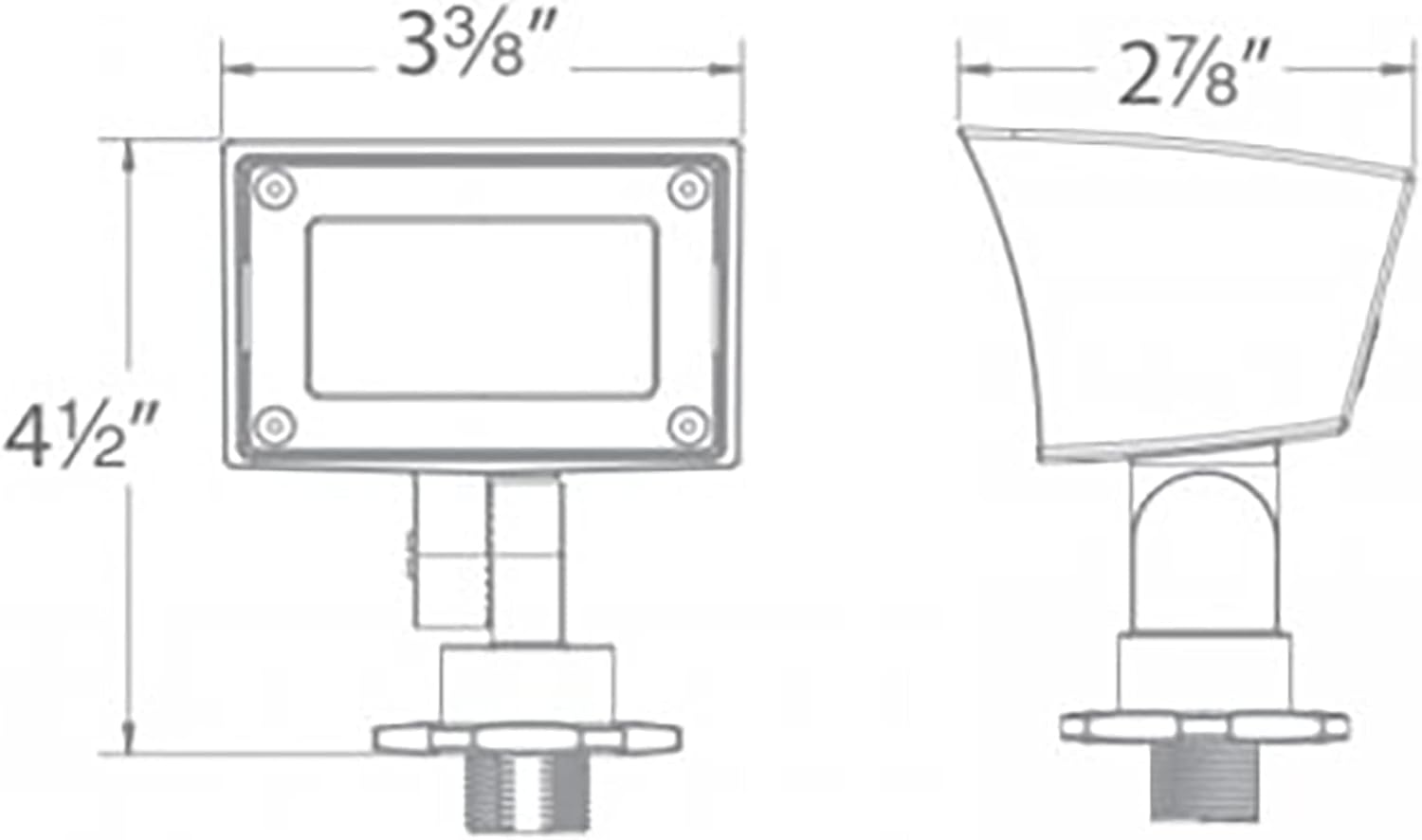

Size: 3.375"W x 4.5"H x 2.875"D
-
Product Weight: 1.64 lbs
-
Dimmer: Included
-
Materials: Glass, Brass, Aluminum
-
Lamp Source: LED
-
Bulb: 1 x LED/8W/12V LED Integrated LED module
-
Lamp Color: CCT Select
-
Color Rendering: 85 CRI
-
Lumens/Watt: 52.50
-
Beam Angle: 80 degrees
-
Lamp Life: 60000 hours
-
Style: 12V Adjustable 2700K-3000K
-
Light fixture form: Floodlight
-
Room Type: Garden, Lawn, Entrance, Pathway, Driveway, Backyard
-
Specific Uses For Product: General purpose
-
Indoor Outdoor Usage: Indoor, Outdoor
-
Power Source: DC
-

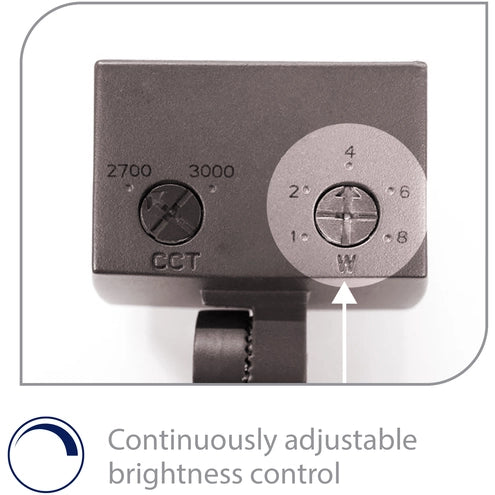

Other Special Features of the Product: Accepts a variety of add-on accessories, Adjustable color temperature toggle between 2700K Warm and 3000K Warm White, Bright and long lasting, maintenance-free energy efficient lighting, Integral brightness control, dims from max output to 20% using the onboard dimming switch, Works with an MLV dimmer (Sold Separately)
-
Control Method: Touch
-
Light Source: LED
-
Number of Light Sources: 1
-
Light Color: Warm or Warm White
-
Lighting Method: Adjustable
-
Wattage: 8 watts
-
Switch Type: Push Button
-
Water Resistance Level: Waterproof
-
Brightness: 420 lm
-
Mounting Type: Wall Mount
-
Fixture Type: Freestanding
-
Smart Home Compatibility: Not Smart Home Compatible
-
Color Temperature (CCT): 2700K or 3000K (selectable)
-
Light Output Maximum: 480 Lumens
-
Recommended Uses For Product: Indoor, Outdoor, Landscape Lighting
-
Installation Type: Wall Mount
-
Specification Met: EPA, Energy Star, FCC, UL, cUL
-
Required Assembly: Yes
-
Light Fixture Installation Location: wall
-
Model Name: WAC Wall Wash
-
Part Number: 5121-27/30BZ
-
Product Dimensions: 2.88"L x 3.38"W x 4.5"H
-
Luminous Flux: 190-980 Lumens
-
CRI: 85
-
Rated Hours: 70,000
-
Dimming: Integral brightness control, compatible with MLV dimmer
-
Standards Met: UL & cUL 1838, IP66 Rated for Wet Locations
