Product Description
The WAC LIGHTING 4501-27BK slim low-profile step and wall light is designed to surface mount onto any application without the need for an electrical box. It is constructed from a corrosion resistant aluminum alloy and is UL and cUL listed for exterior locations with an IP66 rating. Accepts an input voltage range of 9-15VAC.
- Dimmable with smooth and continuous ELV dimming to 10%.
- Rated to IP66 standards for wet locations for indoor and outdoor installations.
- Replaceable LED Module available in 2700K, and 3000K Color Temperatures.
Product Highlights
This step and wall light provides ample illumination while blending into the architecture with its slim profile, louvered design and invisible hardware. It is IP66 Rated for indoor and outdoor applications.
Product Information
Standard Information
-
Brand: WAC LIGHTING
-
Manufacturer Part Number: 4501-27BK
-
Country of Origin: China
Technical Specifications
-
Brand: WAC Lighting
-
SKU: 4501-27BK
-
UPC: 790576785752
-
Color Rendering Index: 90
-
Color Temperature: 2700K
-
Dimmable: Yes
-
Lamping Category: LED
-
Lamping Features: Bulb Shape: LED
-
Delivered Lumens: 55
-
Beam Spread: 37 Degrees
-
Average Hours: 70000 Hours
-
Lamping Included: Yes
-
Lamping Type: LED - Transformer
-
Lead Wire Length: 6 in.
-
Lumens: 80
-
Primary Number of Bulbs: 1
-
Total Number of Bulbs: 1
-
Total Watts: 4
-
Voltage: 12
-
Wattage Max: 4.00
-
Extension: 5.00
-

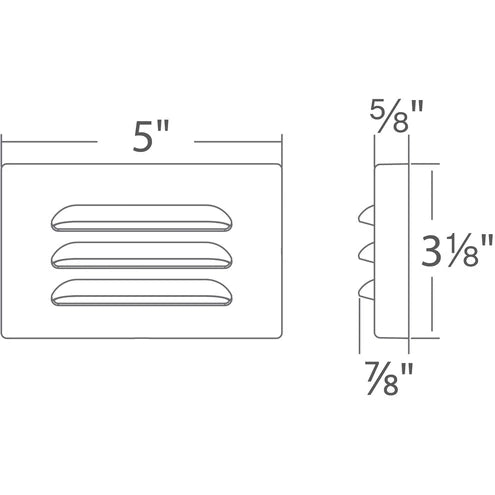

Height: 3.13 in.
-
Length: 0.88
-
Width: 5 in.
-
ADA: Yes
-
Dark Sky: Yes
-
Title 24: Yes
-
UL Ratings: UL, cUL, IP66 Wet
-
Material: K-Alloy Aluminum
-
Interior/Exterior: Interior/Exterior
-
Hardwired or Portable: Hardwired
-
Hardscape Light Type: Step Lights
-
LED: Yes
-
Light Direction: Down Lighting
-
Number of Light Source(s): 1
-
Replaceable LED Module: Yes
-
Theme: Contemporary
-
Power Source: Hardwired
-
Voltage Type: Low Voltage (12-24V)
-
Wattage: 4
-
Certifications: UL
-
Collection: WAC 12V Surface Mounted Step Light
-
Country Of Origin: China
-
Location Rating: Wet Location
-
Outdoor Approved: Yes
-
CRI: 85
-
Power: 4W
-
Input: 9-15 VAC, 50/60Hz
-
Rated Life: 70000 Hours
-
Construction: Solid die-cast brass
-

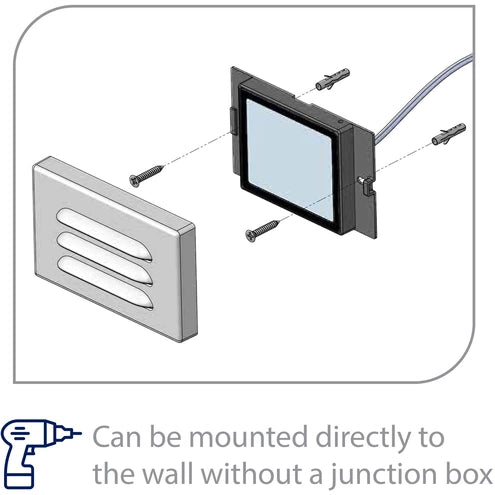

Mounting: Slim low profile design-surface mount installation, (no junction box)
-
Hardware: Invisible hardware
-
Wiring: 6' lead wire included
-
Compatibility: Compatible with WAC Transformer
-
Transformer: Transformer required
-
Bulb Included: Yes
-
Max Wattage: 4
-
Light Count: 1-Light
-
Finish: Black on Aluminum
-
Finish Category: Black
-
Wet/Damp/Dry Rating: Dry
-
Product Length (Inches): 5
-
Product Height (Inches): 0.88
-
Bulb Socket: LED
-
Product Width (Inches): 3.13
-
Materials: Corrosion resistant aluminum alloy
-
Energy Star Rated: No
-
Country of Manufacture: India
-
Number of Bulbs: 1
-
Type of Bulbs: Module
-
LED Color Temperature: 2700K
-
LED CRI: 85
-
Product Type: In Wall
-
Extends: 5.00"
-
Product Line: 4501
-
Style: Utilitarian
-
Light Source: Led
-
Bulbs: 1
-
Color Temp: 2700 K
-
Max Watts: 4
-
Listing: UL,cUL
-
Watts Per Bulb: 4
