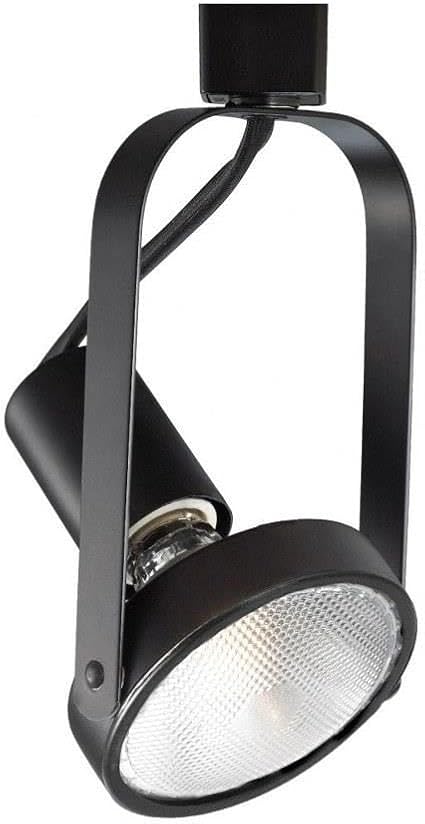

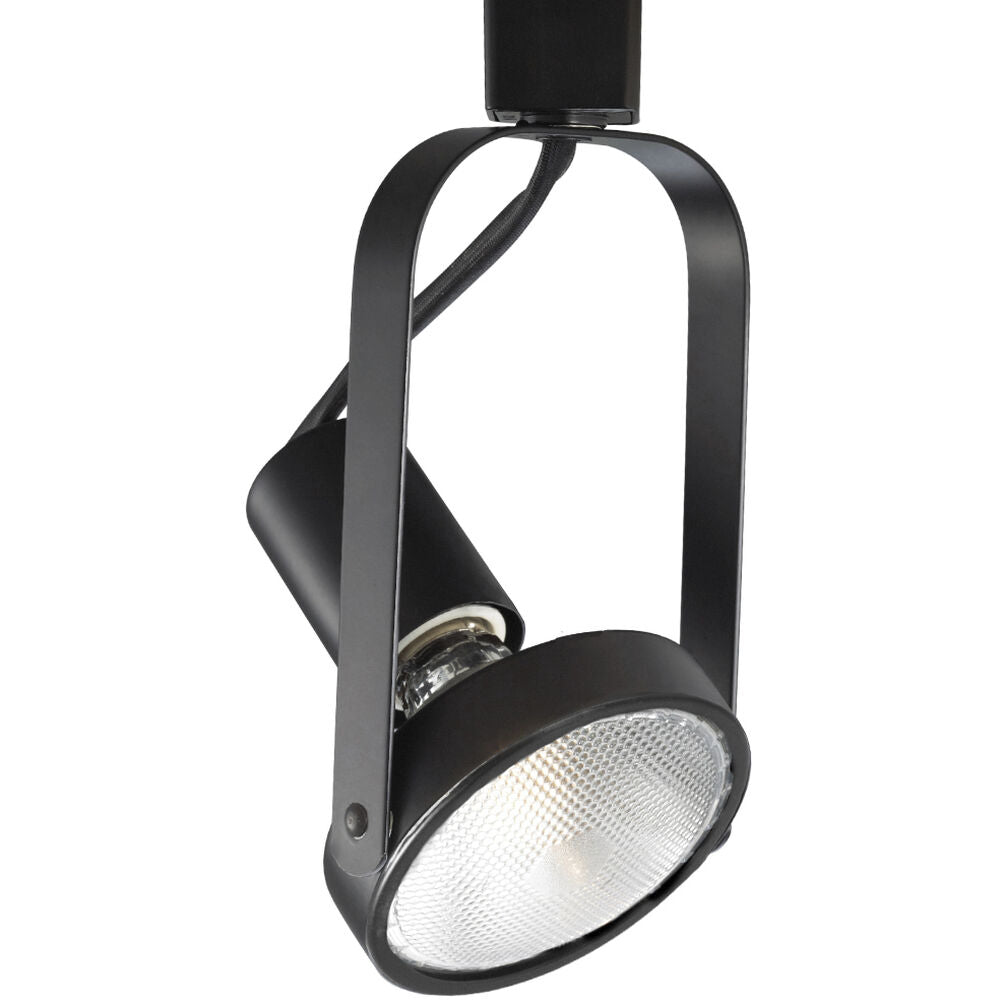

Wac HTK-765-BK Line Voltage 765 H Track Luminaire 1 Unit

Product Description

The WAC HTK-765-BK is a line voltage luminaire that can be used with various lamp options. It is designed for residential, retail, commercial, and hospitality environments where a minimalist profile is desired. The track fixture is available in H track configurations and can accommodate an LED or incandescent lamp.

• Uses PAR38, LED PAR38, and LED BR40 lamp (sold separately).
• 350 degree horizontal rotation and 90 degree vertical tilt.
• Die-cast construction with easy re-lamping from the front without the use of tools.

Product Highlights

This WAC Lighting track head features a double yoke design for easy aiming and smooth dimming to 10% with a compatible dimmer. UL & cUL Listed for dry locations.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: HTK-765-BK
• Country of Origin: Thailand

Technical Specifications

• MPN: HTK-765-BK
• Brand: WAC Lighting
• Brand Category: H Track Fixture
• Brand Product Description: TK-765 Line Voltage Track Head
• Dimmable: ELVTRIAC
• Lamping Features: Bulb Shape: Multiple
• Lamping Included: Bulbs Not Included
• Lamping Type: Lamp Not Included
• Primary Number of Bulbs: 1
• Socket: E26
• Total Number of Bulbs: 1
• Total Watts: 50
• Voltage: 120 Volts
• Wattage Max: 50.00
• Diameter: 6
• Extension: 6.63
• Height: 10.63
• Length: 6.63
• Maximum Adjustable Height: 10
• Width: 5
• ADA: Yes
• Country of Origin: Thailand
• Title 20: Yes
• Title 24: Yes
• UL Ratings: UL/cUL Dry
• Interior/Exterior: Interior
• Complete System: No
• Standards: UL & cUL Listed for Dry Locations.
• Hardwired or Portable: Plugin
• Min Height: 10.63
• Bulb Shape: PAR30
• Material: Aluminum
• System: H Track
• Specific Uses For Product: Indoor use only
• Indoor Outdoor Usage: Indoor
• Power Source: AC
• Other Special Features of the Product: E26/Medium Base
• Light Source: Halogen
• Number of Light Sources: 1
• Light Color: Warm White
• Lighting Method: Up/Down Light
• Wattage: 50 watts
• Bulb Base: E26
• Mounting Type: Protruding
• Fixture Type: Non Removable
• Specification Met: UL Listed
• Required Assembly: No
• Style: H Track
• Light fixture form: Track Light Head
• Number of Items: 1
• Unit Count: 1.0 Count
• Manufacturer: WAC Lighting
