Product Description

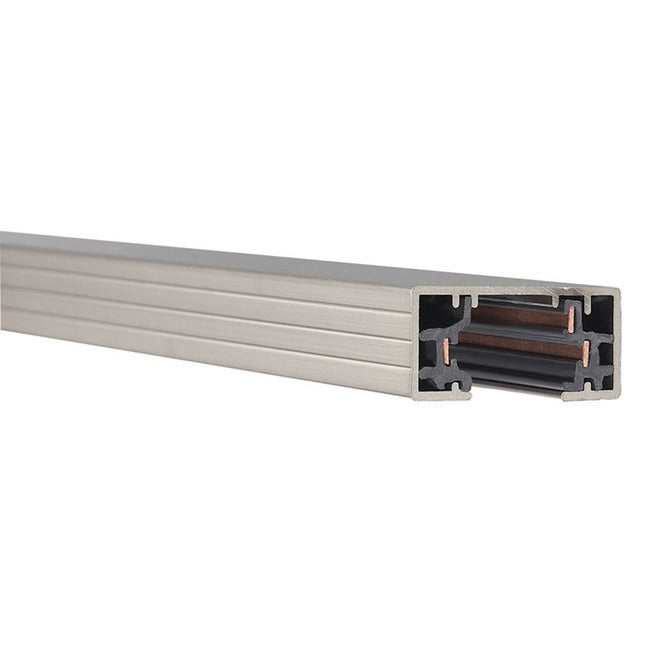

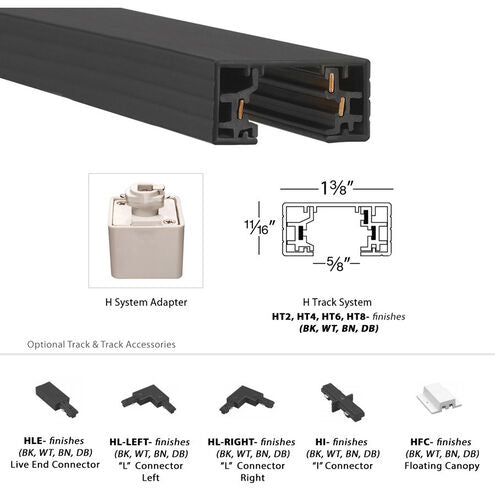

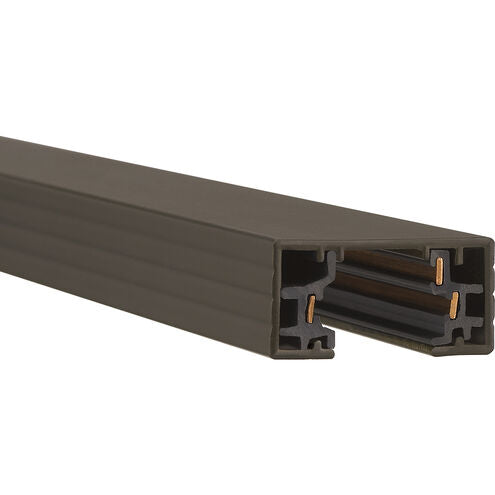

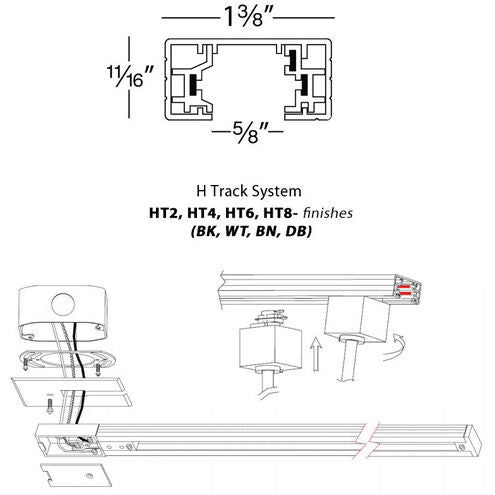

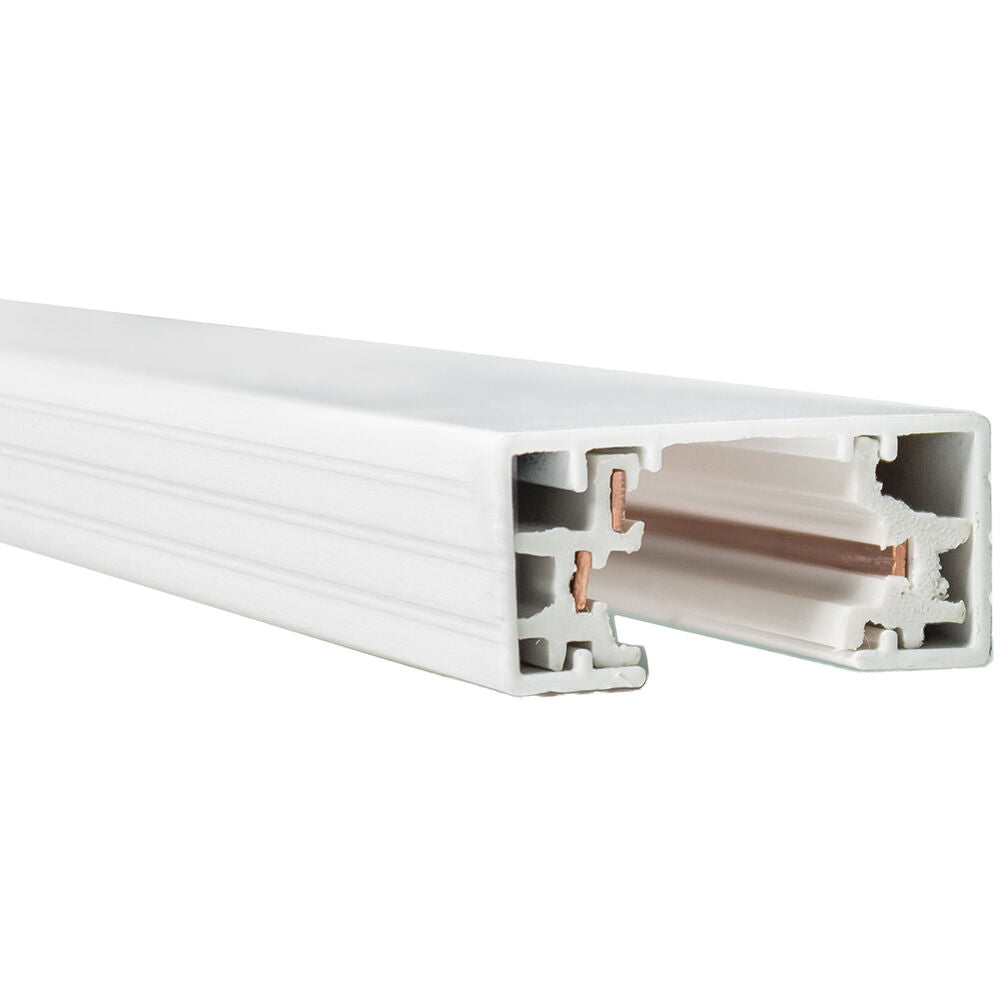

The WAC HT6-WT is a 120V track system designed for multiple interior applications. Compatible with H track systems by WAC Lighting and others, this sturdy track can be surface mounted or suspended. It may be field cut to size for easy installation on various surfaces. Two end caps and mounting hardware are included.
- Compatible with H track systems by WAC Lighting.
- Also compatible with H systems from other leading lighting manufacturers.
- May be field cut and can easily installed on a variety of surfaces.
Product Highlights
This track system is versatile, sturdy, and easy to install in any interior environment. Accessories and suspension options are available separately.
Product Information
Standard Information
-
Brand: WAC
-
Manufacturer Part Number: HT6-WT
-
Country of Origin: Thailand
Technical Specifications
-
Brand: WAC Lighting
-
MPN: HT6-WT
-
Brand Category: Track Component
-
Brand Product Description: H Track Single Circuit 120V
-
Dimmable: ELVTRIAC
-
Lamping Included: Bulbs Not Included
-
Lamping Type: None
-
Primary Number of Bulbs: 1
-
Total Number of Bulbs: 1
-
Voltage: 120 VAC
-
Wattage Max: 1920.00
-
Backplate/Canopy Extension: 0.66
-
Backplate/Canopy Height: 72
-
Backplate/Canopy Width: 1.38
-
Extension: 70.87
-
Height: 0.66
-
Length: 72
-
Maximum Adjustable Height: 0.66
-
Width: 1.38
-
ADA: Yes
-
Country of Origin: Thailand
-
Title 20: Yes
-
Title 24: Yes
-
UL Ratings: UL/cUL Dry
-
Mounting: H-Track
-
Single Circuit 120V track, power per Circuit: 120V, 1920W max per circuit, Operating Current: Rated 20A max.
-
Complete System: No
-
Interior/Exterior: Interior
-
Hardwired or Portable: Hardwired
-
Min Height: 0.69
-
Standards: UL & cUL Listed for Dry Locations.
-
Material: Aluminum
-
System: H Track
-
Fixture Color/Finish: White
-
Light Source Type: LED
-
Power Source: AC
-
Light Output Maximum: 130 Lumens
-
Maximum Compatible Light Source Wattage: 1920 Watts
-
Light Source Special Features: Energy Efficient, Long Lifespan
-
Color Rendering Index: 80
-
Number of Light Sources: 1
-
Batteries are Included: No
-
Bulb Base: GU24
-
Specification Met: ADA Certified, UL Listed
-
Finish: White
-
Theme / Style: Contemporary
-
Length (Extension): 1.38
