Wac HR-LED90-30-DB edge lit recessed / surface button light 5 watt 3 inch

Product Description

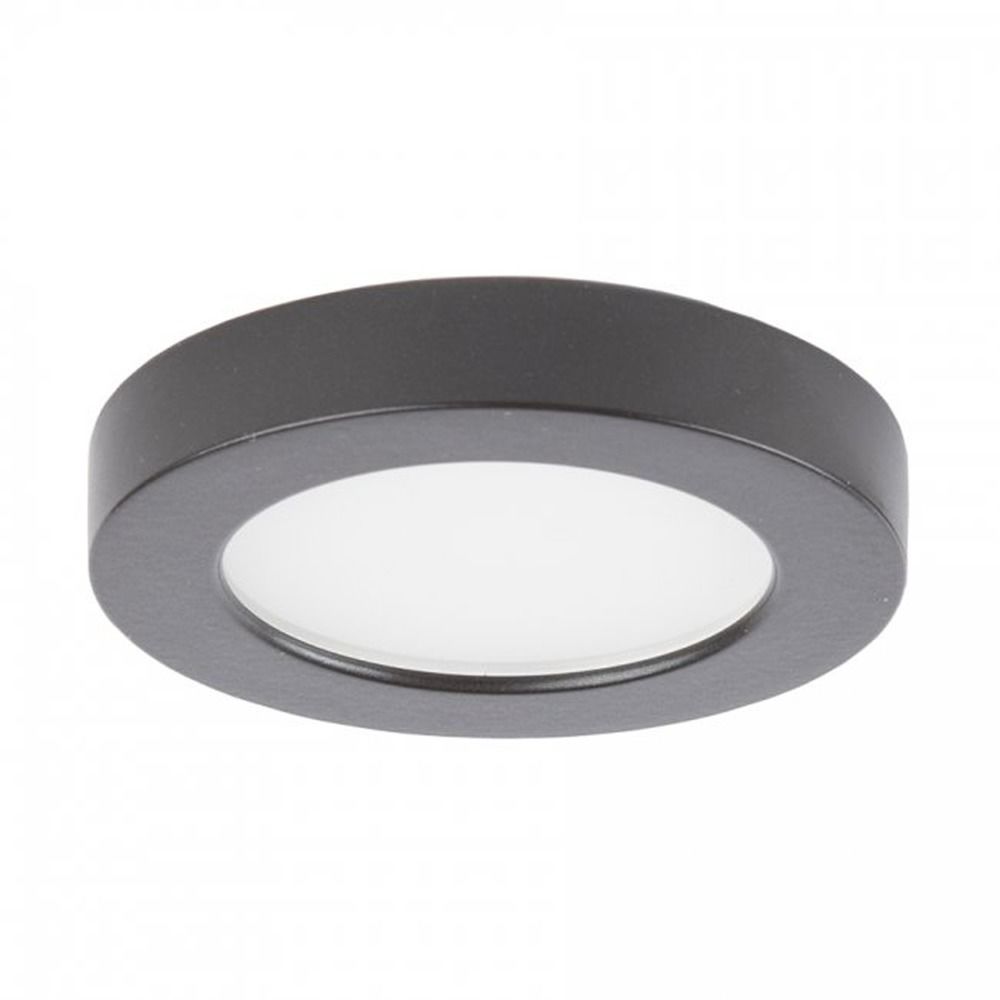

The WAC HR-LED90-30-DB LED90 Surface Mount/Recessed Button Light is constructed from die-cast aluminum and stamped steel housing. It features a super thin profile and edge-lit LEDs, designed to reduce glare and ensure even light distribution. This 5 watt, 24 volt LED light offers a 3000K color temperature with 90CRI and 200 lumens, suitable for both recessed and surface mount applications. It has a 100,000 hour average lamp life and is dimmable to 5 percent.

• Constructed from die-cast aluminum and stamped steel housing.
• Features edge-lit LEDs for reduced glare and even light distribution.
• Dimmable to 5 percent with an electronic low voltage dimmer.

Product Highlights

This WAC HR-LED90-30-DB light offers a super thin profile, edge-lit LEDs for even light, and is Energy Star rated and Title 24 compliant.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: HR-LED90-30-DB
• Country of Origin: China

Technical Specifications

• Finish: Dark Bronze
• Product Type: Under Cabinet
• Diameter: 3 inches
• Height: 0.5 inches
• Lamp Source: LED
• Bulb Type: LED
• Bulb Base: Integrated LED
• Number of Bulbs: 1
• Bulb Included: Yes
• Total Wattage: 5 watts
• Input Voltage: 24 V
• Voltage Type: Low Voltage
• Color Temperature: 3000K
• Color Rendering Index (CRI): 90
• Delivered Lumens: 200 lumens
• Lumens per Watt: 40.00
• Average Rated Life: 100,000 hours
• Dimmable: With Electronic Dimmer
• Certifications: ETL, Damp Location
• Energy Star: Yes
• Title 24 Compliant: Yes
• Material: Aluminum
• Shade Material: Glass
• Shade Color: White
• Shade Shape: Disk
• Light Direction: Down Lighting
• Power Source: Hardwired
• Installation Type: Direct-wire
• Lead Wire Length: 72 inches
• Recessed Cutout Size: 3.25 inches
