Wac fm-240203-cs-wt Led Flush Mount Light 9W 550 Lumens

Product Description

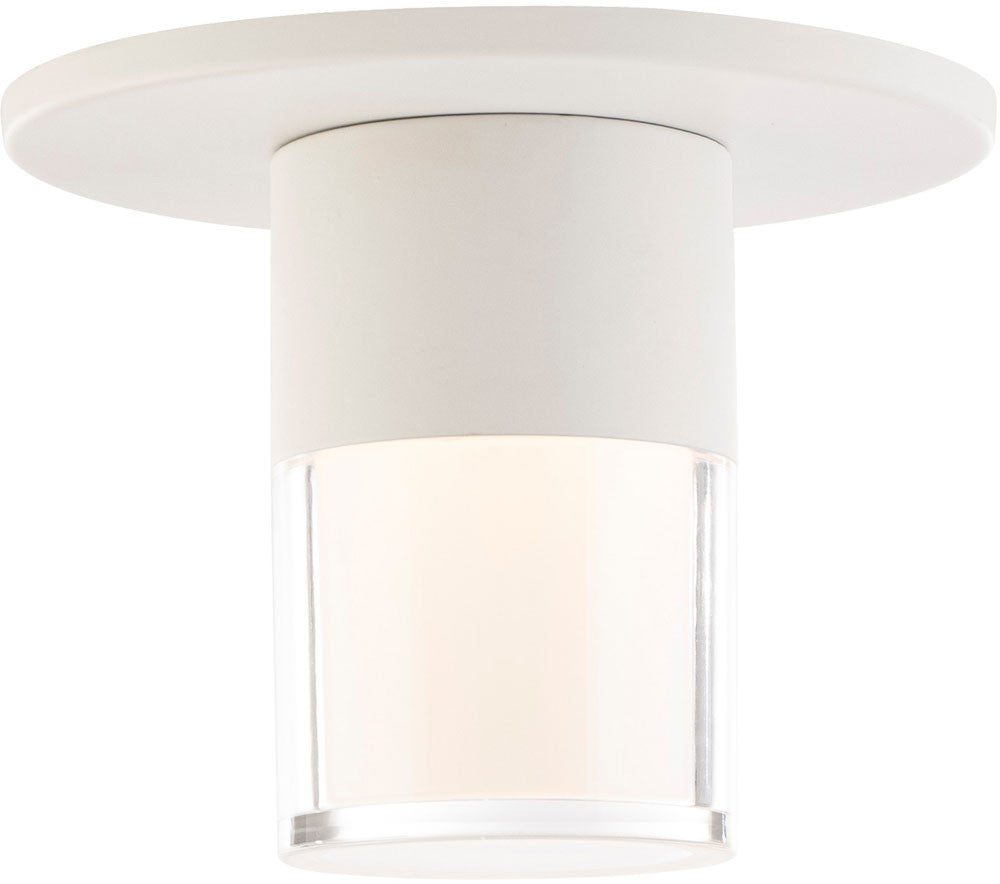

The WAC fm-240203-cs-wt is a contemporary LED flush mount light fixture designed for residential and light commercial ceiling installations. It ships with one 9-watt replaceable LED bulb that delivers 550 lumens of output. Color temperature is field-selectable across five settings: 2700, 3000, 3500, 4000, and 5000K, giving installers control over the light quality at the time of installation. The fixture carries a wet rating, making it suitable for damp and wet-rated locations. A co-extruded clear acrylic and white diffuser provides even light distribution with a clean, finished appearance.

This fixture fits residential and light commercial applications including bathrooms, laundry rooms, covered entryways, and other wet-rated ceiling locations. The compact form factor — 2.38 inches wide, 3.5 inches tall, and 2.35 inches deep — suits low-clearance installations where a slim profile is required. The white finish coordinates with standard residential trim. Dimming is supported via ELV and TRIAC compatible dimmers, making it compatible with common residential dimmer infrastructure.

Key Features

• Field-selectable color temperature: 2700, 3000, 3500, 4000, and 5000K
• Wet-rated for bathrooms, covered exteriors, and humid environments
• 9-watt replaceable LED bulb included; 550 lumen output
• CRI 90 for accurate color rendering
• ELV and TRIAC dimming compatible
• Title 20 and Title 24 compliant for California energy code installations
• Co-extruded clear acrylic and white diffuser for uniform light distribution

Compatibility

Designed as an OEM-style flush mount fixture compatible with standard residential ceiling junction boxes. Dimming requires an ELV or TRIAC compatible dimmer switch; verify dimmer compatibility before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines and local codes. Power off the circuit at the breaker before beginning any wiring work. The 6-inch wire lead connects to the ceiling junction box using standard wire connectors. For wet-rated locations, verify the junction box is rated for the installation environment and that all connections are properly sealed.

Technical Specifications

• Wattage: 9 watts
• Lumens: 550
• Color Temperature: Selectable — 2700, 3000, 3500, 4000, 5000K
• CRI: 90
• Dimming: ELV, TRIAC
• Wet Rating: Wet rated
• Width: 2.38 inches
• Height: 3.5 inches
• Depth: 2.35 inches
• Wire Length: 6 inches
• Diffuser Material: Co-extruded clear acrylic and white
• Finish: White
• Compliance: Title 20, Title 24
• Bulb Type: LED, replaceable, included

Standard Information

• Brand: WAC
• Manufacturer Part Number: fm-240203-cs-wt
