Wac fm-240203-cs-bk Led Flush Mount 9W 5in Black 5-CCT

Product Description

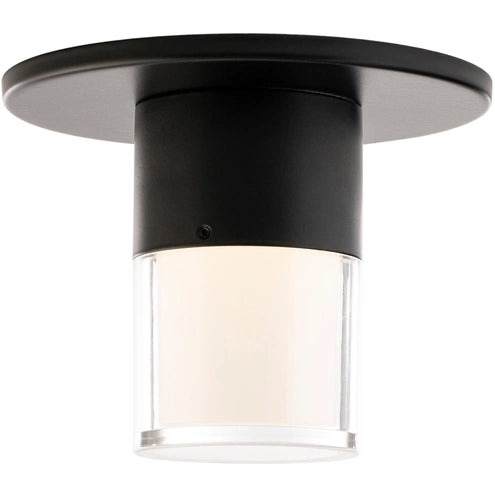

The WAC fm-240203-cs-bk is a surface-mount LED ambient cylinder luminaire built around the Twist-N-Lite mounting platform. The fixture delivers 550 lumens of flood-spread illumination at 9 watts, with five selectable color temperatures ranging from 2700K to 5000K, giving installers the flexibility to dial in warm or cool white output without stocking multiple SKUs. Rated for 54,000 average hours of lamp life and carrying a Color Rendering Index of 90, this unit is suited for finished residential ceilings, light commercial lobbies, and hospitality spaces where accurate color rendering and long service intervals matter. A licensed electrician typically handles the rough-in and final connection.

The fm-240203-cs-bk is designed for standard electrical junction box installations in residential and light commercial settings. It integrates with the Twist-N-Lite GU-10-based canopy system, allowing the luminaire head to be swapped in the field with other Twist-N-Lite products including the FM-240103 downlight cylinder, FM-240209 flush mount, and PD-240212 pendant, all sharing the same mounting canopy. This makes it a practical choice for projects that require fixture flexibility across different room types or after-the-fact lighting redesigns.

Key Features

• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
• 9-watt LED module delivers 550 delivered lumens with a flood beam spread
• CRI 90 for accurate, true-to-life color rendering
• Dimmable operation for adjustable light levels
• 54,000-hour average rated lamp life reduces maintenance frequency
• Twist-N-Lite GU-10 canopy system allows field interchange with compatible luminaires
• LED module and driver included — no separate bulb purchase required

Compatibility

The fm-240203-cs-bk is compatible with the Twist-N-Lite universal canopy mounting system and is interchangeable with the FM-240103 downlight cylinder, FM-240209 flush mount, and PD-240212 pendant on the same canopy base. The canopy mounts to any standard electrical junction box.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code and applicable local codes. Shut off branch-circuit power at the breaker before wiring. The canopy base mounts to any standard electrical junction box; the luminaire head then locks into position using the Twist-N-Lite twist-on, twist-off mechanism. Confirm dimmer compatibility with the LED driver before installation to ensure flicker-free performance.

Technical Specifications

• Wattage: 9 watts
• Delivered Lumens: 550
• Source Lumens: 688
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (selectable)
• Color Rendering Index: 90
• Beam Spread: Flood
• Dimmable: Yes
• Voltage: 120 volts
• Lamping Type: LED Module with Driver (included)
• Average Rated Hours: 54,000
• Diameter: 5 inches
• Height: 3.5 inches
• Width: 2.38 inches
• Length: 2.35 inches
• Canopy Height: 5 inches
• Canopy Width: 5 inches
• Canopy Extension: 0.58 inches
• Lead Wire Length: 6 inches
• Weight: 1.16 pounds
• Finish: Black

Standard Information

• Brand: WAC
• Manufacturer Part Number: fm-240203-cs-bk
