Wac FM-240103-CS-WT twist-n-lite mini flush mount 12W 45 deg

Product Description

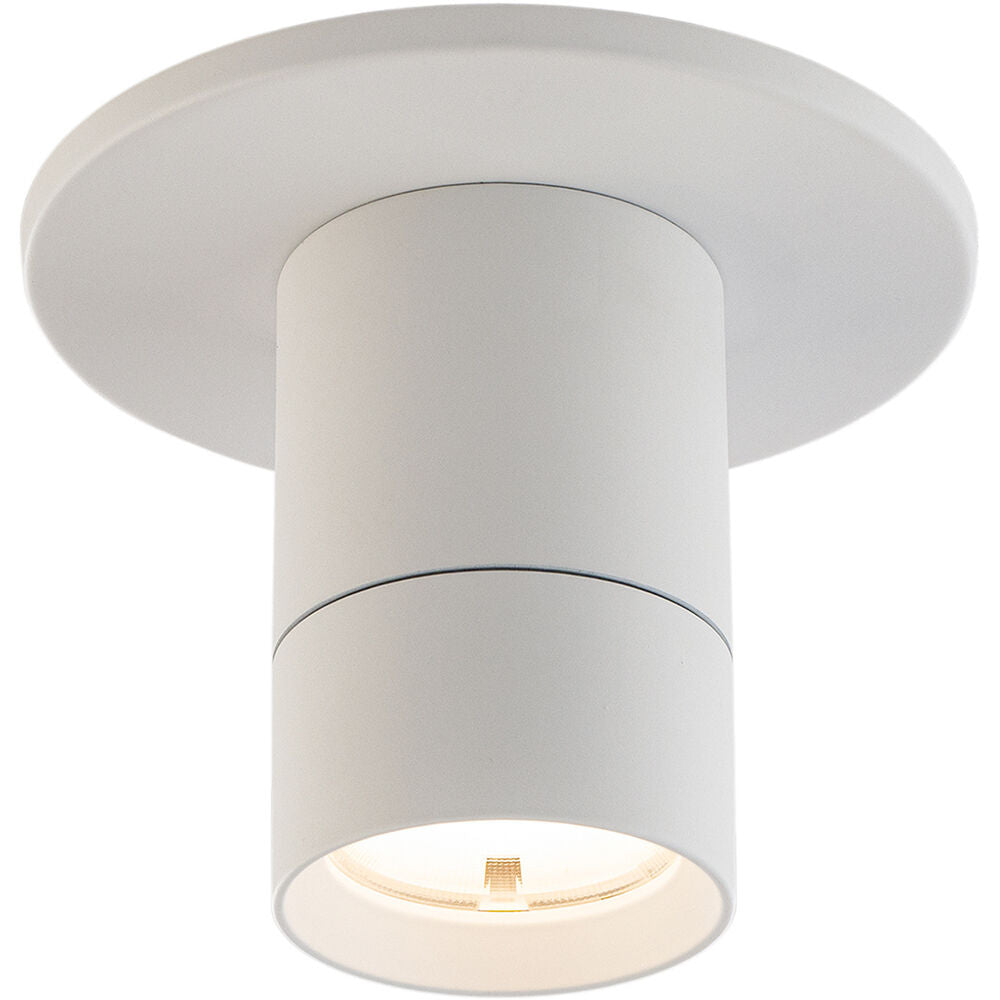

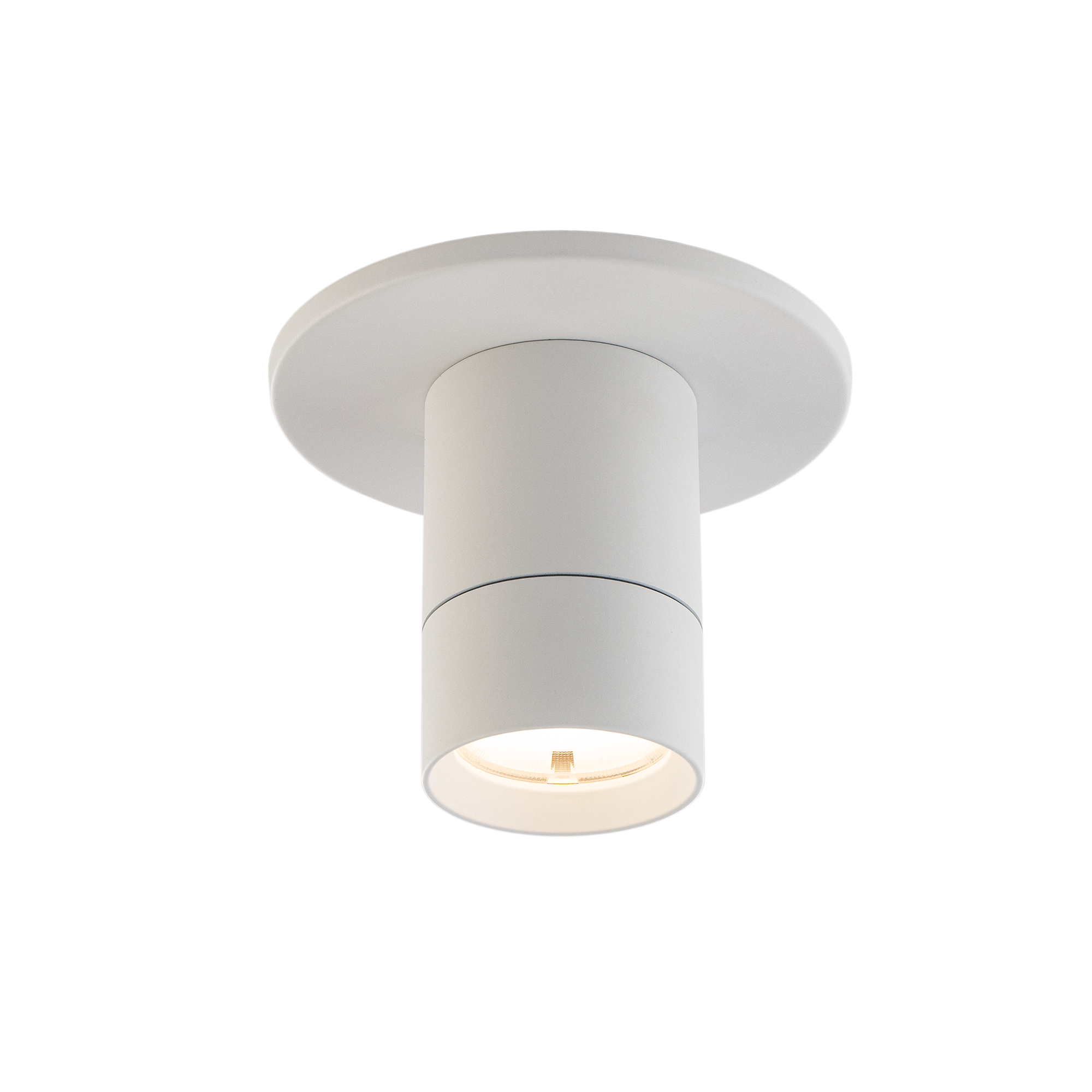

The WAC FM-240103-CS-WT Twist-N-Lite Mini Flush Mount is a 12W LED fixture designed for easy installation and versatile lighting applications. It features 5-CCT switchability between 2700K and 5000K, a concealed driver, and can be mounted on ceilings or walls. This aluminum fixture provides 900lm with a 90 CRI and a 45-degree beam angle, operating on 120 VAC. It supports ELV and TRIAC dimming from 100-5%.

• Mount and power any fixture in the Twist-N-Lite family by twisting it onto the canopy.
• All wiring and connections are made in the junction box prior to installing the mounting base and canopy.
• Shared canopy allows for easily swapping between fixtures without adjusting the mounting hardware.

Product Highlights

This flush mount offers 5-CCT switchable color temperatures and a concealed driver for a clean aesthetic.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: FM-240103-CS-WT
• Country of Origin: China

Technical Specifications

• Model: FM-240103
• Color Temperature: 2700K/3000K/3500K/4000K/5000K
• CRI: 90
• Wattage: 12W
• Lumens: 900lm
• Finish: White
• Input Voltage: 120 VAC, 50/60Hz
• Dimming Range (ELV): 100-5%
• Dimming Range (TRIAC): 100-5%
• Rated Life: 50000 Hours
• Construction Material: Aluminum with TIR Lens
• Beam Angle: 45 deg
• SKU: FM-240103-CS-WT
• Category: Flush Mount
• UPC: 197179057024
• Dimmable: Yes
• Lamp Type: LED
• Bulb Shape: LED Module
• Bulbs Included: Yes
• Lead Wire Length: 6.00 inches
• Number of Bulbs: 1
• Socket Type: LED Module - Driver
• Backplate/Canopy Extension: 0.58 inches
• Backplate/Canopy Height: 5 inches
• Backplate/Canopy Width: 5 inches
• ADA Compliant: Yes
• Country of Origin: China
• Energy Star Certified: Yes
• Installation Position: Ceiling/WallAny
• Title 20 Compliant: Yes
• Title 24 Compliant: Yes
• Certifications: ETL/cETL/IP44/CSA/Energy Star/Title 24/ADA/Closet Rated Damp
• Power Source: Hardwired
• Dimming Type: ELVTRIAC
• Efficacy: 75 Lm/W
• Lens Material: Clear Glass Lens
• Dimmer Type: Low Voltage Electronic

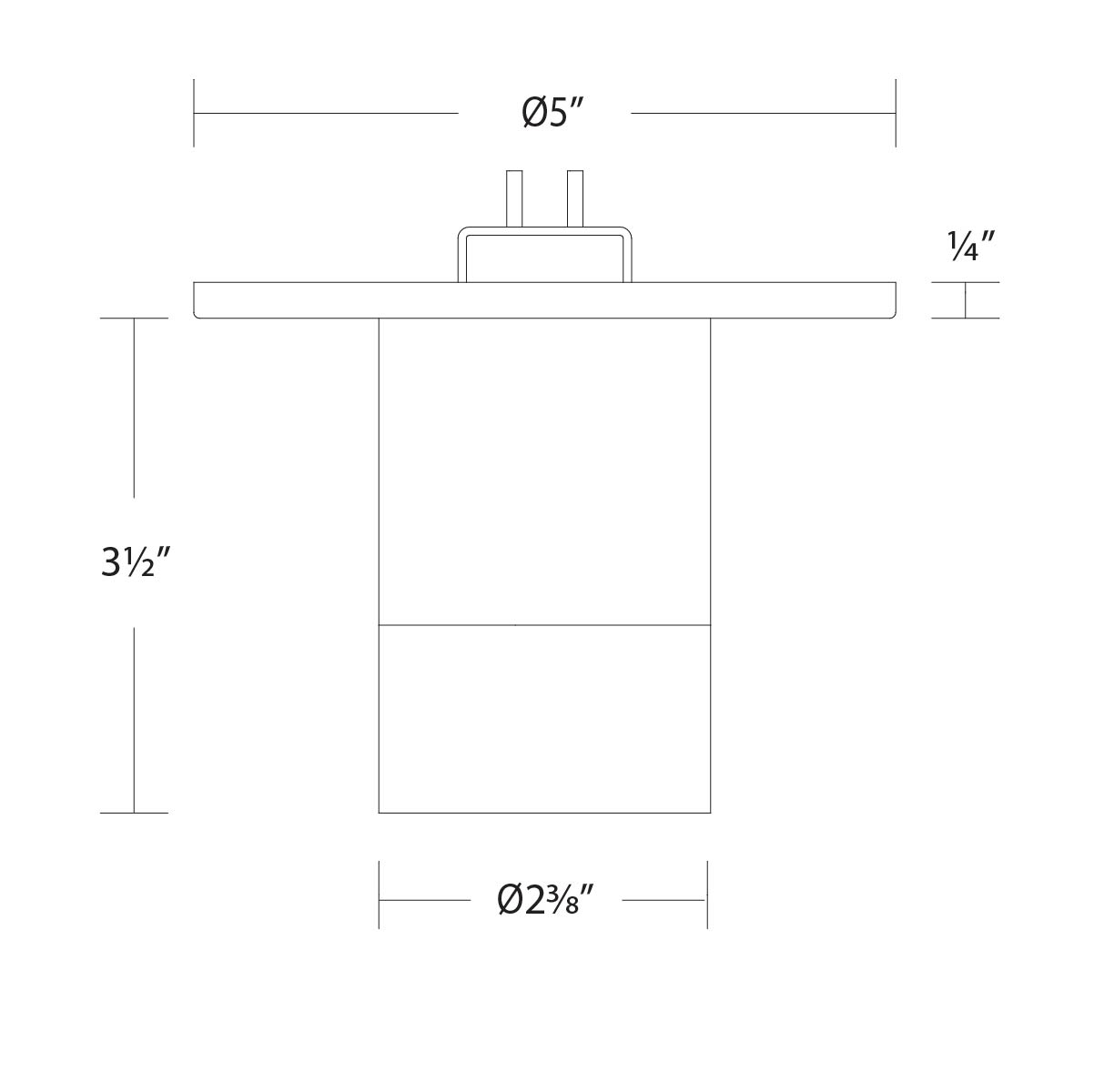

• Canopy Dimensions: Round, 5" Dia x 0.25"H
• Driver Location: Fixture
• Shade Dimensions: 2.375" Dia
• Product Type: Flush Mount Light
• Collection: Twist N Lite
• Style: Utilitarian
• Bulb Base: Module
