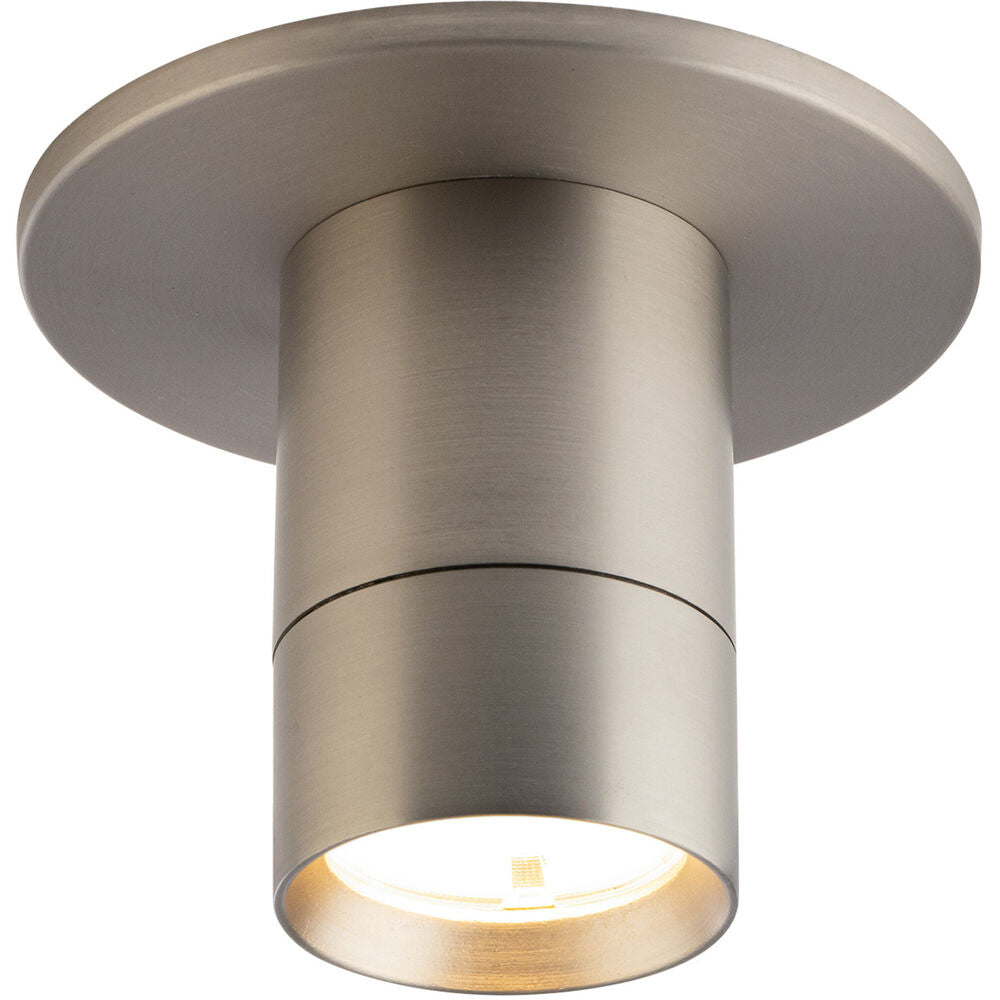

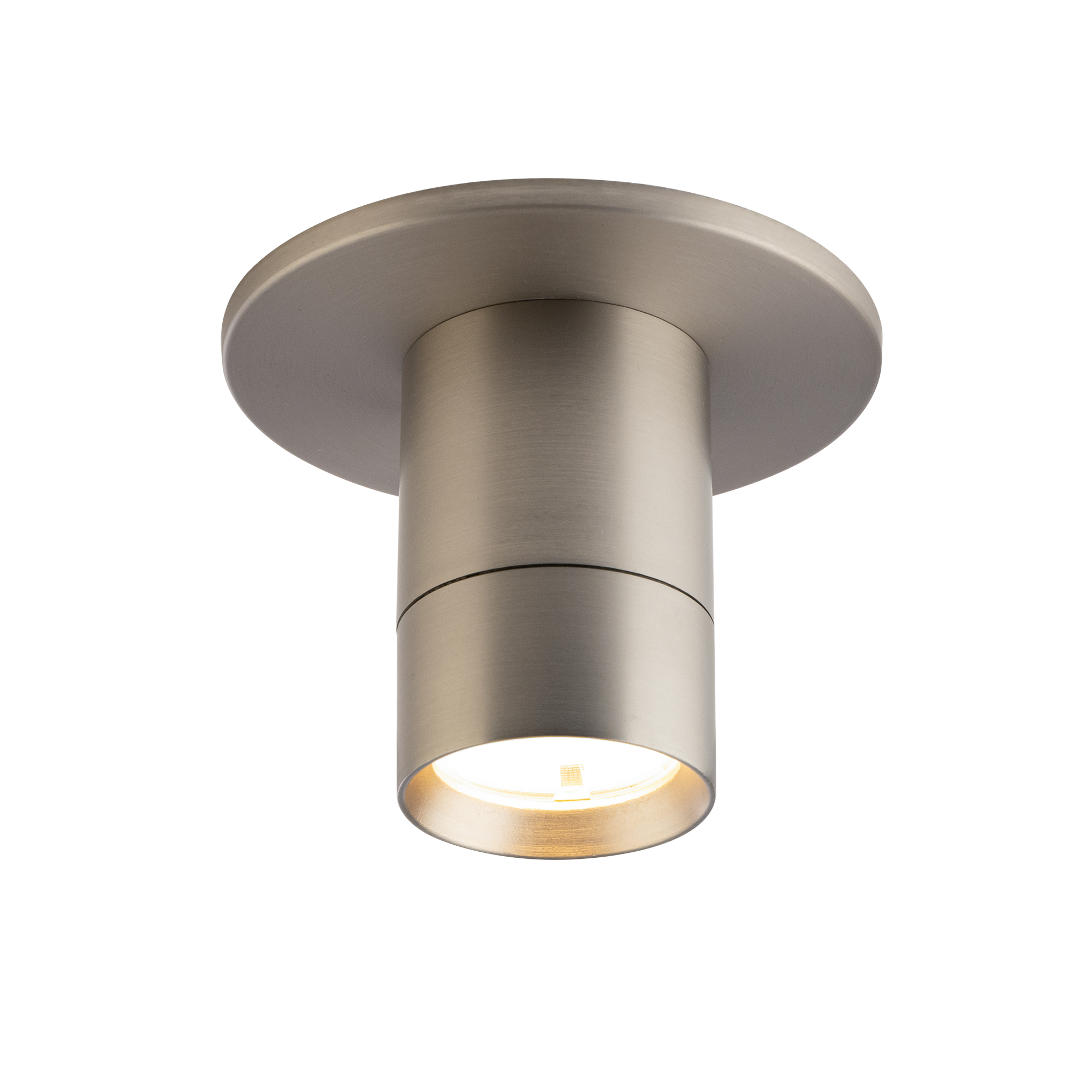

Wac FM-240103-CS-BN Twist-N-Lite mini flush mount 12W 45 degree beam angle

Product Description

The WAC FM-240103-CS-BN Twist-N-Lite Mini Flush Mount is a versatile lighting fixture. It features 5-CCT switchable color temperature, adjustable from 2700K to 5000K, and a high Color Rendering Index (CRI) of 90. This 12W fixture delivers 900 lumens with a 45-degree beam angle. Designed for easy installation, it allows mounting and powering Twist-N-Lite fixtures by twisting onto a canopy. Wiring is completed in the junction box. It supports ELV and TRIAC dimming from 100% down to 5% and can be mounted on ceilings or walls.

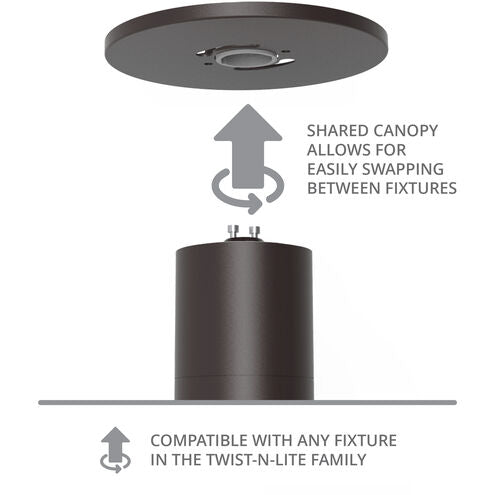

• Mount and power any fixture in the Twist-N-Lite family by twisting it onto the canopy.
• 5-CCT Switchable color temperature between 2700K and 5000K.
• Can be mounted on ceiling or wall in all orientations.

Product Highlights

This flush mount offers flexible installation, adjustable color temperature, and dimming capabilities for various lighting applications.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: FM-240103-CS-BN
• Country of Origin: China

Technical Specifications

• Model: FM-240103
• Color Temperature: 2700K/3000K/3500K/4000K/5000K
• CRI: 90
• Wattage: 12W
• Lumens: 900 Lumens
• Input Voltage: 120 VAC, 50/60Hz
• Dimming Type: ELV, TRIAC
• Dimming Range: 100-5%
• Rated Life: 50000 Hours
• Material: Aluminum with TIR Lens
• Beam Angle: 45 degrees
• UPC: 197179057031
• Brand Category: Flush Mount
• Lamping Category: LED
• Lamping Included: Bulbs Included
• Lamping Type: LED
• Lead Wire Length: 6.00
• Primary Number of Bulbs: 1
• Socket: LED Module - Driver
• Total Number of Bulbs: 1
• Backplate/Canopy Extension: 0.58
• Backplate/Canopy Height: 5
• Backplate/Canopy Width: 5
• Diameter: 5
• Height: 3.5
• Length: 2.35
• Width: 2.38
• ADA Compliant: Yes
• Country of Origin: China
• Energy Star Rated: Yes
• Installation Position: Ceiling/WallAny
• Title 20 Compliant: Yes
• Title 24 Compliant: Yes
• Certifications: ETL, cETL, IP44, CSA, Energy Star, Title 24, ADA, Closet Rated Damp, Wet location
• Hardwired or Portable: Hardwired
• Bulb Shape: LED Module
• Efficacy: 75 Lm/W
• Interior/Exterior Use: Interior or Exterior Covered
• Glass Features: Clear Glass Lens
• Shade Features: Clear Glass Lens
• Collection: Twist-N-Lite
• Light Count: 1-Light
• Canopy Dimensions: Round, 5" Dia x 0.25"H
• Driver Location: Fixture
• Shade Diameter: 2.375" Dia
• Dark Sky Compliant: No
