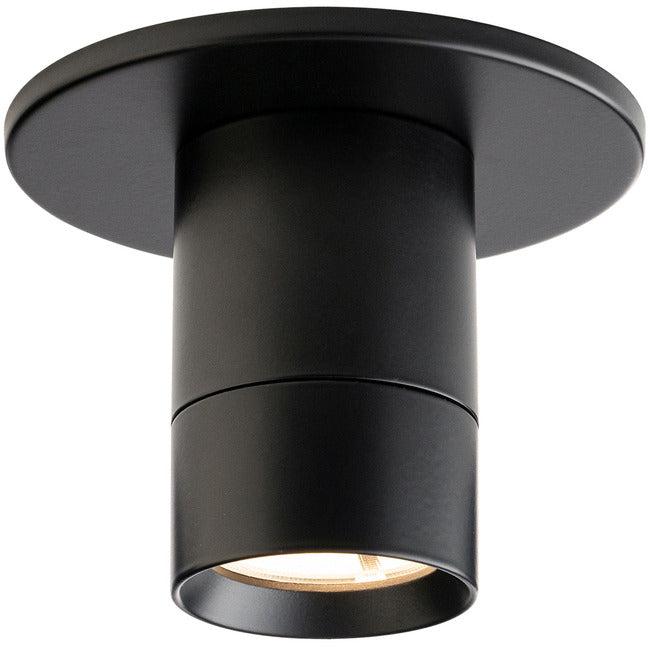

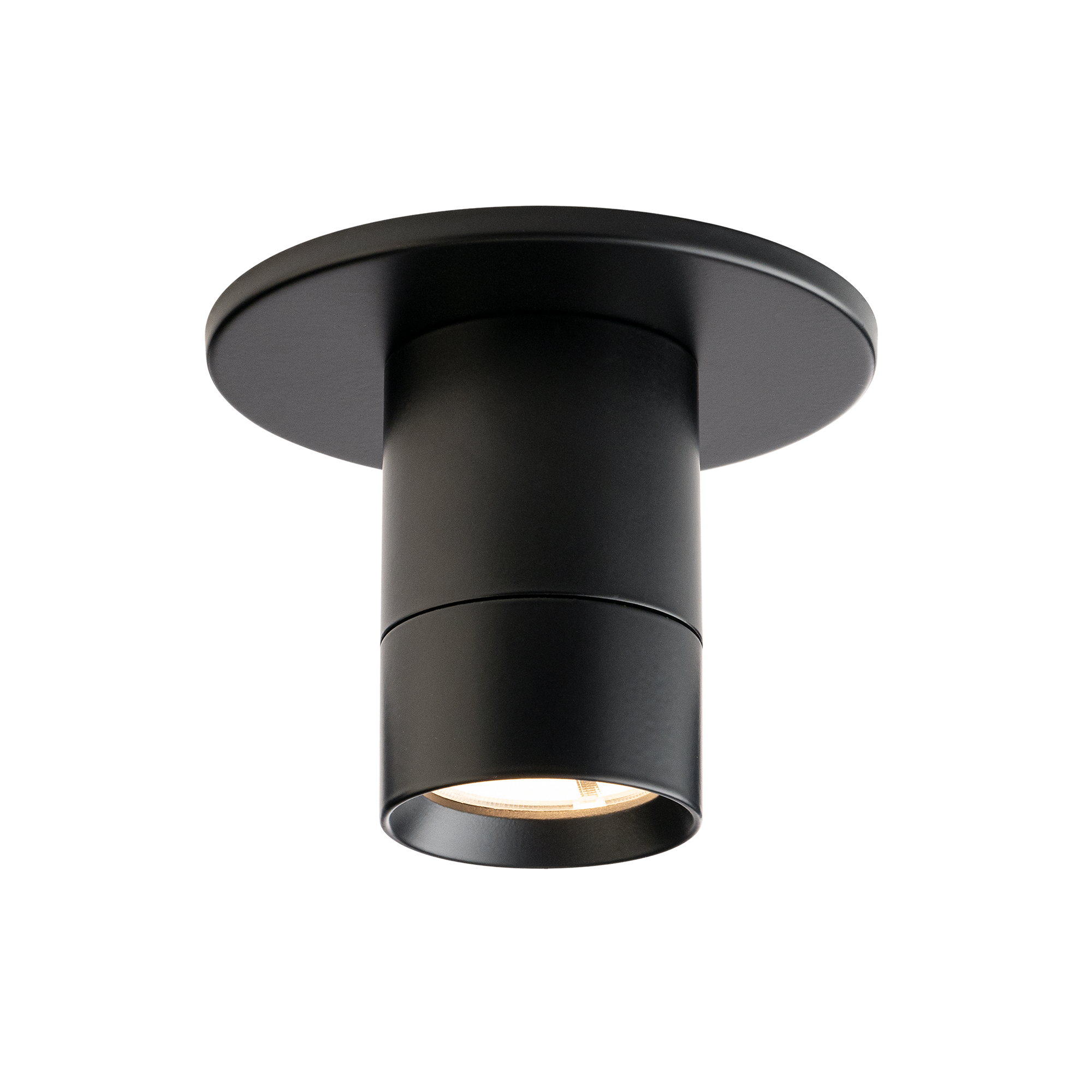

Wac FM-240103-CS-BK Twist-N-Lite mini flush mount 12w 45 degree beam

Product Description

The WAC FM-240103-CS-BK Twist-N-Lite Mini Flush Mount offers easy installation and fixture swapping within the Twist-N-Lite family. This 12W LED fixture provides 900 lumens and is 5-CCT switchable, allowing color temperatures from 2700K to 5000K. It features a 45-degree beam angle and a concealed driver, suitable for both ceiling and wall mounting in any orientation.

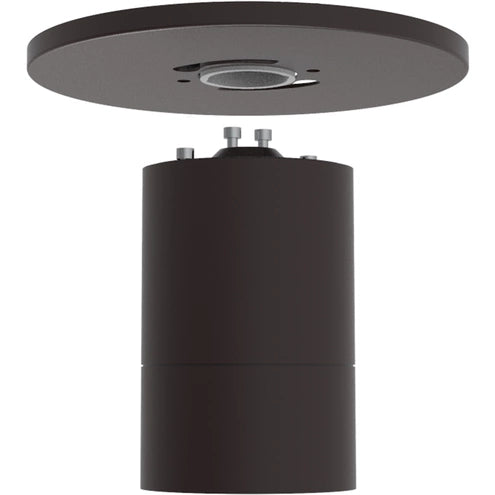

• Mount and power any fixture in the Twist-N-Lite family by twisting it onto the canopy.
• All wiring and connections are made in the junction box prior to installing the mounting base and canopy.
• 5-CCT Switchable between 2700K and 5000K.

Product Highlights

This versatile LED flush mount offers flexible installation, interchangeable design, and selectable color temperatures for various lighting applications.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: FM-240103-CS-BK
• Country of Origin: China

Technical Specifications

• Model: FM-240103
• Color Temperature: 2700K/3000K/3500K/4000K/5000K
• CRI: 90
• Wattage: 12W
• Lumens: 900lm
• Input Voltage: 120 VAC, 50/60Hz
• ELV Dimming Range: 100-5%
• TRIAC Dimming Range: 100-5%
• Rated Life: 50000 Hours
• Construction Material: Aluminum with TIR Lens
• Available Finishes: Black, Brushed Nickel, White
• Category: Flush Mount
• SKU: FM-240103-CS-BK
• UPC: 197179057017
• Dimmable: Yes
• Light Source Type: LED
• Bulb Shape: LED Module
• Beam Angle: 45 degrees
• Bulbs Included: Yes
• Lead Wire Length: 6.00
• Number of Bulbs: 1
• Socket Type: LED Module - Driver
• Max Wattage: 12.00
• Canopy Extension: 0.58
• Canopy Width: 5
• Diameter: 5
• Height: 3.5
• Length: 2.35
• Width: 2.38
• ADA Compliant: Yes
• Country of Origin: China
• Energy Star Certified: Yes
• Installation Position: Ceiling/Wall
• Title 20 Compliant: Yes
• Title 24 Compliant: Yes
• Certifications: ETL, cETL, CSA
• IP Rating: IP44
• Location Rating: Closet Rated Damp, Wet Location Rated
• Finish: Black
• Lens Color: Clear
• Dimmer Type: Low Voltage Electronic
• Bulb Type: 1 x LED/12W/120V LED Integrated LED module
• Lumens per Watt: 75.00
• Canopy Shape: Round
• Canopy Diameter: 5"
• Canopy Thickness: 0.25"
• Driver Location: Fixture
• Shade Diameter: 2.375"
• Title 24 (JA8) Compliant: Yes
• Product Segment: Lighting
