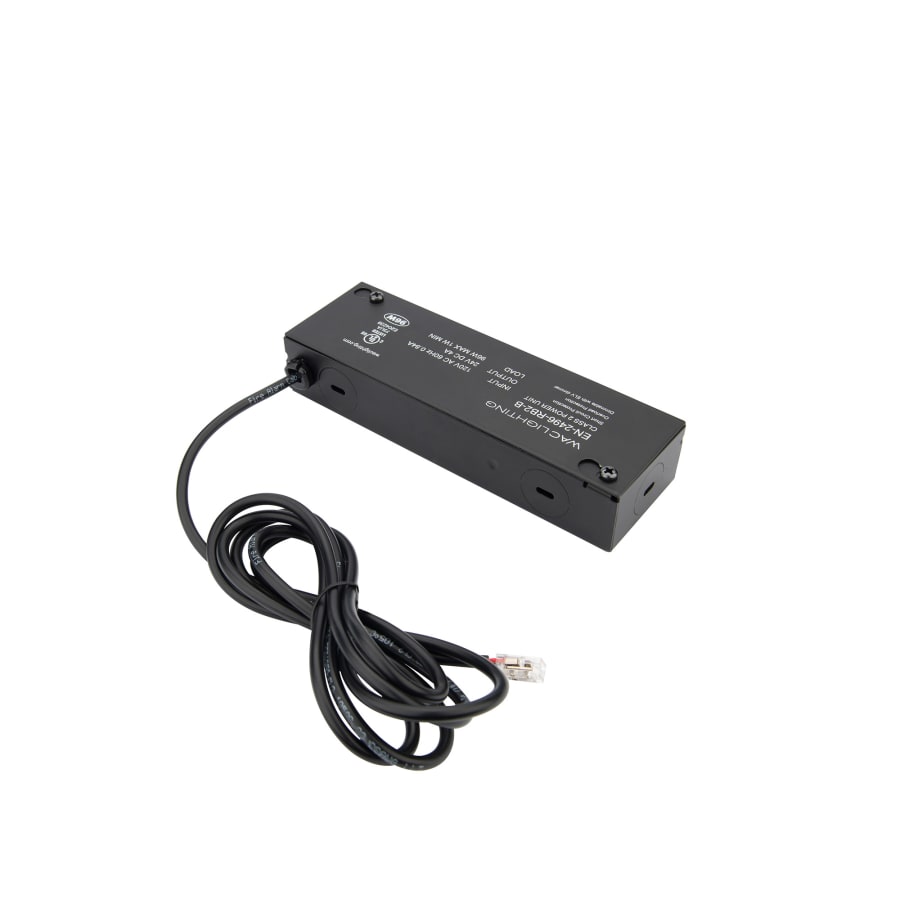

Wac EN-BT96-24 remote power supply 96W 120V/24VDC electronics transformer

Product Description

The WAC EN-BT96-24 is an electronic Class 2 transformer providing 96 Watts of power with a 120V input and 24VDC output. This remote power supply is designed to power InvisiLED Basics and Gemini Tape Light systems. It features an enclosed design, integrated lead wire, and is UL and cUL listed for damp locations. It supports dimming with ELV or TRIAC dimmers.

• Built-in auto reset, soft start, short, and overload circuit protection.
• Features 72-inch output lead wires and a low minimum load requirement of 1W for LED products.
• Secondary wiring for Class 2 transformers does not require conduit sheathed cable or clamp wiring techniques.

Product Highlights

This 96W Class 2 electronic transformer provides 24VDC output from 120VAC input, is UL/cUL listed for damp locations, and supports ELV/TRIAC dimming.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: EN-BT96-24
• Country of Origin: China

Technical Specifications

• Wattage: 96W
• Input Voltage: 120VAC
• Output Voltage: 24VDC
• Dimming: ELV, TRIAC, 0-10V
• Rated Life: 50000 Hours
• Finish: Black
• Material: Aluminum
• Certifications: UL, cUL, IP20
• Collection: Basics & Gemini
• Location Rating: Damp Location
• Series: WAC Limited
• Product Type: DC Remote
• Bulbs Included: No
• CEC Listed: Yes
• Energy Star: Yes
• Wire Length: 72 inches
• Title 24 Compliant: Yes
