Wac EN-BT60-24 Basics & Gemini power supply 60W 6.5W x 1.25L x 1.63H inches

Product Description

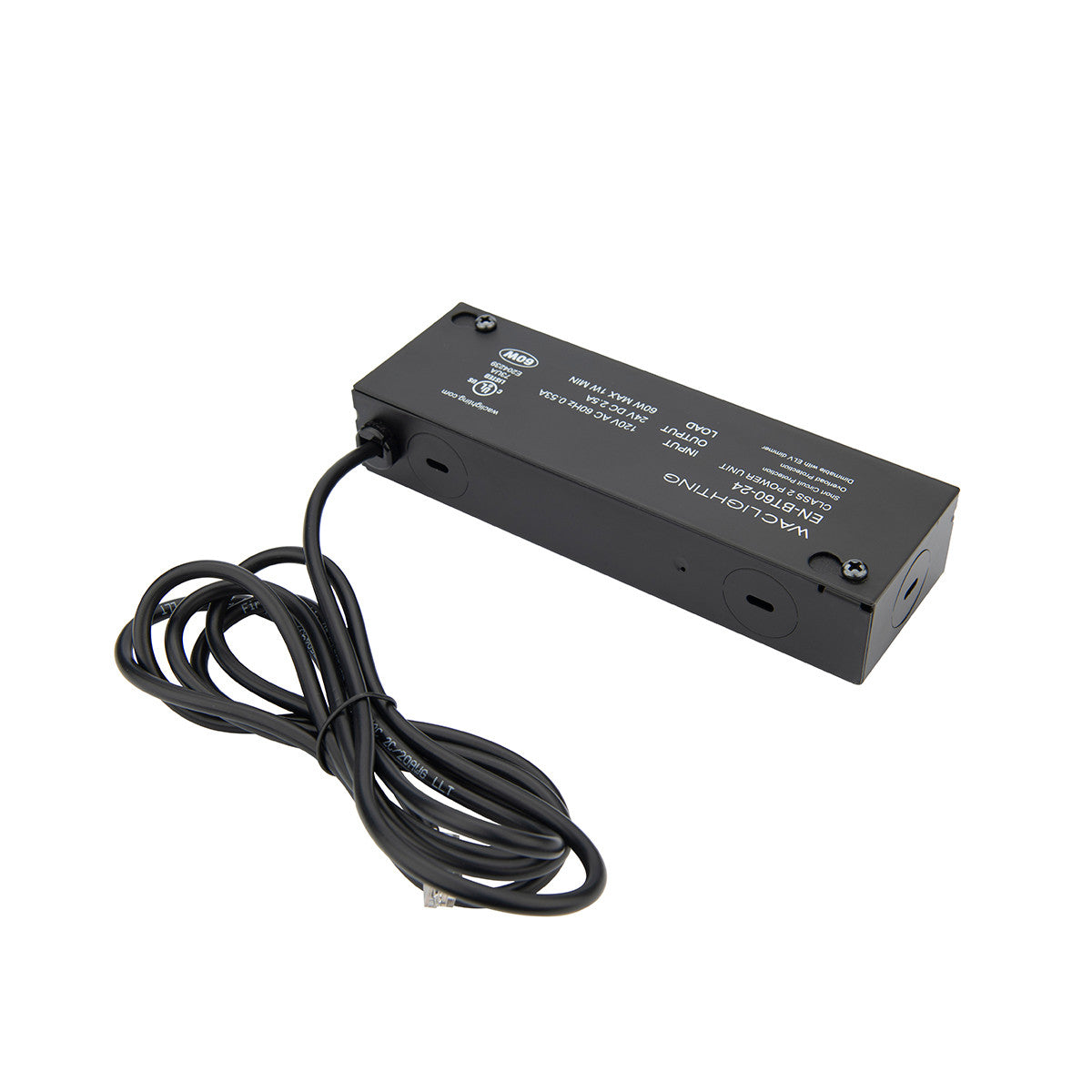

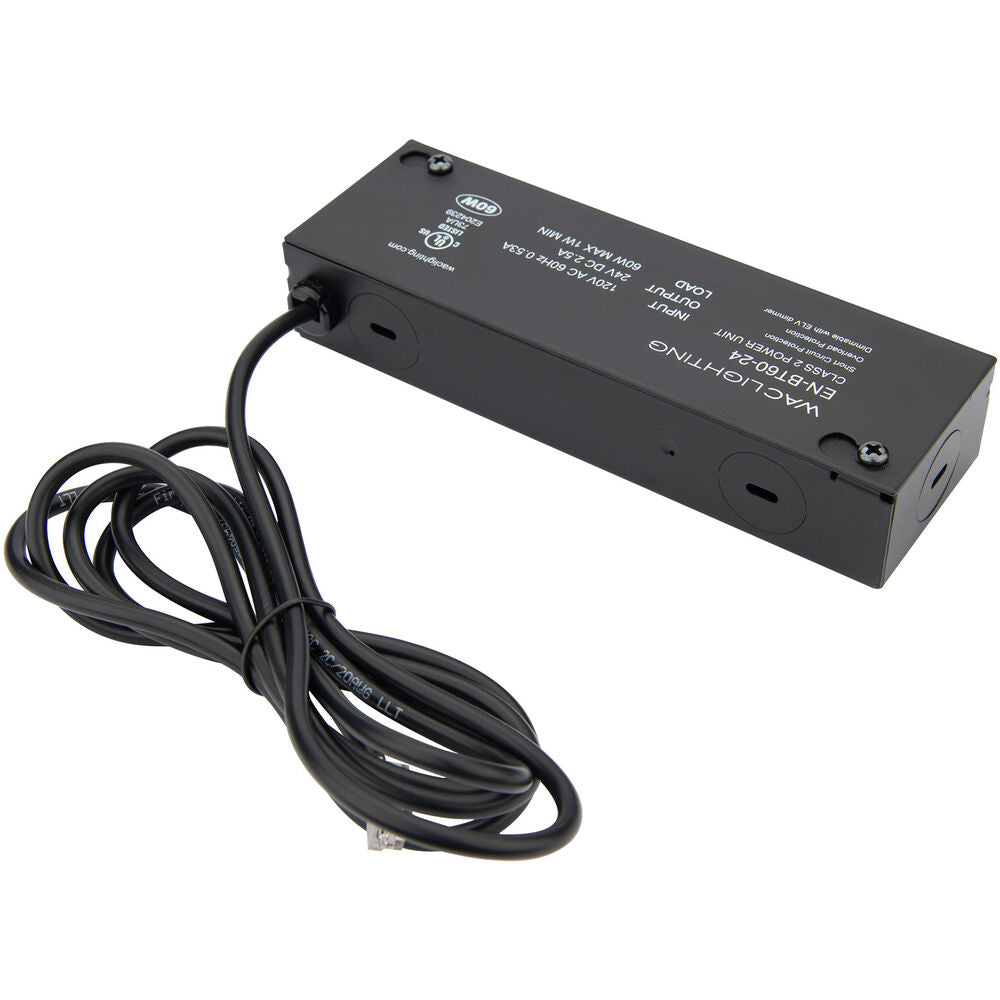

The WAC EN-BT60-24 is a Class 2, UL and cUL listed enclosed electronic transformer designed to power WAC Lighting Basics & Gemini Tape Light systems. This 60W power supply operates with a 120VAC input and provides a 24VDC output, featuring a low minimum load requirement of 1W for LED products. It supports smooth and continuous dimming with electronic low voltage (ELV) or TRIAC dimmers, which should be installed on the primary side. The unit is intrinsically safe, allowing no greater than 5 amps of current draw per compartment.

• UL & cUL Listed for Damp Locations IP20 rated, ensuring safety and durability.
• Features soft start, short, and overload circuit protection for enhanced reliability.
• Includes a 72-inch lead wire for Basics & Gemini Tape Light systems.

Product Highlights

This WAC EN-BT60-24 power supply is ideal for WAC Lighting Basics & Gemini Tape Light, offering safe, dimmable, and efficient 24VDC power.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: EN-BT60-24
• Country of Origin: Thailand

Technical Specifications

• Brand: WAC Lighting
• Category: Power Supply
• Product Type: Basics & Gemini 24VDC Remote Power Supply
• UPC: 790576821184
• Lead Wire Length: 72.00 Inches
• Max Wattage: 60W
• Material: Aluminum
• Power Source: Corded Electric
• Minimum Frequency: 50 Hz
• Input Voltage: 120VAC, 50/60Hz
• Output Voltage: 24VDC
• TRIAC Dimmable: Yes
• ELV Dimmable: Yes
• Wiring Type: Hardwired
• Life Hours: 50000
• Certifications: UL, cUL, IP20 Damp
• Product Line: InvisiLED Basics
