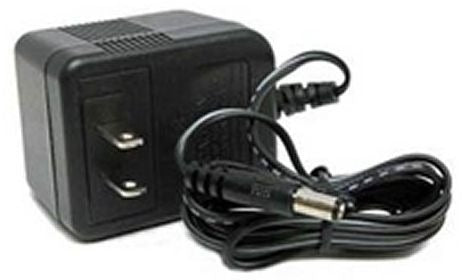

w-t2000 Plug-in Dc Power Supply 12V 2A 2.1mm Coax

Product Description

The w-t2000 is a regulated switching DC power supply designed to deliver stable 12-volt, 2-amp output from a standard 120-volt AC wall outlet. It connects via a 2.1mm coaxial plug and maintains constant voltage across the full rated load of 2 amps, making it well suited for applications that draw continuous or high-burst current. The regulated switching design reduces heat and improves efficiency compared to linear supplies. This unit is UL Listed and intended for professional installation in low-voltage DC power applications.

The w-t2000 is commonly used to power DC security cameras, particularly those equipped with high-output infrared illuminators or integrated heaters that demand a stable, higher-amperage power source. The regulated output ensures that voltage does not sag under load, which is critical for consistent IR illuminator performance and camera reliability. It is suitable for both residential and light commercial installations where a plug-in, wall-mount power supply is the preferred method of powering individual DC devices.

Key Features

• Regulated switching design maintains constant 12 volts DC up to the full 2-amp rated load
• 2.1mm coaxial output plug for direct connection to standard DC camera power inputs
• Accepts 120-volt AC input from a standard wall outlet
• UL Listed for use in professional low-voltage installations
• Compact plug-in form factor eliminates the need for a separate mounting enclosure

Compatibility

Designed as a plug-in replacement power supply for DC-powered security cameras and devices requiring a 12-volt, 2-amp regulated supply with a 2.1mm coaxial connector, including those equipped with high-power infrared illuminators or internal heaters.

Installation Notes

Installation is typically performed by a low-voltage technician or licensed electrician in accordance with NEC low-voltage wiring guidelines. Verify that the connected device accepts 12 volts DC and uses a 2.1mm center-positive coaxial connector before plugging in. Disconnect the power supply from the AC outlet before making or breaking the DC coaxial connection to the camera or device. Do not exceed the 2-amp rated output by connecting multiple devices in parallel without verifying total current draw.

Technical Specifications

• Input Voltage: 120 volts AC
• Output Voltage: 12 volts DC
• Output Current: 2000 mA (2 amps)
• Output Connector: 2.1mm coaxial plug
• Power Supply Type: Regulated switching
• Certifications: UL Listed

Standard Information

• Brand: GENERIC / UNBRANDED
• Manufacturer Part Number: w-t2000
