Burner 185000 BTU 19.5 inches 7 inches for Vulcan Hart VH844516-16

Product Description

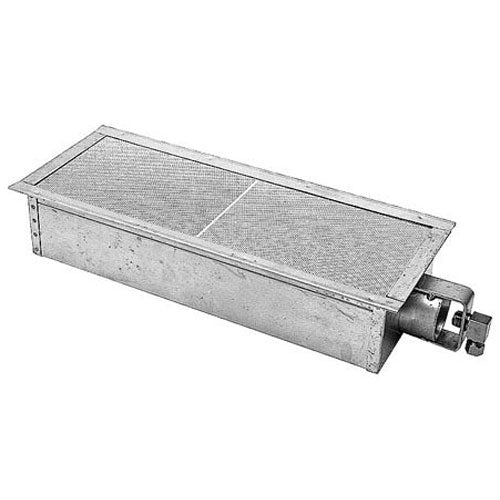

This item for Vulcan Hart VH844516-16 is an infrared burner with a power output of one hundred eighty-five thousand BTU. It features a ceramic burn area and is designed for various broiler models including Garland and US Range. The burner dimensions include a length of nineteen and one-half inches, width of seven inches, and height of three and three-tenths inches.

• Infrared burner for efficient heating
• Can substitute for Jade Burner # 26-3690
• Compatible with several broiler brands

Product Highlights

This burner provides reliable performance and is suitable for commercial kitchens.

Product Information

Standard Information

• Weight: 7.4 pounds
• Dimensions: 19.5 x 7 x 3.3 inches

Technical Specifications

• BTU Rating: 185,000
• Orifice Size: #46
• Ceramic Burn Area: 15.25 x 5.25 inches
• Top of Box Dimensions: 16.75 x 6.75 inches
• Box Dimensions: 15.625 x 5.75 inches
• Model Compatibility: Garland, Rankin-Delux Broiler RDCM 15
• Additional Compatible Models: Vulcan Broiler ICM, US Range Cheesemelter
