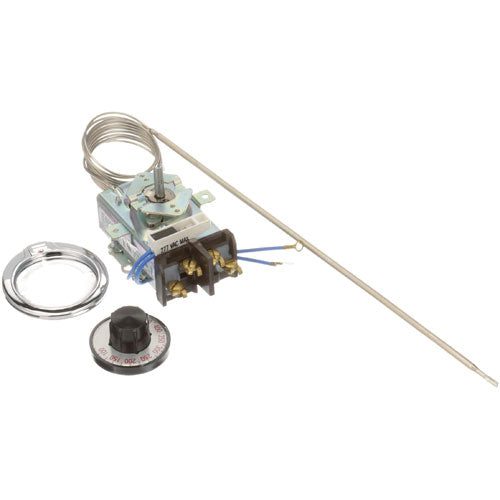

THERMOSTAT W/DIAL D1/D18, 3/16 X 13, 60 for Vulcan Hart VH4746

Product Description

This item for Vulcan Hart VH4746 is a thermostat with a dial designed for D1 and D18 applications. It features a bulb size of three sixteenths inches by thirteen inches and operates within a temperature range of one hundred to four hundred fifty degrees Fahrenheit.

• Mounting with front ears for stability.
• Includes pilot light, dial, and bezel.
• Four terminals for easy connectivity.

Product Highlights

This thermostat is essential for precise temperature control in Vulcan grill series units. It is compatible with models without a 'D' suffix.

Product Information

Standard Information

• Temperature Range: 100-450 °F
• Bulb Size: 3/16 x 13 inches

Technical Specifications

• Capillary Length: 60 inches
• Mounting Type: Front ears
• Pilot Light Number: 38-1068
• Dial Number: A249, K-115, # 22-1004 OFF-450-100
• Bezel Number: A557, K-160, # 26-4088
• Dimensional Weight: 2.576 lbs
• Actual Weight: 1.84 lbs
• Length: 13.75 inches
• Width: 4.125 inches
• Height: 3.5 inches
