Von Duprin XP98EO-626-36 Rim Panic Device 36inch

Product Description

The Von Duprin XP98EO-626-36 is a Grade 1 Extra Protection Rim Exit Device designed for exit-only purposes. This device has a wide stile pushpad to facilitate easy access during an emergency. It features a smart latch that adapts to external forces, ensuring maximum security. The patented latch bolt design helps maintain contact despite potential frame twisting. This exit device is suitable for various door types including Aluminum, Hollow Metal, and Wood.

• Smart latch changes shape under external forces for security.
• Patented latch bolt design for durability.
• Compatible with multiple door types.

Product Highlights

Product Information

Standard Information

• Device Function: EO - Exit Only
• Door Width: 36 inches

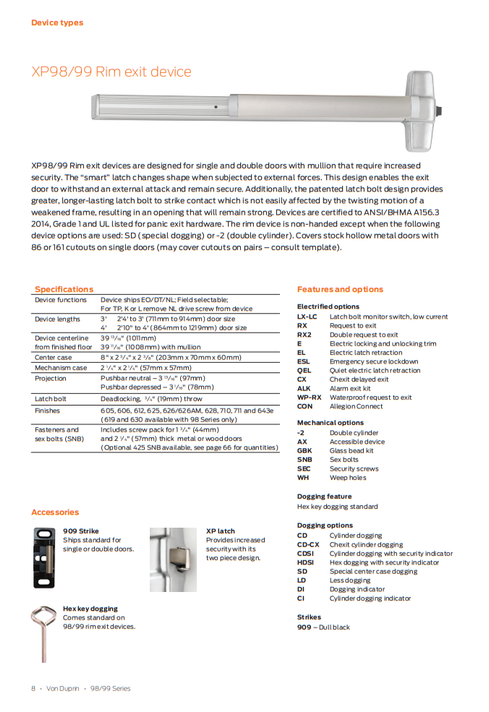

Technical Specifications

• Device Lengths: 3 feet (711mm to 914mm)
• Centerline from Finished Floor: 39 13/16 inches (1011mm)
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism Case Size: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection: Pushbar neutral 3 13/16 inches (97mm), depressed 3 1/16 inches (78mm)
• Latch Bolt: Deadlocking, 3/4 inches (19mm) throw
• Finishes Available: 605, 606, 612, 625, 626/626AM, 628, 710, 711, and 643E
• Model: Von Duprin XP98EO
• Field Reversible Handing: Yes
• Door Types: Aluminum, Hollow Metal, Wood
• Exit Device Type: Rim
• Dogging: Cylinder
• Bar Style: Push Bar
