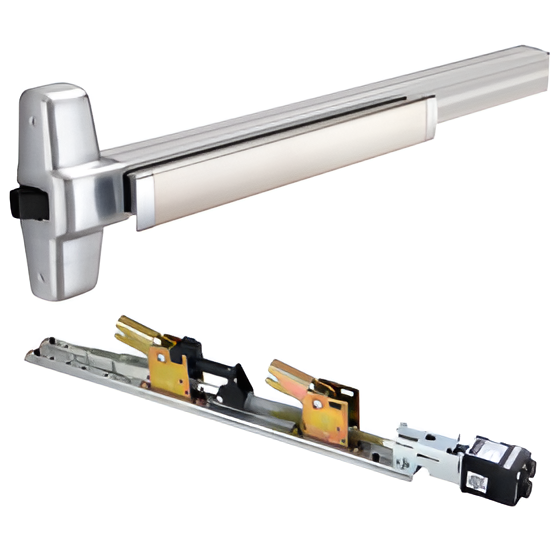

Von Duprin QELA-99EO-626 36 QEL Rim Exit Device

Product Description

The Von Duprin QELA-99EO-626 36 is a rim exit device with quiet electric latch retraction (QEL), designed for high-traffic environments. UL listed for panic exit hardware and certified to ANSI A156.3 Grade 1, it meets high safety and performance standards. Suitable for exit-only applications in schools, hospitals and government facilities.

• Features QEL (Quiet Electric Latch Retraction)
• Designed as a rim exit device for easy installation
• Offers Grade 1 certification for robust security

Product Highlights

This exit device combines security, ease of use, and quiet operation, making it ideal for high-demand environments.

Product Information

Standard Information

• Brand: VON DUPRIN
• Manufacturer Part Number: QELA-99EO-626 36

Technical Specifications

• Alternate Part Number-1: 172965
• Handing: Field Reversible
• Function: Exit Only
• Door Width: 36"
• Options: Motor Driven Quiet Electric Latch Retraction
• Door Type: Aluminum, Hollow Metal, Wood
• Exit Device Type: Rim
• Dogging: None
• Bar Style: Push Bar
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths: 3' - 2'4" to 3' (711mm to 914 mm) Door size 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39-13/16" (1011 mm) 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection: Push bar neutral – 3-13/16" (97 mm) Push bar depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. (optional 425 SNB available)
• Electrical Options: LX: Latch bolt monitor switch RX: Request to exit RX2: Double request to exit E: Electric locking and unlocking trim EL: Electric latch retraction ESL: Emergency secure lockdown QEL: Quiet electric latch retraction SS: Signal switch CX: Chexit delayed exit ALK: Alarm exit kit WP-RX: Waterproof request to exit CON: Allegion Connect
• Mechanical Options: -2: Double cylinder -2SI: Double cylinder with security indicator AX: Accessible device GBK: Glass bead kit PN: Pneumatic latch retraction QM: Quiet mechanical SNB: Sex bolts SEC: Security screws WH: Weep holes XP: Extra protection
• Dogging Feature: Hex key dogging standard
• Dogging Options: CD: Cylinder dogging CD-CX: Chexit cylinder dogging CDSI: Cylinder dogging with security indicator HDSI: Hex dogging with security indicator SD: Special center case dogging LD: Less dogging DI: Dogging indicator CI: Cylinder dogging indicator
• Strikes: 299 – Dull black
• Standard Trim: EO: No outside trim. Exit only DT: Dummy trim. Pull when dogged (not recommended for fire device) NL: Night latch Key retracts latchbolt Rim and 1-1/4" mortise cylinder NLOP: Night latch. Key retracts latchbolt, pull required TP: Thumbpiece Key locks and unlocks Rim and 1-1/4" mortise cylinder TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim) K/L: Knob/Lever Key locks and unlocks Rim and 1-1/4" mortise cylinder Handed, reversible lever Electrified lever operation available KDT/LDT: Knob/lever dummy trim. Pull when dogged KNL/LNL: Knob/lever, night latch Key retracts latchbolt Rim and 1-1/4" mortise cylinder Handed, reversible lever KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder) TL: Turn lever Key locks and unlocks (use with DT trim) 1-1/4" mortise cylinder TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim) TLOP: Turn lever, optional pull HL: Hospital latch Key locks and unlocks 1-1/4" mortise cylinder
• Finishes: 605 - Bright brass 606 - Satin brass 612 - Satin bronze 625 - Bright chrome 626/626AM - Satin chrome 628 - Aluminum, anodized 710 - Duranodic dark bronze 711 - Matte black/anodized 643e - Aged bronze
• Alternate Codes: VONQEL99EO 3 26D, VONQEL-99EO-626-36
• Category: Electrified Panic Devices, Panic Devices & Exit Alarms
• Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
• Device Width: 36"
• Door Application: Panic Devices & Exit Alarms
• Electrical Option: Electric Latch Retraction, Quiet
• Exit Device Category: Rim Exit
• Finish Code: 626
• Finish Color: Brushed Chrome, Satin Chrome
• Grade: Grade 1
• Manufacturer: Von Duprin
• Series: 98/99
• Strike Type: Standard
