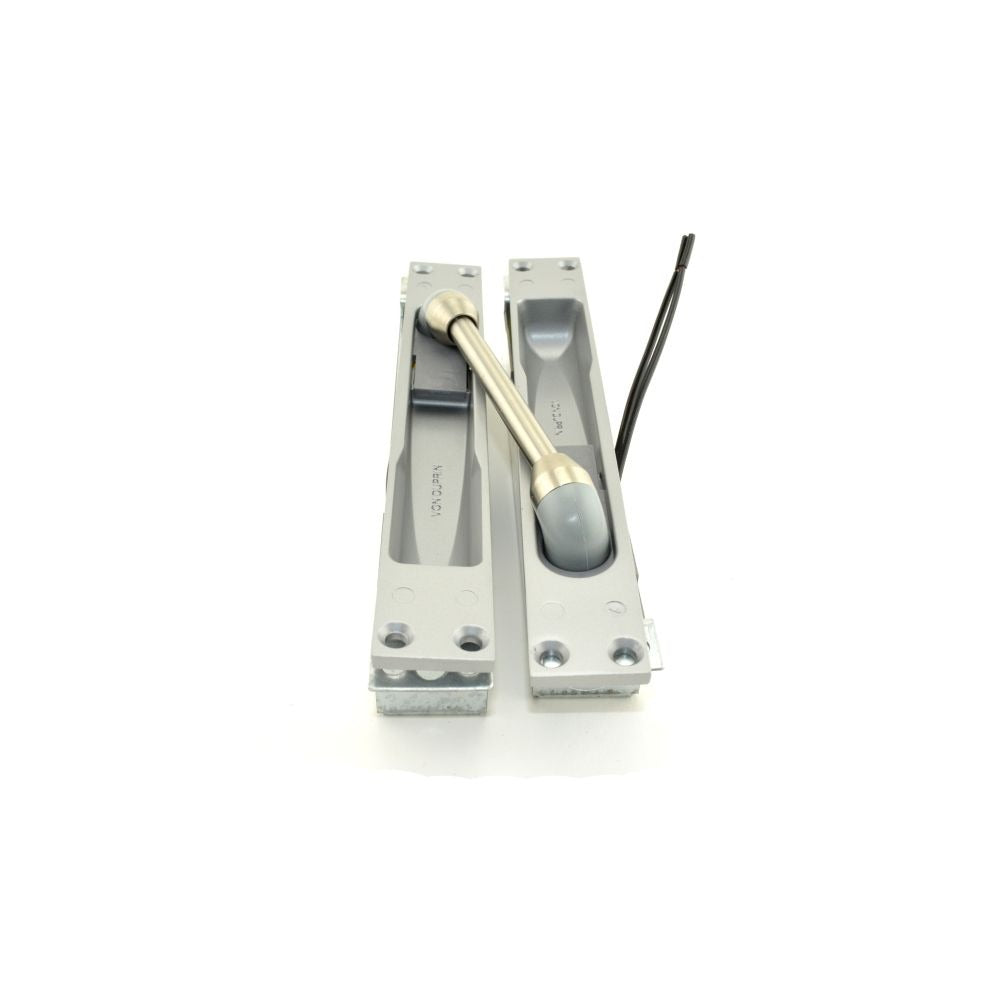

Von Duprin EPT228 Electric Power Transfer 628 Aluminum

Product Description

The VON DUPRIN EPT228 is an electric power transfer device designed to carry low-voltage electrical signals and power across an active door hinge point. It integrates into door assemblies equipped with electrified exit devices or access control hardware, routing current from the frame side of the door to the door-mounted hardware without exposed wiring. The unit ships with two 18-gauge wires and features a 628 anodized aluminum finish. It is typically installed by licensed locksmiths, door hardware technicians, or security integrators working on commercial or institutional door systems.

The EPT228 is suited for commercial and institutional applications where electrified exit devices, electric latch retraction, or door-mounted access control readers require a clean, concealed wiring path across the hinge point. Typical installations include office buildings, schools, hospitals, and government facilities where code-compliant electrified door hardware is required. The anodized aluminum finish coordinates with standard aluminum door and frame finishes common in commercial construction.

Key Features

• Transfers low-voltage power and signal across the active door hinge point
• Includes two 18-gauge wires for electrical connection
• 628 anodized aluminum finish for compatibility with standard commercial door hardware
• Compact profile at 10.5 inches long, 4.2 inches wide, and 1.8 inches tall
• Sold as a single unit for straightforward procurement

Compatibility

Designed as an OEM-style electric power transfer for use with electrified exit devices and access control door hardware requiring hinge-point wiring solutions in commercial door assemblies.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed locksmith familiar with electrified door systems. Disconnect and lock out all power to the door hardware before beginning work. Follow applicable local codes and manufacturer guidelines for low-voltage wiring routed through door assemblies. Verify wire gauge and current ratings of connected hardware are compatible with the 18-gauge conductors supplied.
