VON DUPRIN AX-PA-9927EO-626-36-LBR SVR Grooved Exit Device 36inchx84inch LBR

Product Description

The VON DUPRIN AX-PA-9927EO-626-36-LBR SVR Grooved Exit Device is suitable for single and double doors. It features a pushpad armor and is designed for emergency exit situations. This exit device is ANSI A156.3 Grade 1 certified and UL listed for panic exit hardware.

• Covers stock hollow metal doors with 86 or 161 cutouts

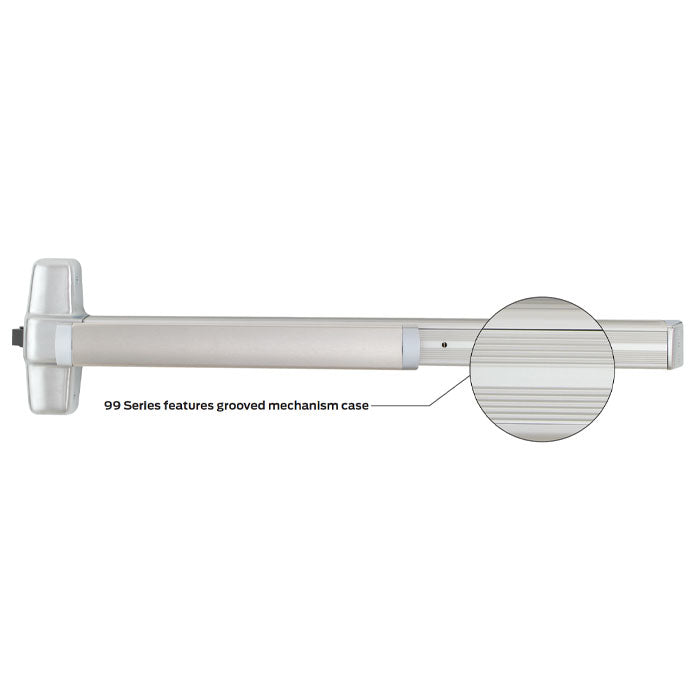

• Grooved case design
• Smooth mechanism for reliable operation

Product Highlights

This exit device enhances safety for exits by providing effective and reliable panic hardware.

Product Information

Standard Information

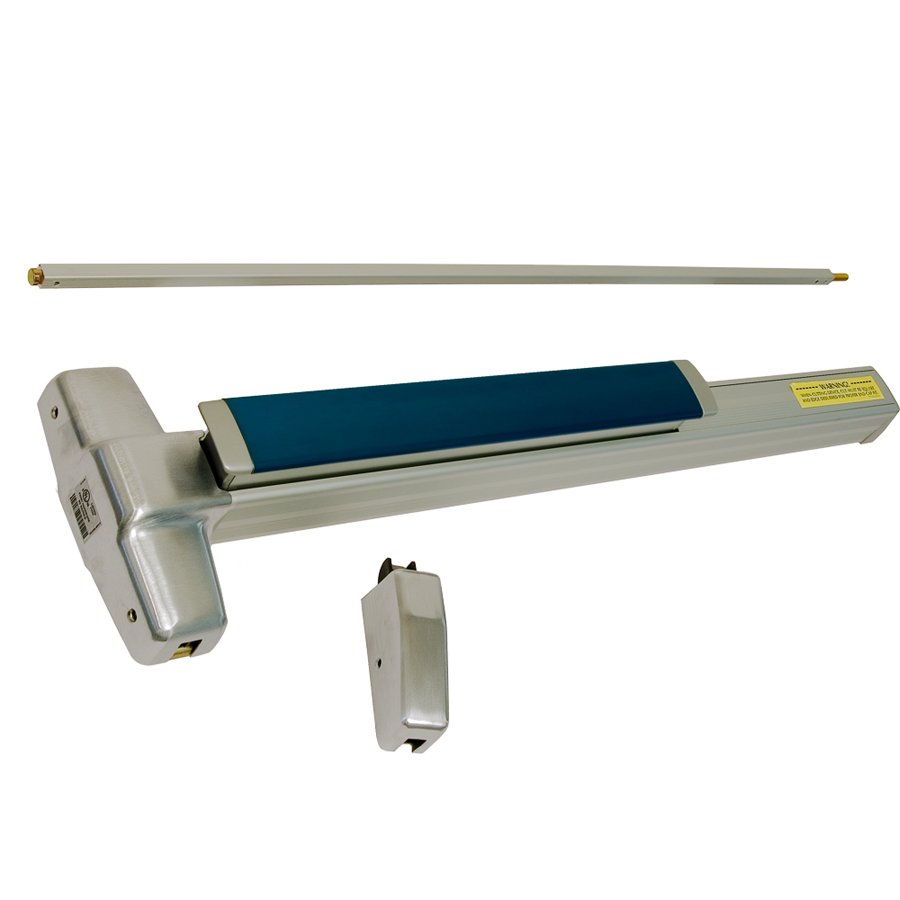

• Device Type: Surface Vertical Rod Device
• Product Type: Exit Device

Technical Specifications

• Length: 3 foot
• Device Height: 7 foot (84 inches)
• Mechanical Options: LBR-Less Bottom Rod
• Included Components: Screw Pack
• Standards: ANSI/BHMA A156.3-2014 Grade 1 certified; ANSI/UL 305; CAN/ULC-S132
• Bolt Throw: Top and Bottom Bolt 5/8 inches
• Latch Type: Deadlocking
• Application: Single and double doors; Higher education; K-12 schools; Hospitals; Hospitality; Government buildings
• Finish Code: 626/US26D
• ANSI Function: 01
• Device Rating: Panic Exit Hardware
• Finish Family: Satin Chrome
• For Door Width: 28 inches to 36 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches
• Function Family: Exit Only-No Trim
• Device Bar Projection: 3-13/16 inches Pushbar neutral; 3-1/16 inches Pushbar Depressed
• Center Case Dimensions: 8 inches x 2-3/4 inches x 2-3/8 inches
• Device Centerline From Finished Floor: 39-5/8 inches
• Stile: Wide Stile
• Manufacturer: Allegion
