Von Duprin 99EO3134 Rim Exit Device 4 Foot Dark Bronze

Product Description

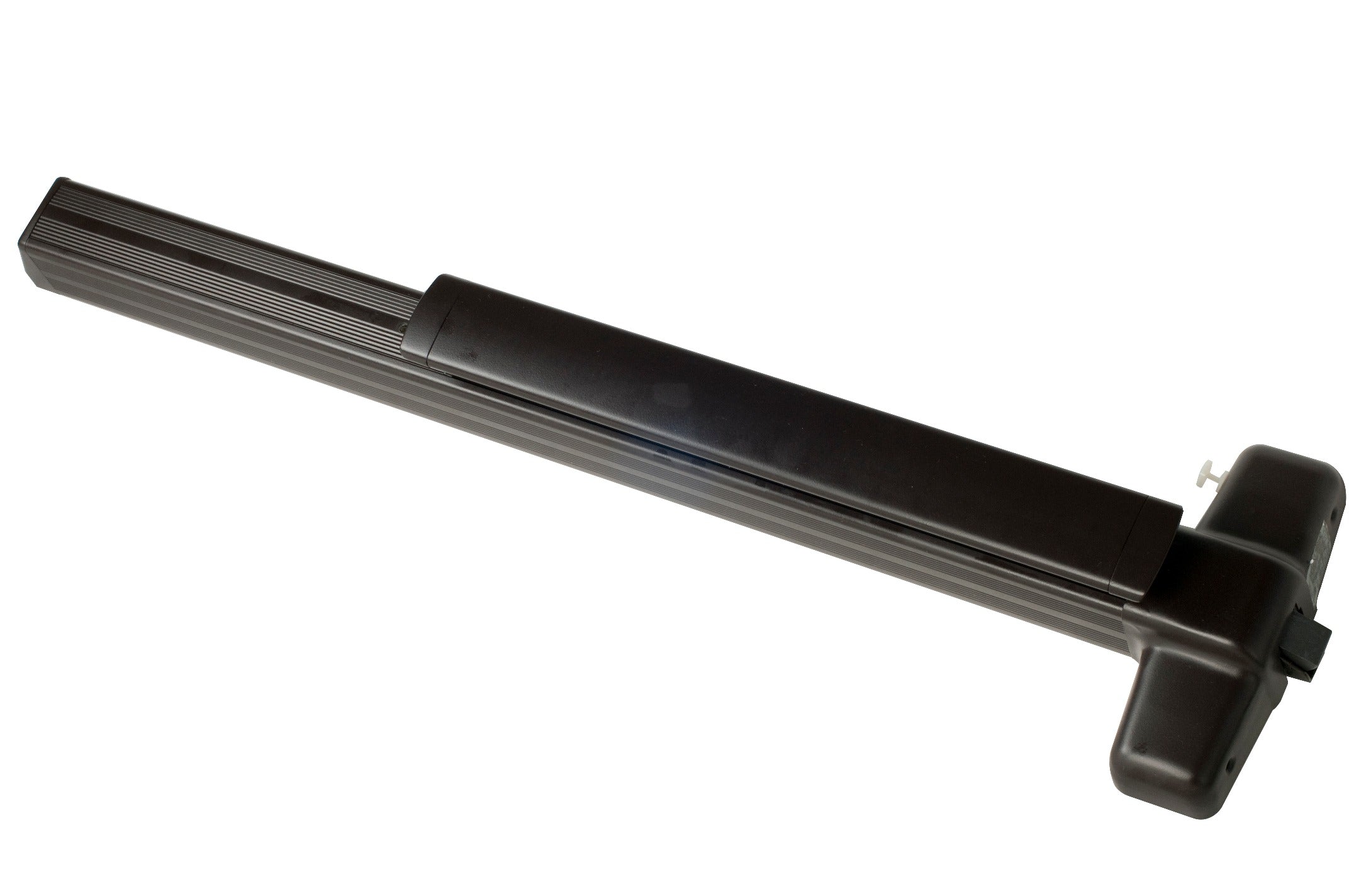

The VON DUPRIN 99EO3134 is a rim-mounted exit device with a grooved case profile, designed for single-door commercial applications requiring code-compliant panic hardware. Spanning 4 feet (48.8 inches in length), this device features a 710 Dark Bronze finish and is built for high-traffic public buildings such as schools, hospitals, and office facilities. It is installed by licensed locksmiths or commercial door hardware specialists and is engineered to meet demanding egress requirements without sacrificing long-term reliability. The unit weighs 15.4 pounds and ships as a single assembly.

This exit device is suited for commercial and institutional single-door installations where rim-style panic hardware is required. The grooved case design accommodates a clean architectural profile while maintaining the structural integrity needed for high-cycle use. Typical applications include stairwell doors, corridor doors, and primary egress paths in public or semi-public facilities. It is commonly specified on hollow metal and wood door assemblies in new construction and retrofit projects.

Key Features

• Rim-mount configuration for single-door egress applications
• Grooved case profile for a low-profile architectural appearance
• 710 Dark Bronze finish for durability and aesthetic consistency
• 4-foot bar length spanning 48.8 inches to cover standard commercial door widths
• Heavyweight construction at 15.4 pounds, indicating robust internal components
• Sold as a single unit (EA), compatible with standard commercial door hardware rough-in

Compatibility

Designed as an OEM-style rim exit device for standard commercial single-door egress applications. Confirm door width, backset, and frame preparation against job specifications before ordering.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician familiar with applicable building and life-safety codes, including NFPA 101 and local egress requirements. Ensure the door is secured in its closed position and all electrical power to any associated access control hardware is disconnected before beginning installation. Verify door prep dimensions, strike alignment, and case mounting height per the manufacturer installation instructions. Do not modify the case or bar assembly in the field.
