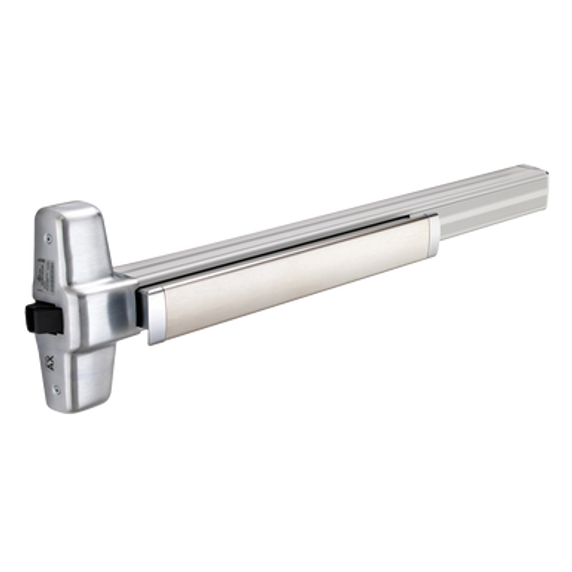

VON DUPRIN 99EO-F Rim Fire Exit Device Exit Only Fire Rated 48 inches

Product Description

The VON DUPRIN 99EO-F Rim Fire Exit Device is designed for heavy-duty use. This model is suitable for both single and double doors. It features a grooved mechanism case made from quality materials. Its fire-rated design ensures safety during emergencies.

• Heavy-duty construction suitable for various door types.
• Non-handed design except when specific options are selected.
• Includes a screw pack for easy installation on various door thicknesses.

Product Highlights

This exit device is ideal for commercial applications requiring reliable emergency egress. It complies with safety standards and is easy to install.

Product Information

Standard Information

• Manufacturer: Von Duprin
• SKU: 99EO-F

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Origin: USA
• UL Listing Type: UL 10C
• ANSI Number: A156.3
• Fire Rated: Yes
• Device Length: 48 inches
• Door Material: Metal or Wood
• Door Width: 34 inches - 48 inches
• Door Thickness: 1-3/4 inches - 2-1/4 inches

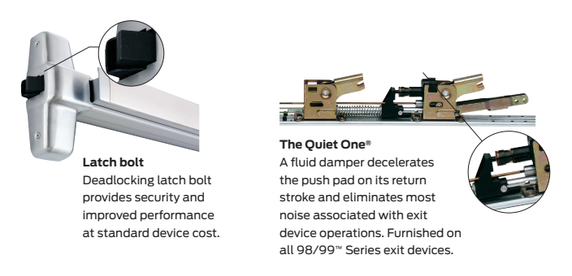

• Latch Bolt: Deadlocking, 3/4 inch throw
• Projection: Pushbar neutral 3 13/16 inches, Pushbar depressed 3 1/16 inches
