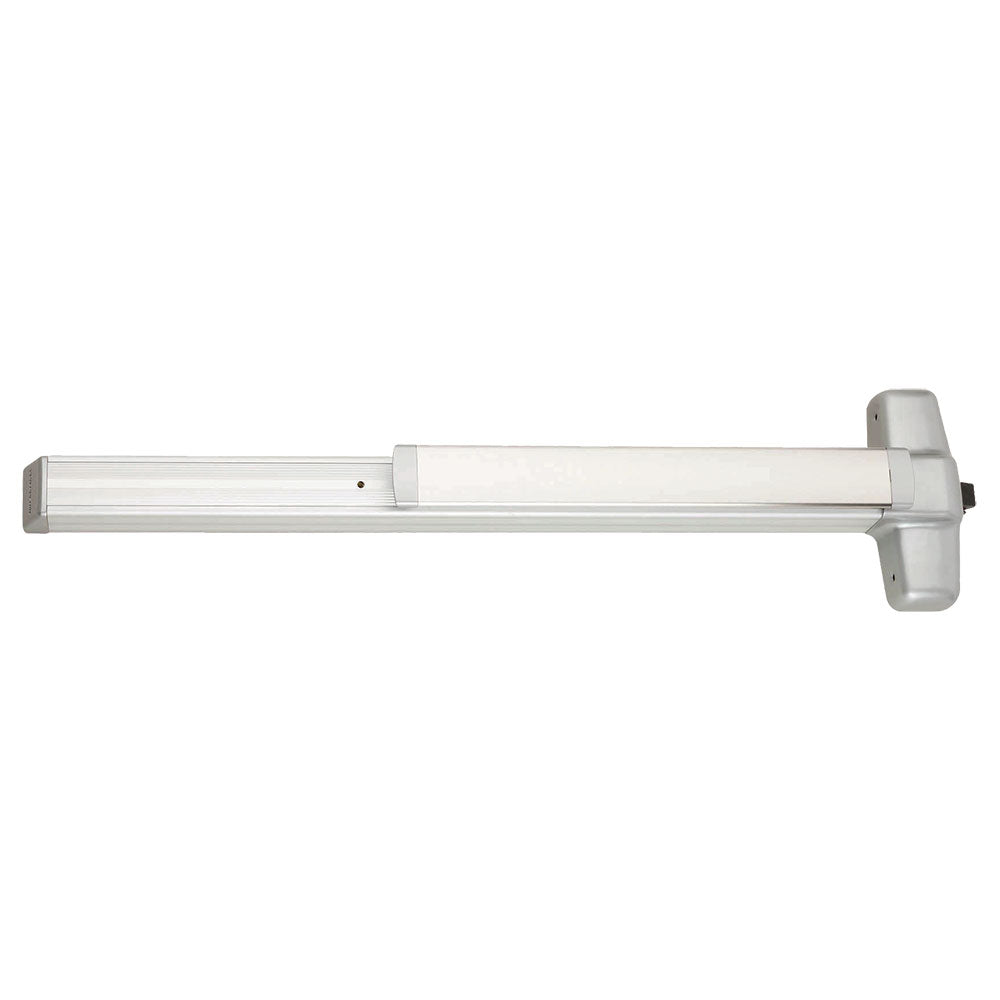

Von Duprin 99EO-628-36 Panic Rim Exit Device 36 inch

Product Description

The Von Duprin 99EO-628-36 is a Grade-1 rim exit device suitable for panic-rated exit applications. This device is ideal for use in high-demand environments like schools and hospitals. It adheres to ANSI A156.3 Grade 1 standards and is UL listed for safety. It features a deadlocking latchbolt and is compatible with single or double doors that include mullions.

• Grade-1 quality for heavy use in institutional settings
• Compatible with single and double doors

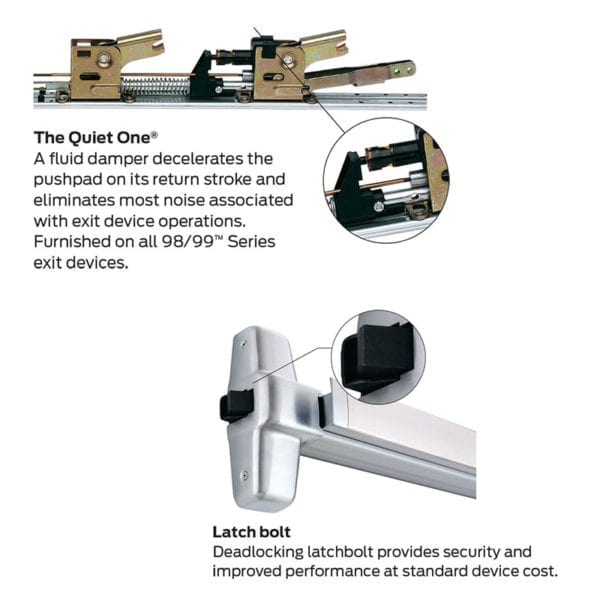

• Features a deadlocking latchbolt with 3/4 inch throw

Product Highlights

This exit device is built for durability and reliability, ensuring safe exit in emergencies.

Product Information

Standard Information

• Brand: Von Duprin
• Usage: Heavy Duty

Technical Specifications

• ANSI Grade: Certified ANSI A156.3-2001 Grade 1 standards
• Fire Rating: Non-Fire-Rated
• Hand: Non-handed
• Latchbolt: Deadlatching, 3/4 inch throw
• Dogging Feature: Half turn hex dogging standard
• Strike: 299 roller strike standard
• Stile Type: Wide (Standard)
• Center Case: 8 inch x 2-3/4 inch x 2-3/8 inch
• Fasteners: Screws included for metal and wood doors
• Door Applications: For doors 1-3/4 inch thick
• Function: Exit Only
• Door Width: 36 inch
• Door Type: Aluminum, Hollow Metal, Thick Metal, Wood
• Exit Device Type: Rim
• Dogging: Hex Key
• Bar Style: Push Bar
• Height: 5
• Length: 36.75
• Width: 10.5
