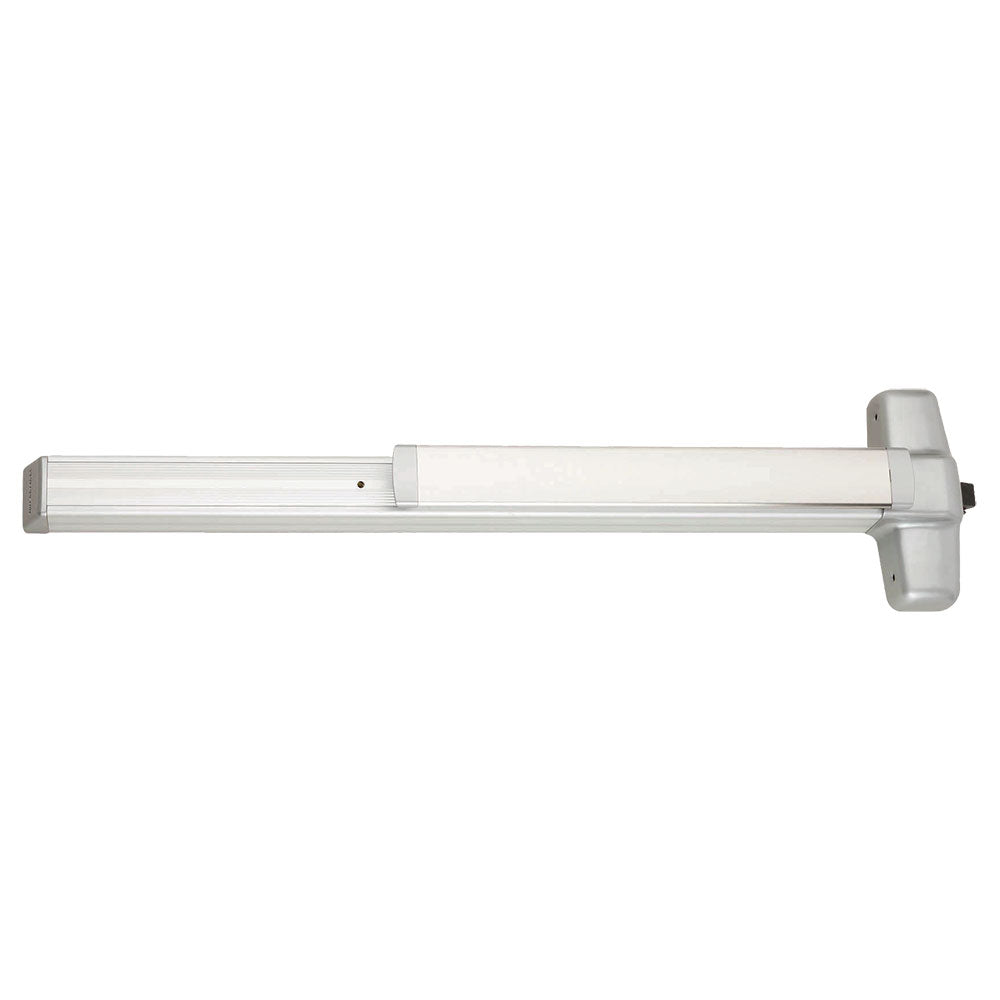

Von Duprin 99EO-605-36 Panic Rim Exit Device 36

Product Description

The Von Duprin 99EO-605-36 is a rim exit device designed for panic-rated, exit-only applications. This unit features a wide stile pushpad and is suitable for high-traffic environments. It is built to ANSI A156.3 Grade 1 standards and is UL listed for safety and reliability.

• Grade-1 Rim Exit Device
• Panic Rated for Exit Only
• Suitable for single or double doors with mullions

Product Highlights

This exit device is built to withstand heavy use. It comes with a hex key dogging feature and is designed for various door types, including aluminum, hollow metal, thick metal, and wood.

Product Information

Standard Information

• Brand: Von Duprin
• Usage: Heavy Duty

Technical Specifications

• ANSI Grade: Certified ANSI A156.3-2001 Grade 1 standards

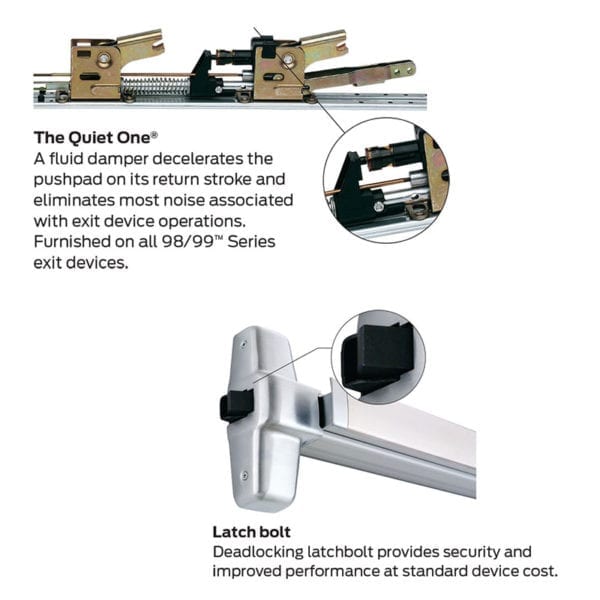

• Latchbolt: Deadlocking, 3/4 inch throw
• Dogging Feature: Half turn hex dogging standard
• Strike: 299 roller strike standard
• Door Applications: 1-3/4 inch Thick Doors
• Door Type: Aluminum, Hollow Metal, Thick Metal, Wood
• Device Length: 36 inch or 48 inch
• Installation: Commercial
