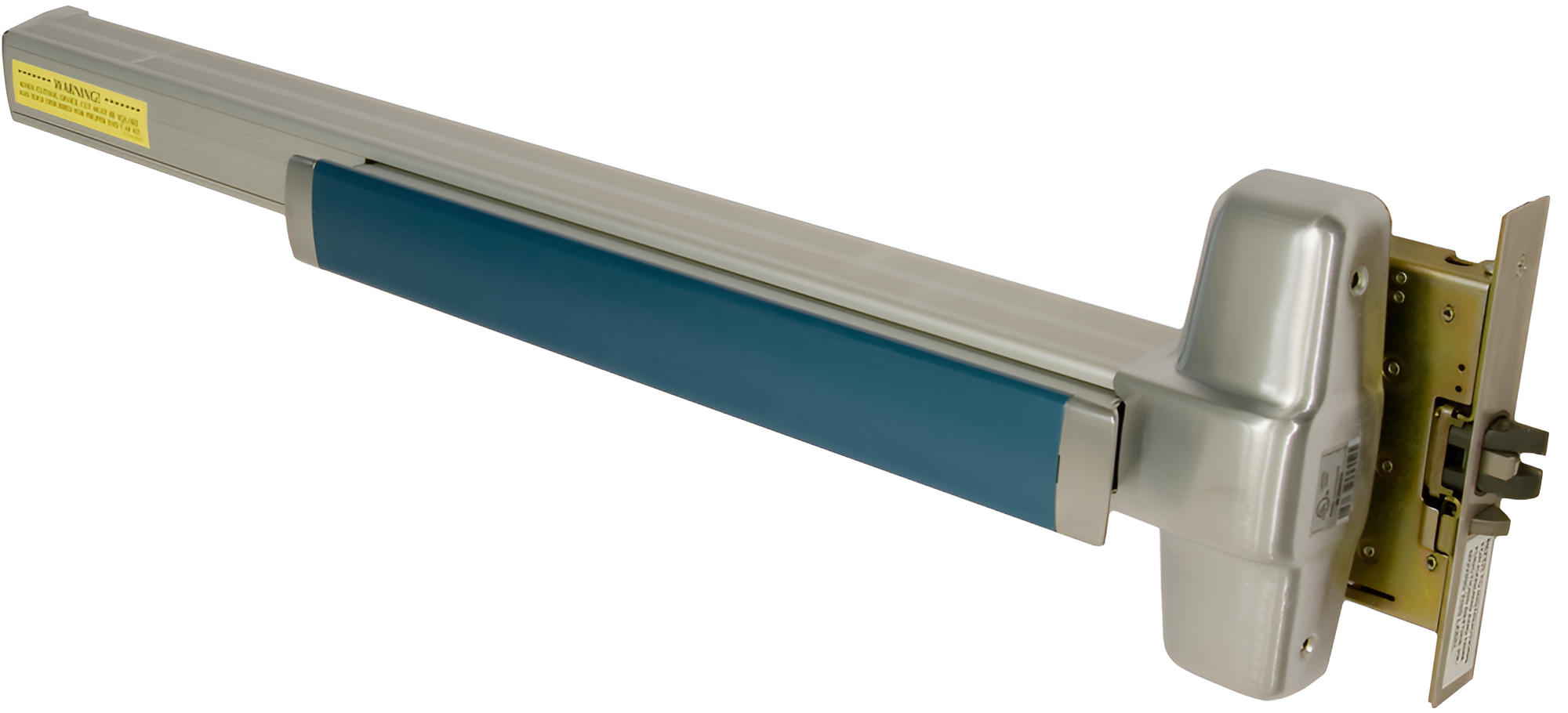

Von Duprin 9975EO-626-48 Mortise Lock Exit - Exit Only No Trim 48 inches Hex Dogging

Product Description

The Von Duprin 9975EO-626-48 is a mortise lock exit device designed for single or double doors. UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4"(121mm). The mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible. Includes screw pack for 1-3/4"(44mm) and 2-1/4"(57mm) thick metal or wood doors.

• Mortise Lock Exit Device
• Exit Only, No Trim, Required
• Reversible, 48", Hex Dogging

Product Highlights

This Von Duprin mortise lock exit device is field reversible and suitable for aluminum, hollow metal, and wood doors.

Product Information

Standard Information

• Brand: VON DUPRIN
• Manufacturer Part Number: 9975EO-626-48

Technical Specifications

• Alternate Part Number-1: 172234
• Handing: Field Reversible
• Function: Exit Only
• Door Width: 48"
• Door Type: Aluminum, Hollow Metal, Wood
• exit device type: Mortise
• Dogging: Hex Key
• Bar Style: Push Bar
