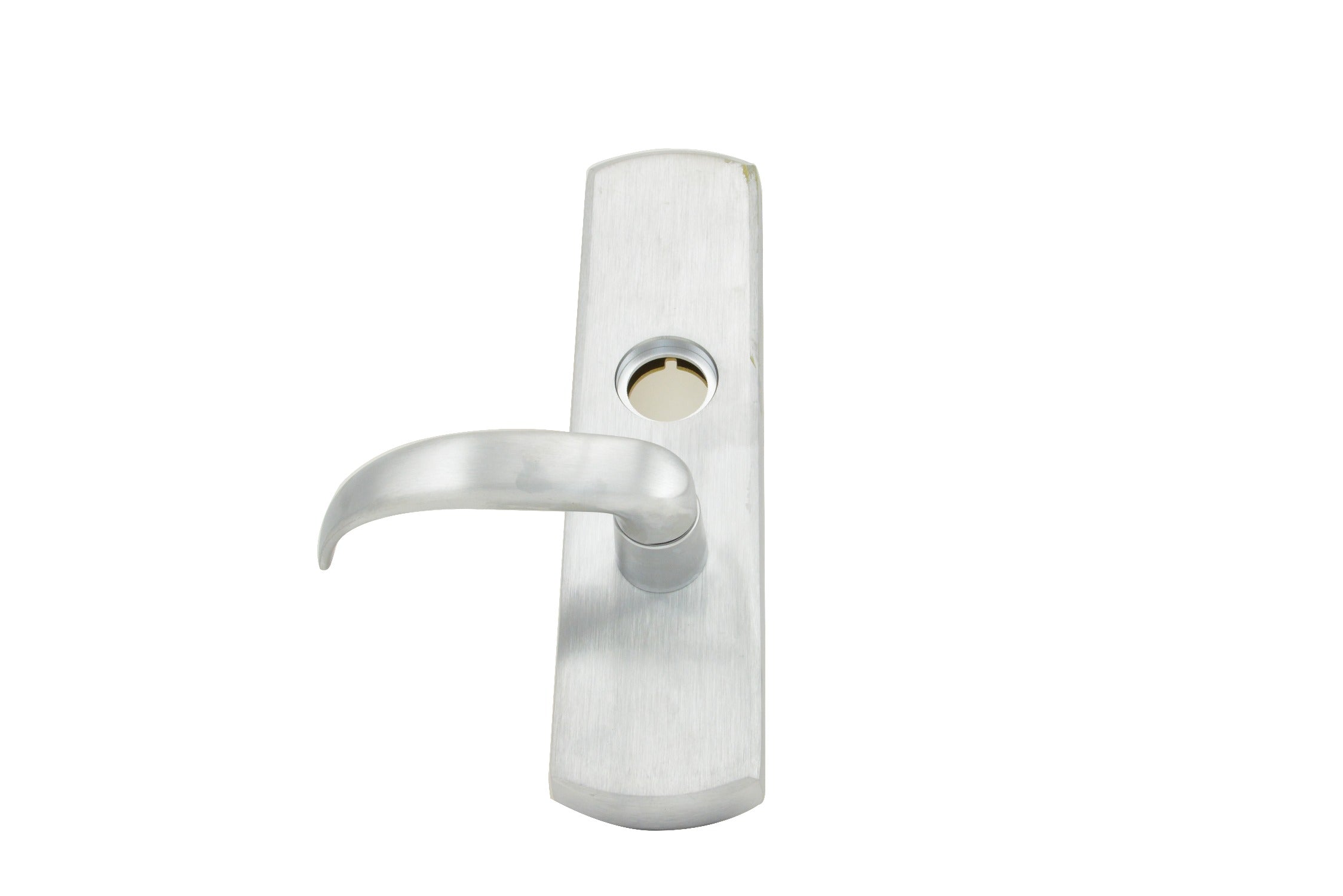

Von Duprin 996LR26DLHR17 Lhr Lever Trim 626 Satin Chrome

Product Description

The VON DUPRIN 996LR26DLHR17 is a left hand reverse lever trim designed to pair with Von Duprin 98 and 99 series rim or vertical rod exit devices. It mounts on the outside of the door and provides a lever handle for entry from the secure side, completing the lockset function of the panic hardware assembly. The trim ships in a 626 Satin Chrome finish and is configured with the 17 lever design. At 5.3 pounds and measuring 10.87 inches in length, 6.3 inches in width, and 4.72 inches in height, it is sized for standard commercial door applications. Licensed locksmiths, door hardware specialists, and commercial contractors are the typical installers.

This lever trim is intended for commercial and institutional door assemblies where panic exit hardware is required on the egress side and controlled entry is required from the opposite side. The left hand reverse (LHR) configuration applies to doors where the hinge is on the right when viewed from the secure side. Compatible exit device series include the Von Duprin 98 and 99 rim and vertical rod product lines. Typical installations include office buildings, schools, healthcare facilities, and other public occupancies subject to life-safety door hardware requirements.

Key Features

• Left hand reverse (LHR) handing for correct operation on appropriately configured doors
• 17 lever design provides a code-compliant, operable lever handle profile
• 626 Satin Chrome finish coordinates with standard commercial hardware finishes
• Designed to work with Von Duprin 98 and 99 series rim and vertical rod exit devices
• Sold as a single unit, ready for field installation

Compatibility

Designed for use with Von Duprin 98 and 99 series rim or vertical rod exit devices in a left hand reverse door configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial panic hardware assemblies. Verify door handing before ordering, as lever trim handing cannot be reversed in the field. Ensure the exit device is fully de-tensioned and the door is secured open before mounting trim components. Local building and fire codes, including IBC and NFPA 101, may govern hardware selection and installation requirements for life-safety egress doors.
