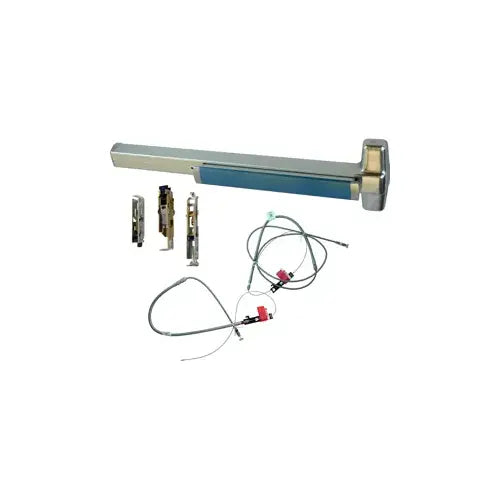

VON DUPRIN 9949EO-626-36 CVC Concealed Vertical Cable Exit Device 36

Product Description

The VON DUPRIN 9949EO-626-36 is a concealed vertical cable exit device. It is designed for exit-only functionality. This device is suitable for aluminum, hollow metal, and wood doors. It features hex key dogging and a push bar style for operation. When used on doors over eight feet, a top cable adjustable between nine feet two inches to ten feet four inches is necessary. This adjustment can be achieved using part number VON47250177.

• Field reversible handing
• Exit only function
• Compatible with various door types

Product Highlights

Reliable and effective exit device for emergency exits.

Product Information

Standard Information

• Handing: Field reversible
• Function: Exit only

Technical Specifications

• Door Width: 36 inches
• Door Type: Aluminum, hollow metal, wood
• Exit Device Type: CVC - Concealed vertical cable
• Dogging: Hex key
• Bar Style: Push bar
• Height: 4.92 inches
• Length: 39.37 inches
• Width: 10.43 inches
