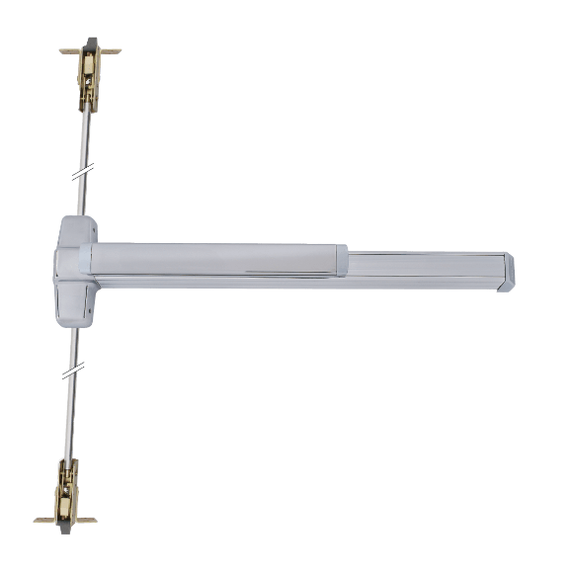

VON DUPRIN 9947EO-F-626-36 Fire Rated CVR Concealed Vertical Rod Exit Device 36

Product Description

The VON DUPRIN 9947EO-F-626-36 is a fire-rated concealed vertical rod exit device made for door exits. This exit only device meets the Grade 1 certification of ANSI/BHMA A156.3 2014 and is UL listed for fire exit hardware. It is suitable for doors that are thirty-six inches wide and up to one hundred inches high, with optional adjustable extension rod kits for taller doors.

• Fire Rated for safety and compliance
• Field reversible handing for easy installation
• Designed for exit only function

Product Highlights

Use this device for secure emergency exits. Its concealed installation provides a streamlined look while ensuring safety.

Product Information

Standard Information

• Brand: VON DUPRIN
• MPN: 9947EO-F-626-36

Technical Specifications

• Handing: Field Reversible
• Function: Exit Only
• Door Width: 36 inches
• Options: Fire Rated
• Door Type: Aluminum, Hollow Metal, Thick Metal, Wood
• Exit Device Type: CVR - Concealed Vertical Rod
• Dogging: None
• Bar Style: Push Bar
• Device Functions: EO - Exit Only
• Device Lengths: 2 feet
• Device Centerline from Finished Floor: 39 5/8 inches
• Latch Bolt: Deadlocking top and bottom bolt, 5/8 inch throw
• Door Undercut: 1/4 inch recommended
• Vertical Rods: Round 2-piece adjustable rods
• Fasteners: Includes screw pack for 1 3/4 inch to 2 1/4 inch thick metal doors
