VON DUPRIN 9947EO-711-48 CVR Exit Device 48inch

Product Description

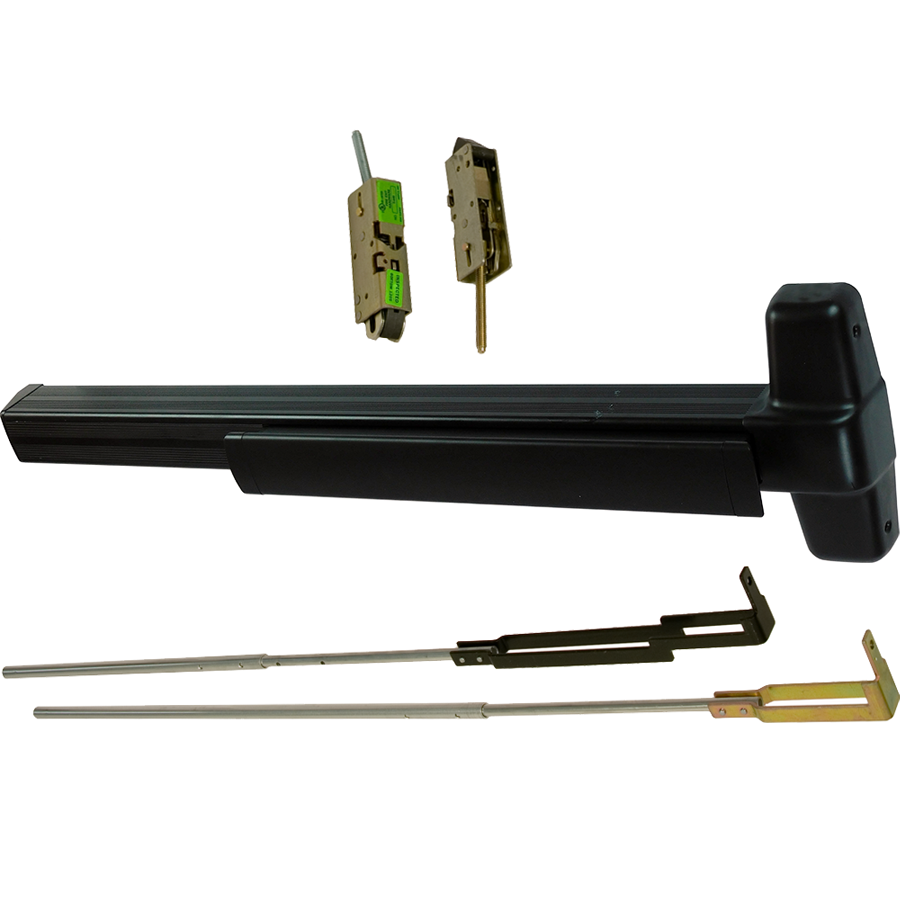

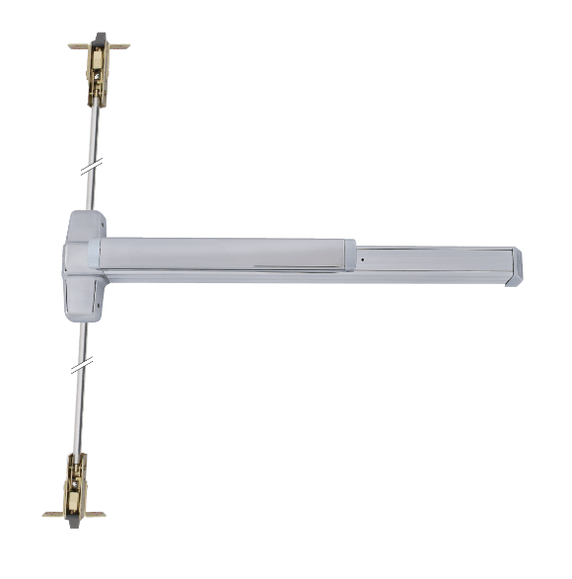

The VON DUPRIN 9947EO-711-48 is a Grade 1 concealed vertical rod exit device with exit-only functionality. It uses hex key dogging and allows for field-reversible handing. This device is ideal for aluminum, hollow metal, thick metal, and wood doors, accommodating door widths of forty-eight inches.

• Field reversible handing
• Exit only function
• Hex key dogging

Product Highlights

Product Information

Standard Information

• Brand: VON DUPRIN
• MPN: 9947EO-711-48

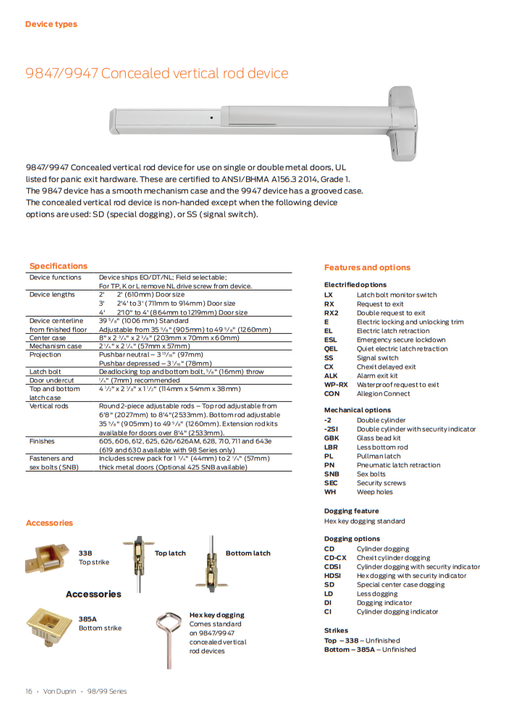

Technical Specifications

• Handing: Field reversible
• Function: Exit only
• Door Width: 48 inches
• Door Type: Aluminum, hollow metal, thick metal, wood
• Exit Device Type: CVR - Concealed Vertical Rod
• Dogging: Hex key
• Bar Style: Push bar
• Device Functions: EO - Exit Only
• Device Lengths: 3 feet, 2 feet 4 inches to 3 feet (711mm to 914mm)
• Device Centerline from Finished Floor: 39 5/8 inches (1006 mm) adjustable from 35 5/8 inches (905mm) to 49 5/8 inches (1260mm)
• Center Case: 8 inches x 2 3/4 inches x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism Case: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection: Pushbar neutral 3 13/16 inches (97mm), pushbar depressed 3 1/16 inches (78mm)
• Latch Bolt: Deadlocking top and bottom bolt, 5/8 inches (16mm) throw
• Door Undercut: 1/4 inches (7mm) recommended
• Top and Bottom Latch Case: 4 1/2 inches x 2 1/2 inches x 1 1/2 inches (114mm x 54mm x 38mm)
• Vertical Rods: Round 2-piece adjustable rods; top rod adjustable from 6 feet 8 inches (2027mm) to 8 feet 4 inches (2533mm), bottom rod adjustable 35 5/8 inches (905mm) to 49 5/8 inches (1260mm)
• Feature: Features grooved mechanism case
• Fasteners and Sex Bolts: Includes screw pack for 1 3/4 inches (44mm) to 2 1/4 inches (57mm) thick metal doors
• Model: Von Duprin 9947EO 3 US28, 9947EO 3 26D, 9947EO 3 313, 9947EO 3 315, 9947EO 3 US3, 9947EO 3 643E, 9947EO 3 32D, 9947EO 4 US28, 9947EO 4 26D, 9947EO 4 313, 9947EO 4 315, 9947EO 4 US3, 9947EO 4 643E, 9947EO 4 32D
