Product Description

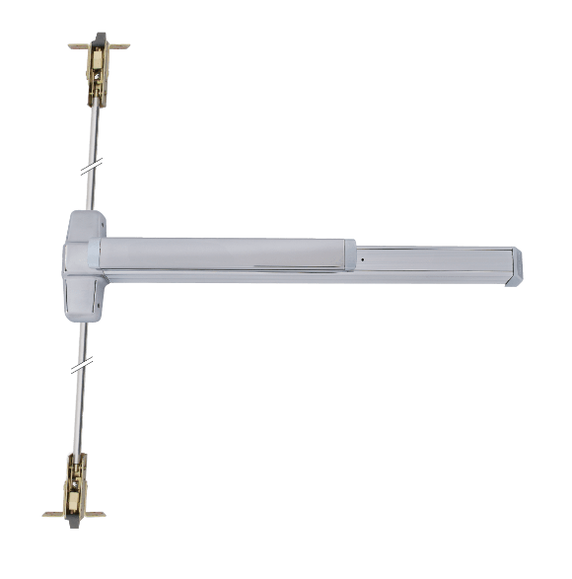

The VON DUPRIN 9947EO-711-36 is a CVR concealed vertical rod exit device that allows for secure exit-only functionality. This device is appropriate for doors measuring thirty-six inches wide. It is designed without trim and features hex key dogging.
- Grade 1 certified for reliability
- Field reversible handing for flexibility
- Compatible with aluminum, hollow metal, and wood doors
Product Highlights
The VON DUPRIN exit device is suitable for use in various applications, meeting safety standards while providing functionality.
Product Information
Standard Information
-
Handing: Field Reversible
-
Function: Exit Only

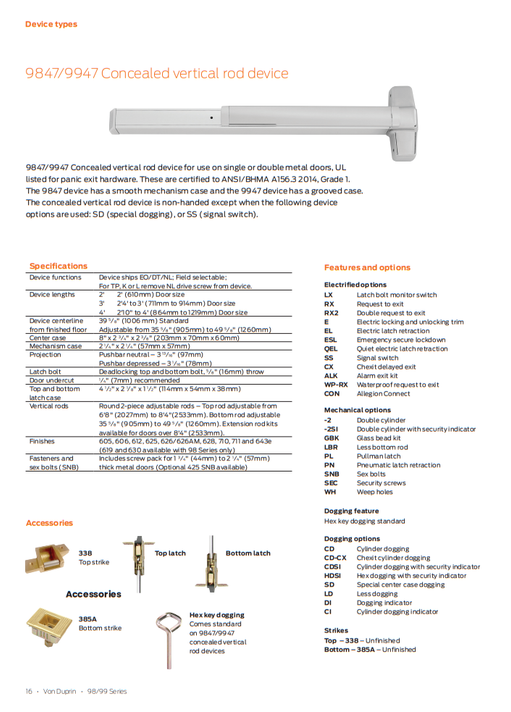

Technical Specifications
-
Door Width: 36 inches
-
Door Type: Aluminum, Hollow Metal, Wood
-
Exit Device Type: CVR - Concealed Vertical Rod
-
Dogging: Hex Key
-
Bar Style: Push Bar
-
Device Functions: EO - Exit Only
-
Device Lengths: 3 feet: 2 feet 4 inches to 3 feet; 4 feet: 2 feet 10 inches to 4 feet
-
Device Centerline from Finished Floor: 39-5/8 inches standard, adjustable from 35-5/8 inches to 49-5/8 inches
-
Center Case Dimensions: 8 inches x 2-3/4 inches x 2-3/8 inches
-
Mechanism Case Dimensions: 2-1/4 inches x 2-1/4 inches
-
Projection: Pushbar Neutral 3-13/16 inches; Pushbar Depressed 3-1/16 inches
-
Latch Bolt: Deadlocking Top & Bottom Bolt, 5/8 inches throw
-
Door Undercut: 1/4 inches maximum
-
Top & Bottom Latch Case: 4-1/2 inches x 2-1/8 inches x 1-1/2 inches
-
Vertical Rods: Adjustable rods
-
Strikes: Optional strikes available
-
Dogging Options: Includes multiple options
-
Electric Options: Several electric options are available
-
Mechanical Options: Pneumatic latch retraction available
-
Fasteners: Includes screw pack for specific door thicknesses
-
Feature: Grooved mechanism case for enhanced performance
