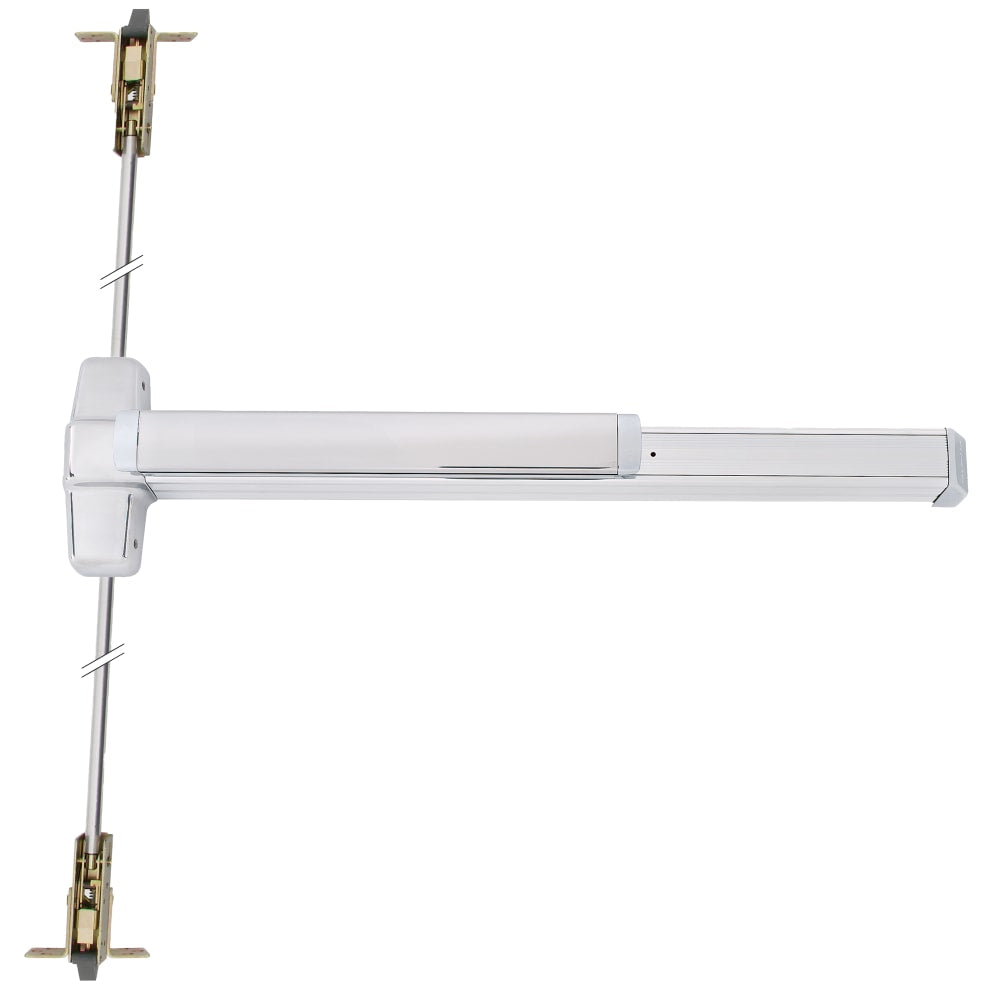

Von Duprin 9947EO-710-36 Concealed Vertical Rod Exit Device Exit Only 33 to 36 Inches Door Width

Product Description

The Von Duprin 9947EO-710-36 is a Grade 1 concealed vertical rod exit device designed for commercial use. This exit-only mechanism suits doors with widths between thirty-three inches and thirty-six inches and heights of eighty inches to one hundred inches.

• Concealed vertical rod design.
• Compatible with hollow metal, aluminum, and wood doors.
• Field reversible handing for installation flexibility.

Product Highlights

This exit device features a wide stile pushpad for ease of use and hex key dogging for securing the pushpad in place. It meets ANSI A156.3 Grade 1 standards and is UL listed for panic exit hardware, making it suitable for high-traffic areas.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Grade: Grade 1

Technical Specifications

• Device Type: Concealed Vertical Rod
• Function: Exit Only
• Door Width: 33 to 36 inches
• Door Height: 80 to 100 inches
• Hand: Field Reversible
• Dogging Options: Hex Key Dogging
• Device Length: 36 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches
