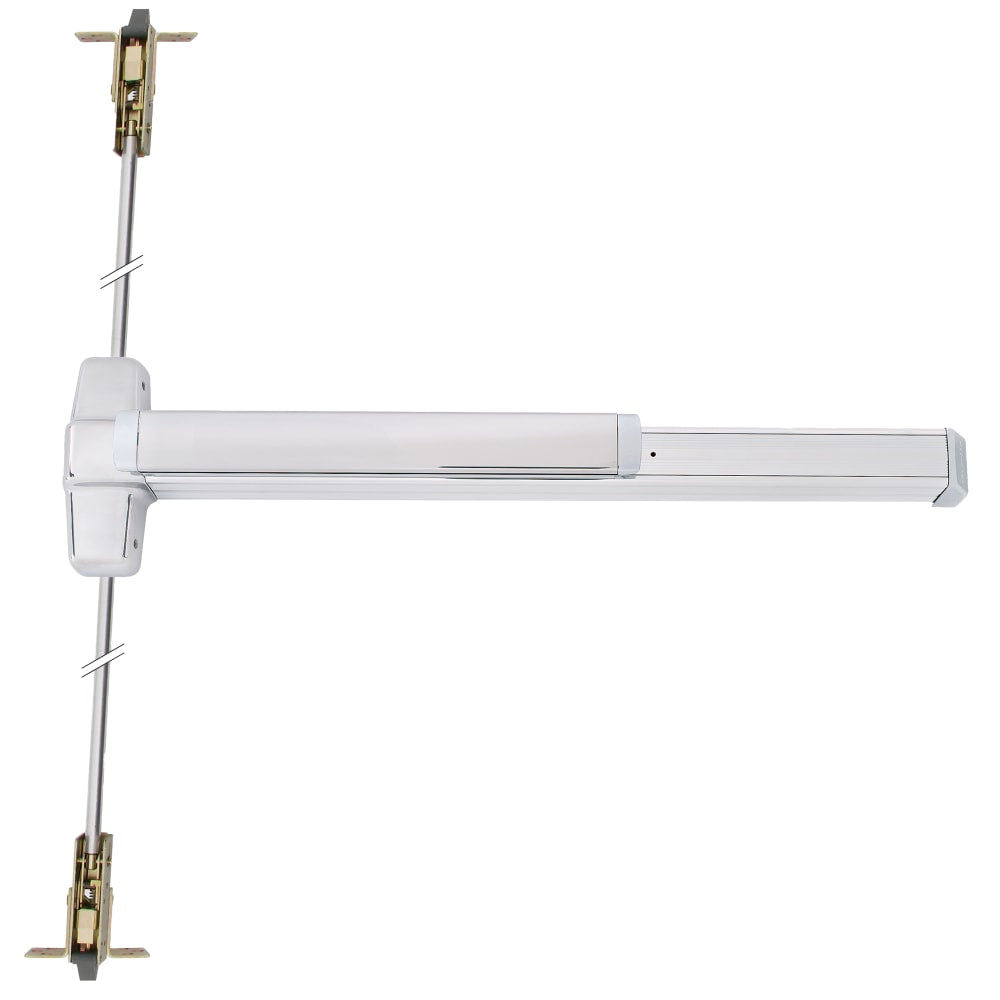

VON DUPRIN 9947EO-628-36 Concealed Vertical Rod Exit Device Exit Only 36inch

Product Description

The Von Duprin 9947EO-628-36 is a Grade 1 concealed vertical rod exit device designed for metal doors. This exit-only device offers a wide stile pushpad and is field reversible. It includes hex key dogging and adheres to UL standards for panic exit hardware, making it suitable for high-traffic commercial areas.

• Field reversible installation for flexible door setups
• Hex key dogging feature for secure locking
• UL listed for panic exit applications

Product Highlights

This device is ideal for doors measuring thirty-three to thirty-six inches wide and eighty to one hundred inches high.

Product Information

Standard Information

• Manufacturer: Von Duprin
• SKU: 9947EO 3

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• UL Listing: UL 305
• ANSI Number: A156.3
• Device Length: 36 inches
• Door Width: 28 inches to 36 inches
• Door Height: 80 inches to 100 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches
• Vertical Rods: Round 2-piece adjustable rods
• Latchbolt: Deadlocking anti-friction top & bottom bolt, 5/8-inch throw
• Dogging Feature: Half turn hex dogging standard
• Door Applications: Suitable for heavy duty metal doors
• Made in USA: Meets Buy American Act compliance
• Vendor: Allegion
