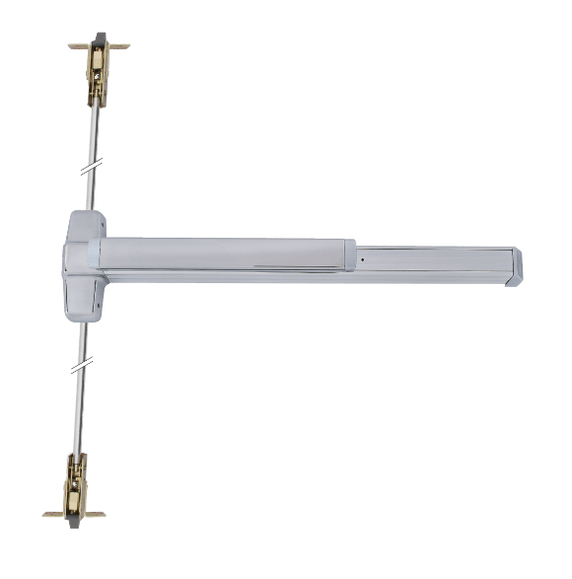

Von Duprin 9947EO-626-48 Concealed Vertical Rod Exit Device 48 Inch

Product Description

The Von Duprin 9947EO-626-48 is a concealed vertical rod exit device designed for metal doors. This product meets Grade 1 standards and is panic rated, making it ideal for high-traffic areas in institutional settings. It includes a wide stile pushpad for easy access and is compatible with doors ranging from 80 to 100 inches in height.

• Panic rated and UL listed for safety
• Adjustable top rod accommodates doors from six feet eight inches to eight feet four inches
• Designed for use with heavy-duty metal doors

Product Highlights

This exit device enhances safety and security by providing reliable egress in emergency situations. It is easy to install and adjust, making it suitable for various door heights and types.

Product Information

Standard Information

• Brand: Von Duprin
• Device Type: Concealed Rod Device

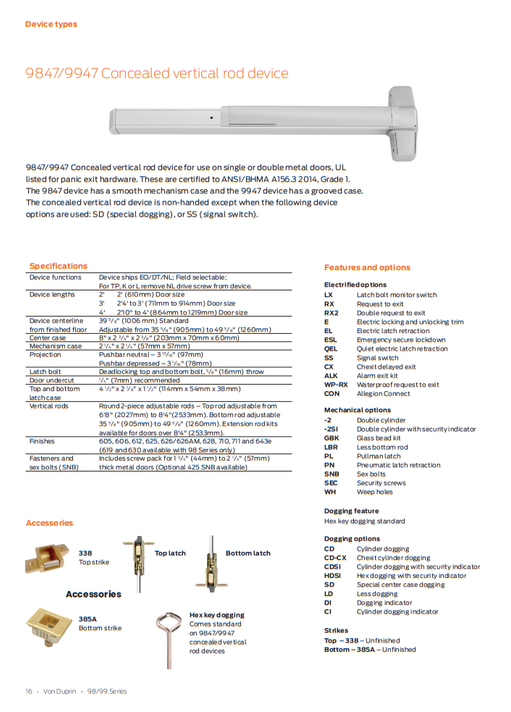

Technical Specifications

• Finishes: Available in multiple finishes including Duranodic Dark Bronze, Bright Brass, Satin Brass, Satin Bronze, Flat Black, Satin Chrome, Anodized Aluminum
• Vertical Rods: Round 2-piece adjustable rods
• ANSI Grade: Certified to ANSI A156.3-2001 Grade 1
• Latchbolt: Deadlocking anti-friction top and bottom bolt with 5/8-inch throw
• Door Applications: Fits doors one and three-quarter inches to two and one-quarter inches thick
• Function: Exit Only
• Dogging Feature: Hex key dogging standard
• Door Width: 48 inches
• Center Case: Measures 8 inches by 2 and three-quarters inches by 2 and three-eighths inches
