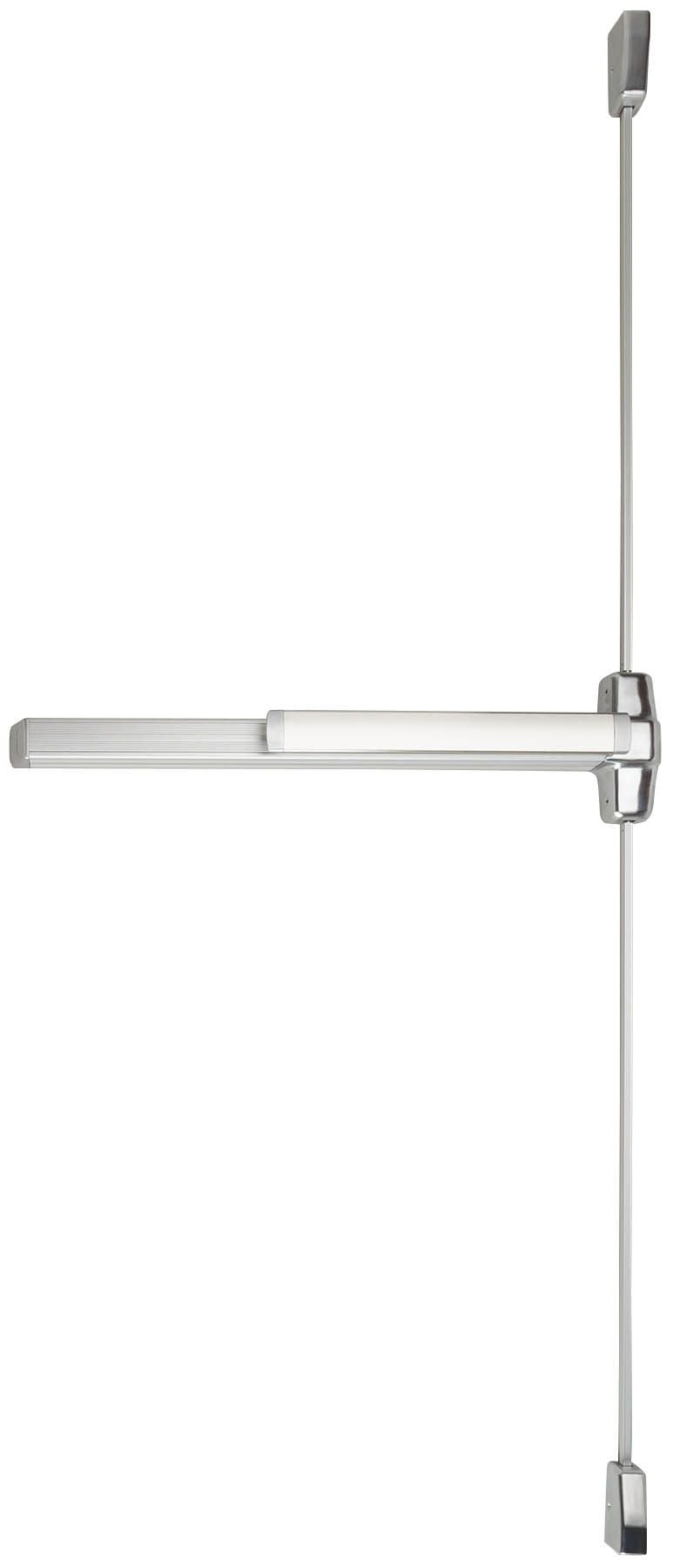

Von Duprin 9927EOF26D3 Surface Vertical Rod Exit Device

Product Description

The VON DUPRIN 9927EOF26D3 is a fire-rated surface vertical rod exit device designed for commercial door applications requiring code-compliant egress hardware. This grooved-case unit features a 626 Satin Chrome finish and is built for 3-foot door widths. It operates via vertical rods that extend to engage both top and bottom latching points, securing the door leaf while allowing immediate single-motion exit. Licensed locksmiths, door hardware specialists, and commercial contractors typically specify and install this device in high-traffic public buildings where fire-rated exit control is required by code.

This exit device is suited for interior or exterior fire-rated single doors in commercial and institutional settings such as schools, hospitals, office buildings, and public facilities. The surface-mounted vertical rod configuration makes it appropriate for doors where concealed vertical rod installation is not feasible. The grooved case profile accommodates specific frame and door prep conditions common in commercial construction.

Key Features

• Fire-rated construction for use on listed fire door assemblies
• Surface vertical rod design engages top and bottom latching points in a single push motion
• Grooved case profile for compatible door and frame conditions
• 626 Satin Chrome finish for corrosion resistance and aesthetic compatibility with standard commercial hardware
• Sized for 3-foot door width applications
• Sold as individual unit (each)

Compatibility

Designed as an OEM-style replacement or new-installation exit device for fire-rated commercial single doors requiring a surface vertical rod configuration with a grooved case on 3-foot door widths.

Installation Notes

Installation should be performed by a licensed door hardware technician or commercial contractor familiar with applicable fire code and life-safety requirements, including NFPA 101 and local building codes. Verify fire label listings on both the door and frame before installation to ensure the assembly maintains its fire rating. Disconnect any electronic access control or alarm integration at the panel before beginning work. Follow the manufacturer's template and instruction sheet for accurate rod and case positioning to ensure proper latching engagement.
