VON DUPRIN 9927EO-F-626-48 Fire Rated Surface Vertical Rod Device 48 inches x 84 inches

Product Description

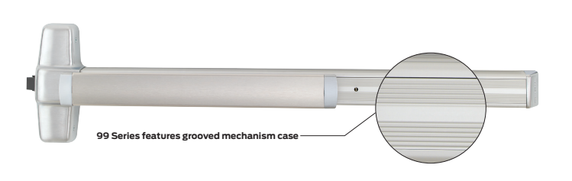

The VON DUPRIN 9927EO-F-626-48 is a grade 1 fire-rated surface vertical rod exit device designed for safety and reliability in fire-rated applications. This exit-only device is constructed with a grooved case and features hex key dogging, making it easy to operate. It is field reversible and suitable for doors ranging from 48 inches wide and 84 inches high, ensuring effective emergency egress.

• Grade 1 surface vertical rod exit device
• Fire rated and field reversible
• Robust construction for safety

Product Highlights

This device offers a proven solution for secure and efficient emergency exits in commercial and industrial settings.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Door Size: 48 inches x 84 inches

Technical Specifications

• Device Lengths: 48 inches
• Device Centerline from Finished Floor: thirty-nine and five-eighths inches (1006 mm)
• Center Case Size: eight inches x two and three-fourths inches x two and three-eighths inches (203mm x 70mm x 60mm)
• Mechanism Case Size: two and one-fourth inches x two and one-fourth inches (57mm x 57mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt with a sixteen millimeter throw
• Vertical Rods: one-half inch square tubing
• Finishes Available: Bright Brass, Satin Brass, Satin Bronze, Bright Chrome, Satin Chrome
