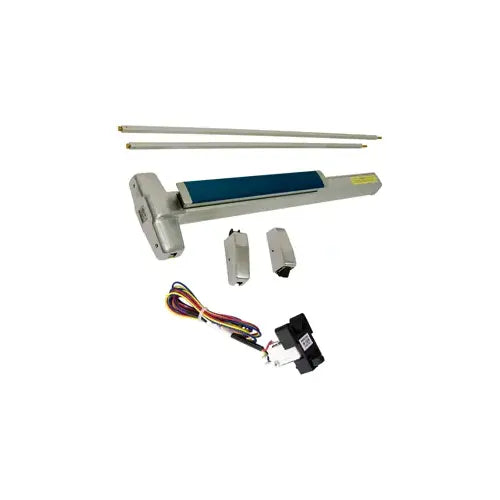

Von Duprin 9927EO-F-626-36 Fire-Rated Surface Vertical Rod Exit Device

Product Description

The Von Duprin 9927EO-F-626-36 is a grade 1 surface vertical rod exit device crafted for heavy-duty performance. This fire-rated device is suitable for doors up to eighty-four inches in height and designed specifically for exit-only situations without trim or dogging. It meets UL certification standards making it an ideal choice for high-security environments like schools, hospitals, and government buildings.

• Grade 1 Surface Vertical Rod Exit Device
• Fire-rated for pairs of doors up to eight feet by ten feet
• UL listed for fire exit hardware with A or B label rating (up to three hours)

Product Highlights

The Von Duprin 9927EO-F-626-36 provides reliable egress solutions while ensuring safety compliance in demanding applications.

Product Information

Standard Information

• Brand: Von Duprin
• Usage: Heavy Duty

Technical Specifications

• Fire Rating: UL listed A or B label (three hours)
• Door Applications: One and three-fourth inch thick fire-rated doors
• Device Type: Surface Rod Device
• Lengths Available: Three feet (two feet four inches to three feet), four feet (three feet one inch to four feet)
• Centerline from Finished Floor: thirty-nine and five-eighths inches (one thousand six millimeters)
• Vertical Rods: Standard rods accommodate doors up to seven feet
• Top and Bottom Latch Case Dimensions: Four and one-half inches by two and one-eighth inches by one and one-half inches
• Projections: Pushbar neutral three and thirteen-sixteenths inches, pushbar depressed three and one-sixteenth inches
