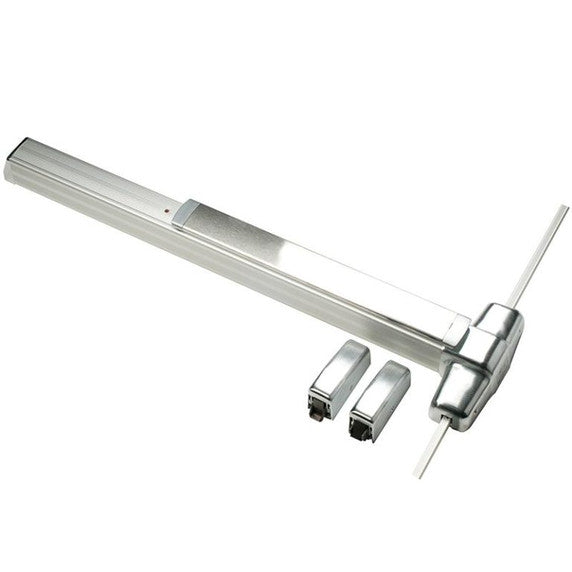

VON DUPRIN 9927EO-711-36 SVR Surface Vertical Rod Exit Device Exit Only 36

Product Description

The VON DUPRIN 9927EO-711-36 is a surface vertical rod exit device designed for exit-only use. This model is field reversible, making it versatile for various door types including aluminum, hollow metal, and wood. It features hex key dogging for security and a push bar style for straightforward operation.

• Field reversible design for easy installation
• Exit-only functionality
• Compatible with aluminum, hollow metal, and wood doors

Product Highlights

Ideal for commercial applications that require a reliable exit mechanism, ensuring safety and compliance with exit requirements.

Product Information

Standard Information

• Door Type: Aluminum, Hollow Metal, Wood
• Function: Exit Only

Technical Specifications

• Handing: Field Reversible
• Door Width: 36 inches
• Exit Device Type: SVR - Surface Vertical Rod
• Dogging: Hex Key
• Bar Style: Push Bar
• Device Functions: EO - Exit Only
• Device Lengths: Three feet to four feet (711mm to 914mm)
• Device Centerline from Finished Floor: Thirty-nine and five-eighths inches (1006 mm)
• Center Case Dimensions: Eight inches x two and three-eighths inches x two and three-eighths inches (203mm x 70mm x 60mm)
• Latch Bolt: Deadlocking anti-friction bolt with five-eighths inch (16mm) throw
