VON DUPRIN 9927EO-710-36 Surface Vertical Rod Device Exit Only

Product Description

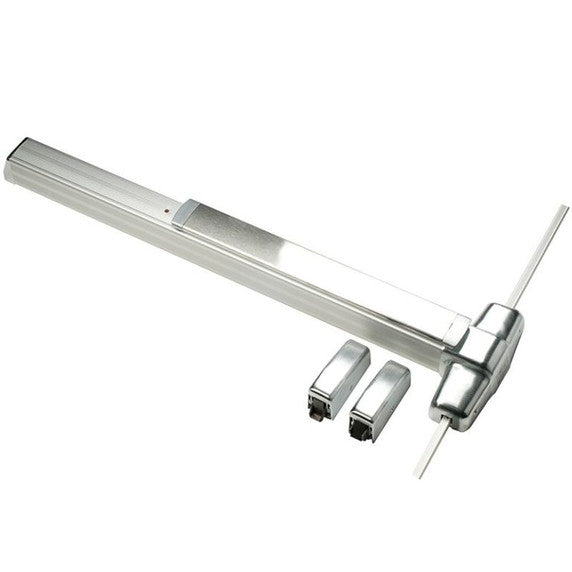

The VON DUPRIN 9927EO-710-36 is a grade 1 surface vertical rod device specifically made for exit-only use. This unit is fitted with hex key dogging and offers a reversible feature for versatile installation. It is suitable for doors ranging from two feet four inches to three feet and two feet ten inches to four feet in width. The grooved mechanism case enhances durability and functionality.

• Grade 1 surface vertical rod device
• Designed for exit-only applications
• Hex key dogging feature for security

Product Highlights

This product is ideal for emergency exits, ensuring reliable, secure access control in commercial buildings.

Product Information

Standard Information

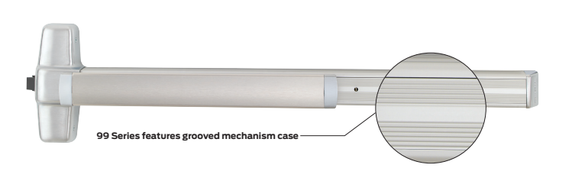

• Series: 99 - Grooved Case
• Device Type: Surface Vertical Rod

Technical Specifications

• Trim Function: No trim - Exit Only
• Dogging Options: Hex Key Dogging (Non Fire Rated)
• Device Functions: EO - Exit Only
• Device Lengths: 3' (2'4inch to 3') / 4' (2'10inch to 4')
• Device Centerline: 39 5/8inch (1006 mm) from finished floor
• Center Case Dimensions: 8inch x 2 3/4inch x 2 3/8inch (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4inch x 2 1/4inch (57mm x 57mm)
• Projection: Pushbar neutral Ø 3 13/16inch (97mm) / Pushbar depressed Ø 3 1/16inch (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8inch (16mm) throw
• Door Undercut: 1/4inch (7mm) recommended
• Top and Bottom Latch Case Dimensions: 4 1/2inch x 2 1/8inch x 1 1/2inch (114mm x 54mm x 38mm)
• Vertical Rods: 1/2inch square tubing, standard rods fit 7' (2134mm) doors
• Finishes Available: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, and more
