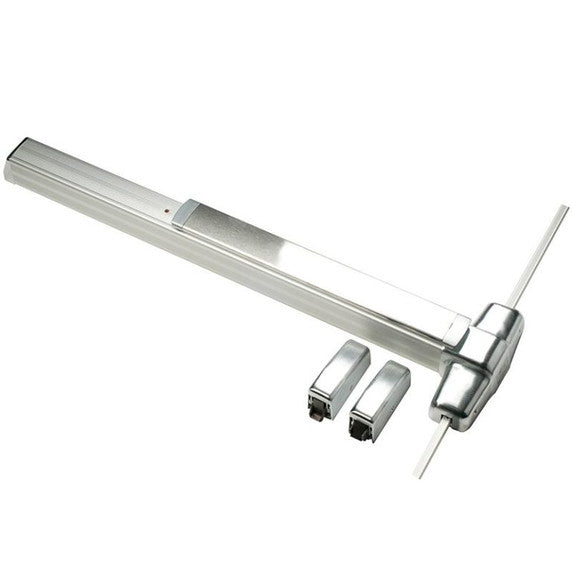

VON DUPRIN 9927EO-626-48 Surface Vertical Rod Device Exit Only

Product Description

The VON DUPRIN 9927EO-626-48 is a grade 1 surface vertical rod device designed specifically for exit-only applications. This device features hex key dogging and is field reversible, making it versatile for various installations. It is suitable for doors ranging from two feet four inches to four feet wide, ensuring reliable operation and security.

• Grade 1 Surface Vertical Rod Device
• Exit Only functionality
• Field Reversible

Product Highlights

The VON DUPRIN 9927EO-626-48 delivers performance in exit-only situations, enhancing safety and security in public and commercial spaces.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Device Lengths: 3 feet, 2 feet 4 inches to 3 feet

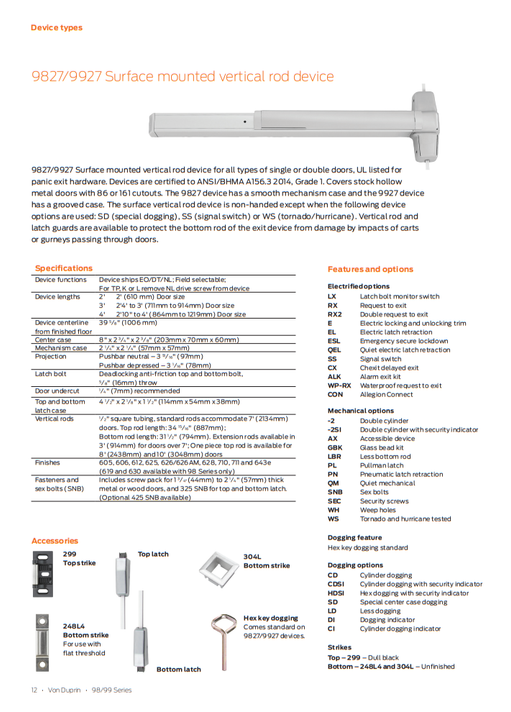

Technical Specifications

• Door Size: 2 feet 10 inches to 4 feet
• Centerline from Finished Floor: 39 5/8 inches (1006 mm)
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches (203 mm x 70 mm x 60 mm)
• Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches (57 mm x 57 mm)
• Projection: Pushbar neutral Ø 3 13/16 inches (97 mm), Pushbar depressed Ø 3 1/16 inches (78 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8 inches (16 mm) throw
• Recommended Door Undercut: 1/4 inches (7 mm)
• Top and Bottom Latch Case Dimensions: 4 1/2 inches x 2 1/8 inches x 1 1/2 inches (114 mm x 54 mm x 38 mm)
• Vertical Rods: 1/2 inches square tubing, standard rods accommodate 7 feet doors
• Top Rod Length: 34 15/16 inches (887 mm); Bottom Rod Length: 31 1/2 inches (794 mm)
• Extension Rods: Available in 3 feet for doors over 7 feet
