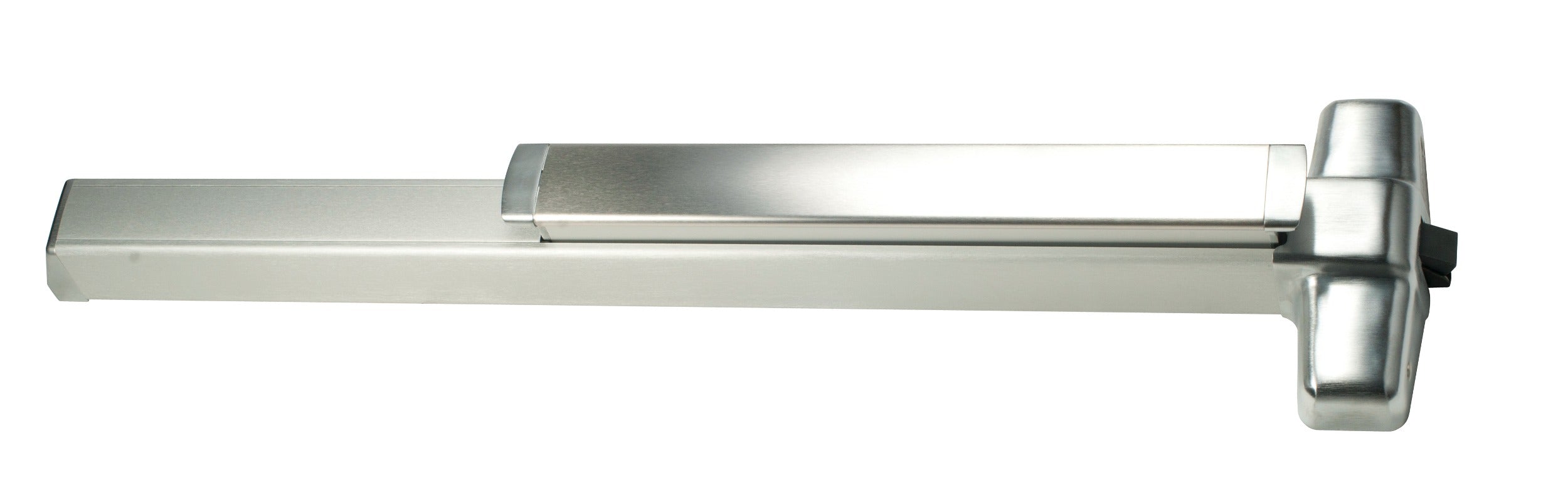

Von Duprin 98EOF26D4 Fire Rated Rim Exit Device 626 Satin Chrome

Product Description

The VON DUPRIN 98EOF26D4 is a fire-rated rim exit device designed for use on single doors in commercial and institutional buildings. Finished in 626 Satin Chrome, this smooth-case unit spans 48.75 inches in length and provides reliable, code-compliant egress in emergency situations. The device mounts to the door surface and actuates a rim latch upon push-bar activation, allowing fast single-motion exit. At 15 pounds, the unit is built for long-term durability in high-traffic applications. Installation is handled by licensed locksmiths or qualified door hardware technicians.

This exit device is suited for commercial, institutional, and public-occupancy buildings where fire-rated exit hardware is required by code. Common install locations include school corridors, hospital wings, office buildings, and government facilities. The smooth case profile reduces snagging hazards in environments with heavy pedestrian movement. The 626 Satin Chrome finish is widely specified in commercial construction for corrosion resistance and aesthetic consistency with standard hardware sets.

Key Features

• Fire-rated rim exit device construction for code-compliant emergency egress
• 48.75-inch bar length accommodates standard 4-foot door applications
• 626 Satin Chrome finish for corrosion resistance and broad architectural compatibility
• Smooth case design minimizes snag points in high-traffic corridors
• Rim-mount configuration installs directly to door face without mortise cutout
• Sold individually as a single assembly unit

Compatibility

Designed as an OEM-style fire-rated rim exit device for commercial single-door applications requiring a 4-foot smooth-case bar assembly with 626 Satin Chrome finish.

Installation Notes

Installation should be performed by a licensed locksmith or certified door hardware professional familiar with NFPA 80 requirements for fire-rated door assemblies. Ensure the door and frame are verified as fire-rated before mounting this device, as the assembly must maintain the door's listed fire rating. Disconnect any electronic access control wiring before servicing or replacing the device. Follow the manufacturer's installation template and applicable local building codes for exit hardware mounting height and projection.
