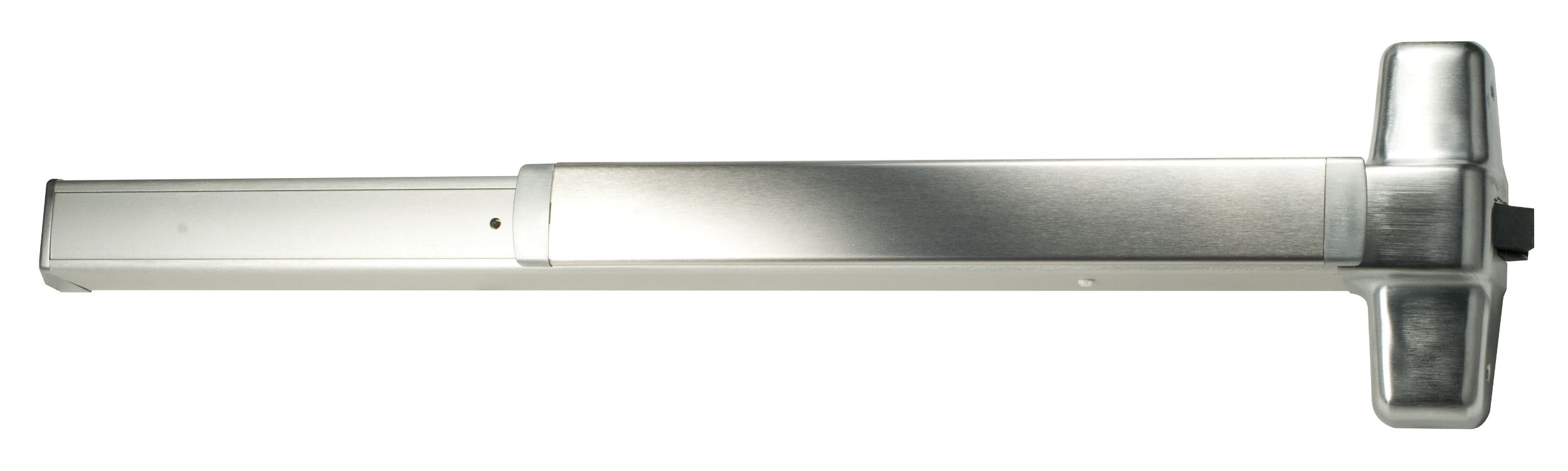

Von Duprin 98EO26D3 Rim Exit Device 626 Satin Chrome

Product Description

The VON DUPRIN 98EO26D3 is a rim-mount smooth case exit device finished in 626 Satin Chrome, designed for single-door egress applications in commercial and institutional buildings. The device spans 36.6 inches in length, making it suitable for standard 3-foot door leafs. It operates as a rim device, meaning the latch mechanism mounts to the face of the door rather than into the door edge, simplifying installation on hollow metal and aluminum doors. Licensed locksmiths, door hardware specialists, and commercial contractors typically supply and install this hardware in compliance with local life-safety codes.

This exit device is intended for commercial facilities where code-compliant egress hardware is required, including schools, healthcare buildings, office complexes, and other public occupancies. The smooth case profile presents a clean appearance suited to high-traffic corridors and public-facing entryways. The 626 Satin Chrome finish provides corrosion resistance appropriate for interior applications. The unit ships individually and is also available in case quantities of 3.

Key Features

• Rim-mount design installs on the face of the door without edge preparation
• Smooth case profile for a clean, low-profile appearance
• 626 Satin Chrome finish for corrosion resistance and aesthetic consistency
• 36.6-inch length fits standard 3-foot door openings
• Sold individually (EA sales unit)

Compatibility

Designed as an OEM-style rim exit device for standard commercial single-door applications requiring code-compliant egress hardware.

Installation Notes

Installation should be performed by a licensed door hardware technician or commercial contractor familiar with NFPA 101 life-safety egress requirements. Disengage all electrical access control connections and verify the door is in a safe, held-open position before mounting or adjusting the device. Use manufacturer-supplied fasteners and verify latch projection and dogging function after installation. Do not modify the case or latch components in the field.
