VON DUPRIN 98EO-F Rim Fire Exit Device Exit Only 36inch

Product Description

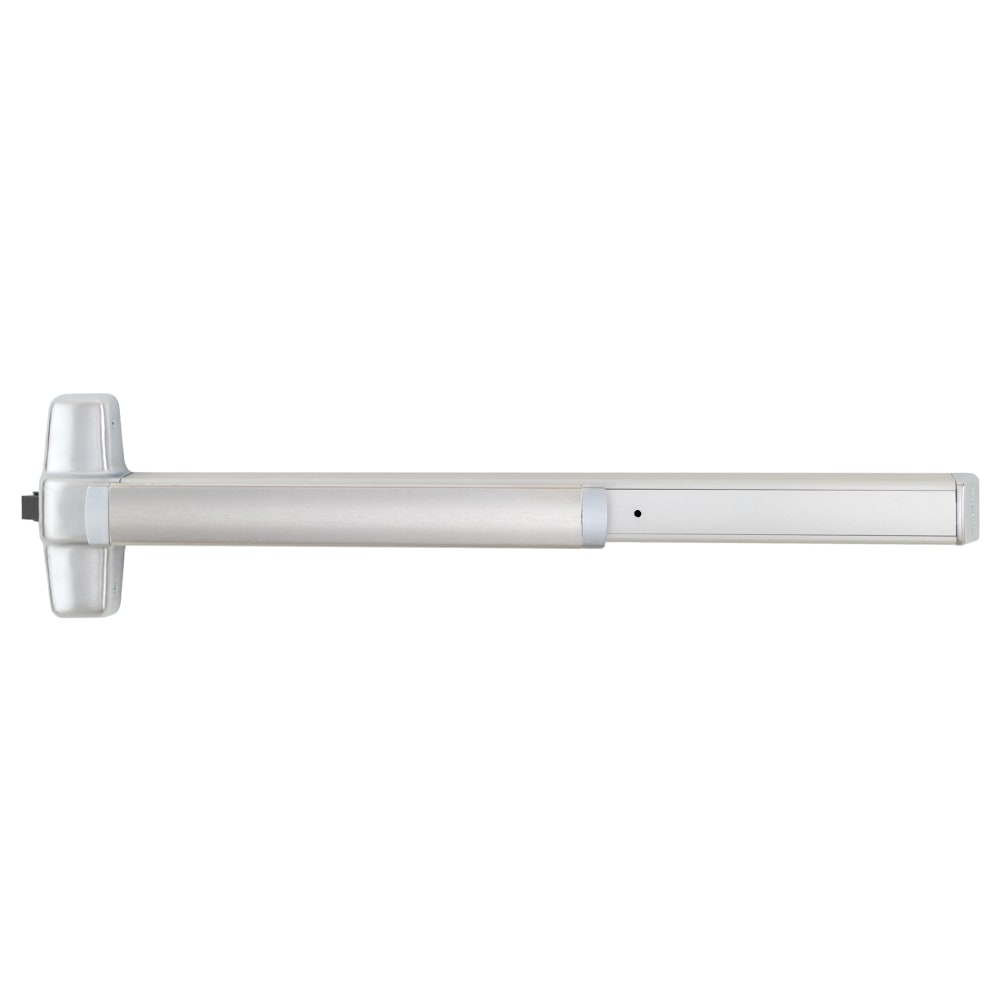

The Von Duprin 98EO-F Rim Fire Exit Device is a durable exit device suitable for both single and double doors. This Grade 1 device is designed specifically for exit-only use and can be field selected. It comes with a screw pack for installation on doors that are one and three-quarters inches or two and one-quarter inches thick, made from either metal or wood.

• Wide stile pushpad
• Exit only functionality
• Less dogging mechanism

Product Highlights

The Von Duprin 98EO-F offers reliability and ease of installation for commercial applications.

Product Information

Standard Information

• Brand: Von Duprin
• Unit of Measure: Each

Technical Specifications

• MPN: 98EO-F
• Grade: Grade 1
• Installation: Commercial
• UL Listing Type: UL 10C
• ANSI Number: A156.3
• Fire Rated: Yes
• Device Length: 36 inches or 48 inches
• Door Width: 28 inches - 36 inches or 34 inches - 48 inches
• Door Thickness: 1-3/4 inches - 2-1/4 inches

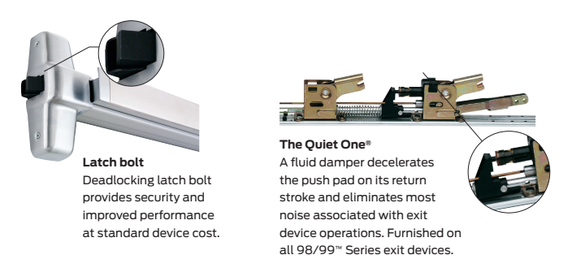

• Latch Bolt: Deadlocking, 3/4 inch throw
• Projection: Pushbar neutral 3 13/16 inches, Pushbar depressed 3 1/16 inches
