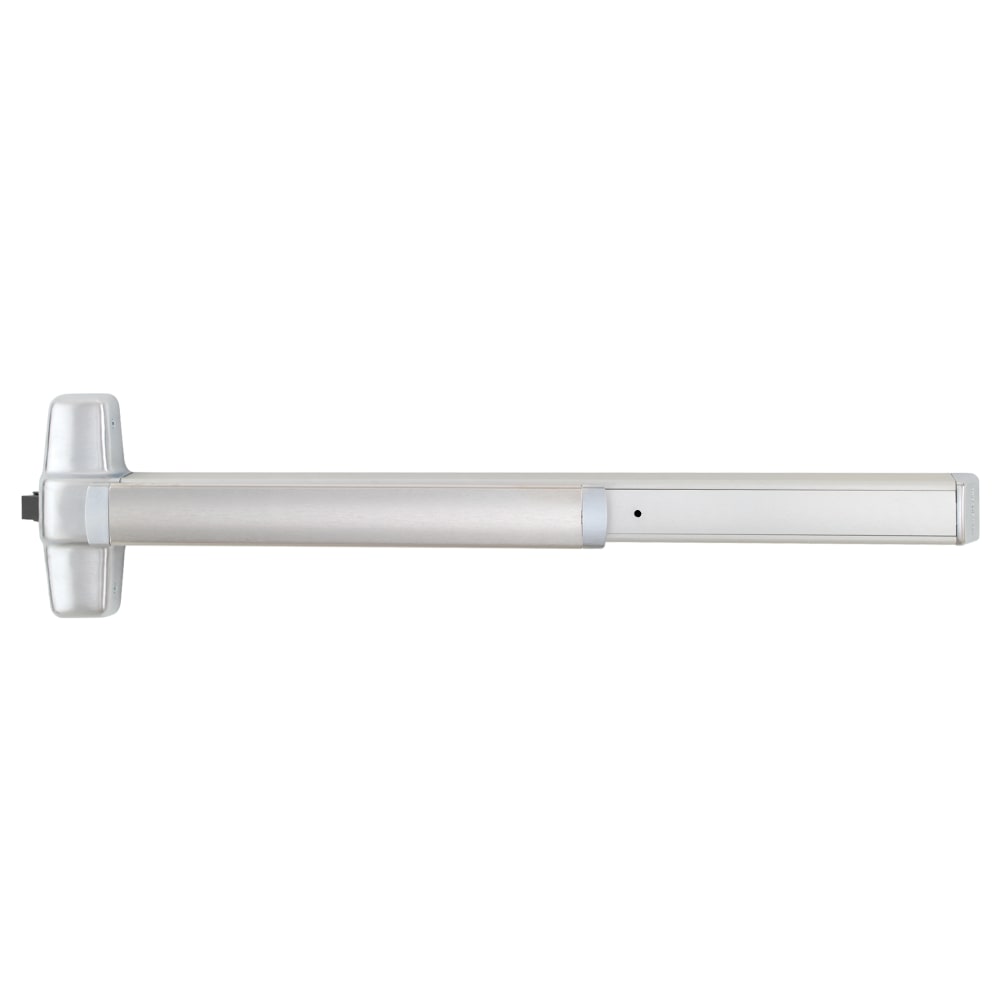

Von Duprin 98EO-F Fire Rated Rim Panic Device, Exit Only, Smooth Case

Product Description

The Von Duprin 98EO-F is a grade 1 rim exit device with exit-only functionality. This fire-rated device is non-handed, making it suitable for various single and double door applications. It accommodates door sizes from two feet four inches to three feet and two feet ten inches to four feet.

• Grade 1 rated for durability
• Fire-rated for added safety
• Non-handed design allows for flexibility in installation

Product Highlights

The Von Duprin 98EO-F features a smooth mechanism case that enhances its operational efficiency while maintaining high safety standards.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Manufacturer: Von Duprin

Technical Specifications

• Device Lengths: 36 inches, accommodates door sizes from 2 feet 4 inches to 3 feet (711mm to 914mm), and 2 feet 10 inches to 4 feet (864mm to 1219mm) door size
• Device Centerline: 39 13/16 inches (1011mm)
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)

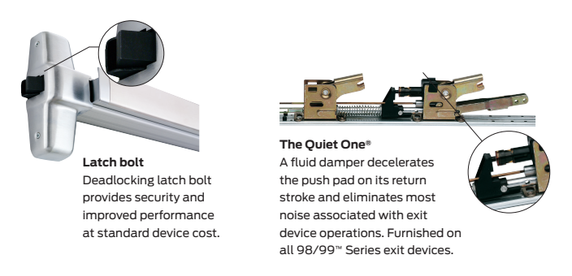

• Latch Bolt: Deadlocking, 3/4 inch (19mm) throw
• Door Material: Suitable for metal or wood doors
• Door Thickness: 1 3/4 inches to 2 1/4 inches
