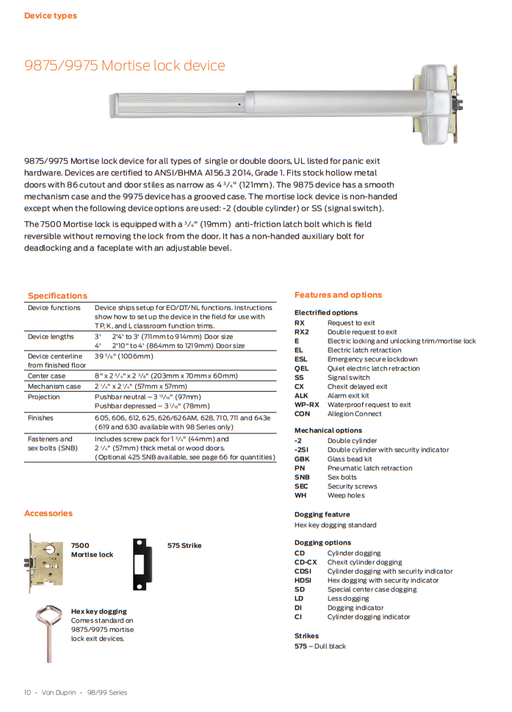

Von Duprin 9875EO-F-626-48 Mortise Lock Fire Exit Device

Product Description

The Von Duprin 9875EO-F-626-48 is a mortise lock fire exit device designed for exit-only applications. This Grade 1 device is suitable for use in commercial settings and features a reversible installation design. The device is built for durability and ease of use.

• Grade 1 Mortise Exit Device
• Reversible Field Installation
• Less Dogging Required

Product Highlights

The Von Duprin 9875EO-F-626-48 offers reliable performance for emergency exit situations.

Product Information

Standard Information

• Device Function: EO - Exit Only
• Door Size Compatibility: For doors ranging from three feet to four feet in width

Technical Specifications

• Device Lengths: 3 feet (711mm) to 4 feet (1219mm)
• Centerline Height: 39 13/16 inches (1011mm)
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/4 inches (203mm x 70mm x 60mm)

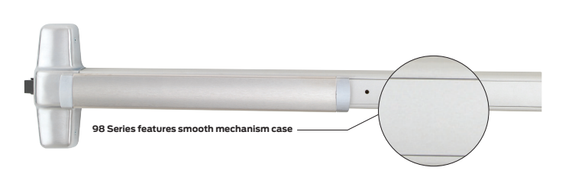

• Mechanism Case Size: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection Depth: Pushbar neutral - 3 13/16 inches (97mm), depressed - 3 1/16 inches (78mm)
• Available Finishes: Bright Brass, Satin Brass, Satin Bronze, Bright Chrome, Satin Chrome, Satin Aluminum, Dark Bronze, Black Anodized Aluminum, Aged Bronze
• Included Fasteners: Screw pack for 1 3/4 inches (44mm) and 2 1/4 inches (57mm) thick doors
