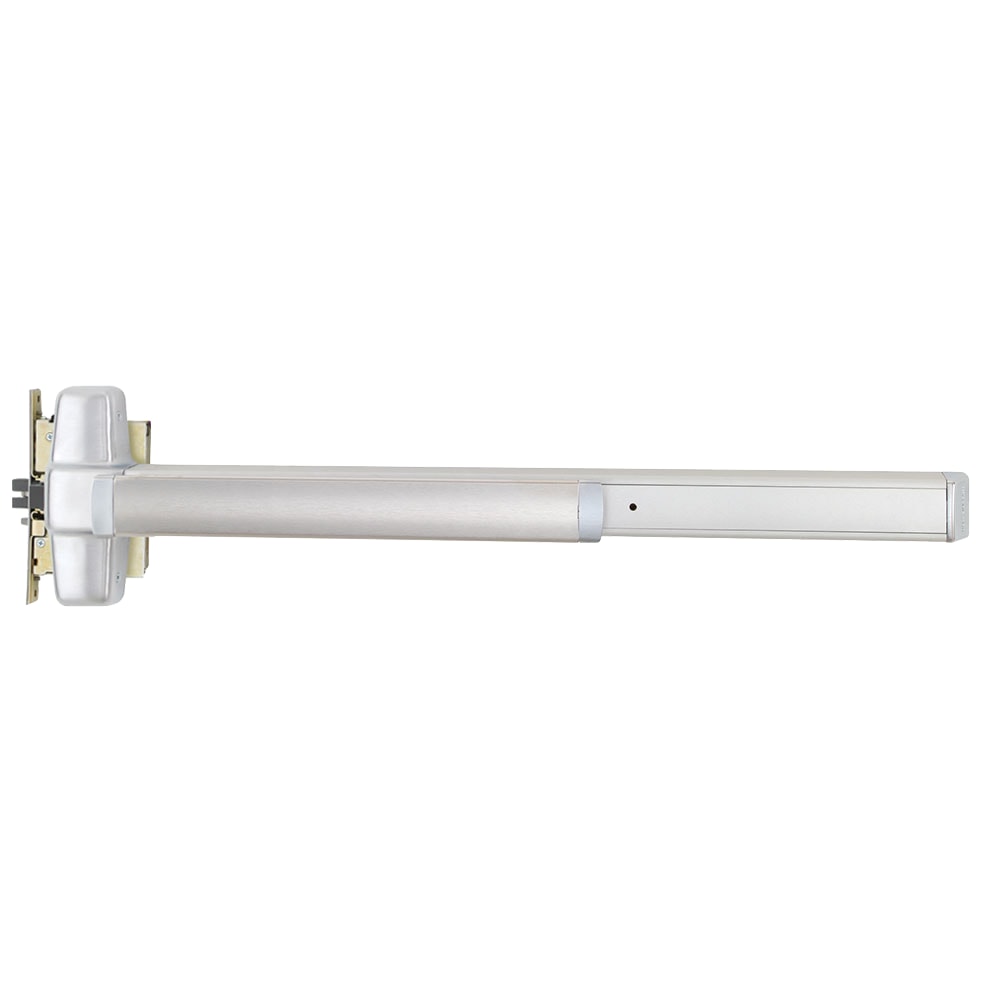

VON DUPRIN 9875EO-626-36 Mortise Lock Exit 36 inches

Product Description

The Von Duprin 9875EO-626-36 Mortise Lock Exit is a reliable locking solution for both single and double doors. It meets the UL standards for panic exit hardware, ensuring safety in emergency situations. This device is ANSI A156.3 Grade 1 compliant and is compatible with stock hollow metal doors that have an 86 cutout, fitting door stiles that are as narrow as four and three-quarters inches.

• Fire Rated
• Grade 1 compliance
• Non-handed design

Product Highlights

This mortise lock exit device is engineered for durability and ease of use. Its mechanical function is specifically for exit purposes, enhancing safety in commercial settings.

Product Information

Standard Information

• Installation: Commercial
• Origin: USA

Technical Specifications

• Alternate Part Number: 178588
• Grade: Grade 1
• UL Listing Type: UL 305
• ANSI Number: A156.3 2014
• Limited Warranty: 3 Years
• Device Type: Mortise
• Mechanical Function: Exit Only
• Device Length: 36 inches
• Minimum Stile Size: 4-3/4 inches
• Door Material: Wood or Metal
• Door Width: 28 inches to 36 inches
• Door Thickness: 1-3/4 inches - 2-1/4 inches
• Reversible: Yes
• Center Case Dimensions: 8 inches x 2-3/4 inches x 2-3/8 inches
